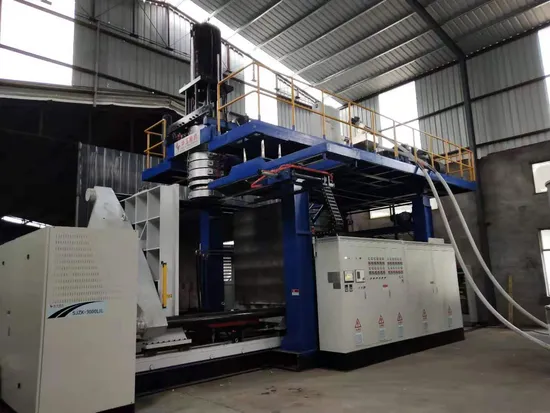

Huayu 2000L 3layers Plastic Water Tank HDPE Extrusion Blow Molding Machine

Huayu 2000L 3layers Plastic Water Tank HDPE Extrusion Blow Molding Machine

US$200,000.00-450,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
HYBM2000-3
Raw Material
HDPE
Making Method of Parison
Extrusion-Blow Molding
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
After-sales Service
12 Months
PLC
Siemens
Motor
Siemens
Driver
Siemens
Gearbox
Guomao
Thickness Control
Moog
Transport Package
Packaged
Specification
1000L
Trademark
HUAYU
Origin
China
HS Code
8480790090
Production Capacity
40set

Product Description


Product Description
1.Gearbox:plastic machine specially use harded gear ,long life and low noise .
2.screw barrel:special designed screw can ensure the material plasticizing uniform and efficient,
with heating and cooling device, ensure the stability of the plastic melting temperature.
3.diehead:designed by ourselves and get the patent
4.clamping system:smooth running, no noise; the clamping force is big
5.blow unit:with pre-blowing function, air blowing pin independent design which relize convenient replacement and multiply usage
6.main Hydraulic station:Servo motor, less energy consumption, high efficiency, low noise
7.servo station:thickness controller, response speed, control accuracy.thickness change curve is shown, adjust simple and intuitive.
8.frame of machine:Frame lifting can make the mould installation easily , The highest degree of avoid rough edge
9.heating system:Heating automatic control temperature;Electrical system is equipped with overload, overheating protection function


Product Parameters
Basic Specification
brand
applicable material HDPE ·
China·HUAYU
·
China·huayu
capacity range 500-2000L,3layers
total weight 66T
Voltage Pending
total power 443kw
average power 280kw
Machine dimension (L*W*H) 8.5*9.5*7
productivity 10-24pcs/h

Certifications

Packaging & Shipping
Inspection of machine Inspection time The seller informs the buyer 2 weeks prior to the machine manufacture completion. And all the inspection time last for 3 to 5 days. Inspection standard & Process All the inspection work should be performed as the technical configurations and parameters which are stipulated in the contract.
Packaging & Shipping marks Packaging The machine will be disassembled into many parts for container transportation. The seller is responsible for packing and fixing all these parts in container well according to their own experience. Shipping marks The seller tags the shipping marks on machine parts as the buyer's request.
Company Profile
Weifang Huayu Plastic Machinery Co. Ltd. was founded in 2002, a manufacturer specialized in super large automatic blow moulding machines. The company intergrates the leading technique and concept at home and abroad, formed his own design, produce, sale and after-sale system in the field of large automatic blow moulding machine for one to six layers products.
The machines' products are including any kinds of plastic tanks and drum (from 20L to 20,000L ) , tool box, car roofs, car oil tank, pellet, rice transplanter float, road block, advertising wall and so on. The machine is famous for his good quality, stable performance as well as high cost-effective. It's not only well sold in China domestic market, but also in great demand in India, Southeast Asia, Saudi Arabic, South America, Africa etc. and gain a great reputation abroad.
Recently the company breaks through in multilayer accumulator technique and fill several gaps in domestic blow moulding field. All the staff in the company are endeavoring all their efforts in research and developments and to build a globe brand, giving the best products and service to all the customers.

Our Advantages

After Sales Service
After-service & Quality guarantee After-service Installation time The buyer provides the seller invitation letter for visa applying once the machine to be shipment. The seller dispatches one engineer and one English interpreter to buyer's factory once the machine arrive buyer's factory or as the buyer's request. Installation cost Installation is free for 15 days. If the buyer need more time, the service will be charged. Besides, the buyer should provide the round tickets, room and board etc. Technical support during the warranty period During the warranty period: The seller will provide the technical support and supply the needed parts with the cost price if there is any problem does not influence the regular production. If needed, the seller will dispatch engineer and translator to the buyer's factory to deal with the problem. During the service period, the buyers need to pay for the travel expenses, tickets, accommodation fee and the other charges except the labor charges. If the problem has influenced the regular production, the seller must provide the solution without charge immediately.
Technical support after the warranty period After the warranty period: The seller will provide the technical consulting without charge and supply the needed parts with the cost price. If needed, the seller will dispatch engineer and translator to the buyer's factory to deal with the problem. During the service period, the buyers need to pay for the travel expenses, tickets, accommodation fee and the other charges as well as USD $200 per one person as the labor charges. Quality guarantee Quality assurance The seller promises to provide good-quality brand new products with eligible material according to the contract requirements on quality, specification and property. Free guarantee term The free charge guarantee term is 12 months after the installation and adjustment in the buyer's factory. The guarantee is limited to the quality of machine. Malfunction and damage of the machine caused by the improper usage, man-made damage and modification without the seller's allowance , is not under warranty..
FAQ
1. who are we?We are based in Shandong, China, start from 2002,sell to Domestic Market(50.00%),South Asia(30.00%),Africa(10.00%),South America(5.00%),Mid East(5.00%). There are total about 101-200 people in our office.2. how can we guarantee quality?Always a pre-production sample before mass production;Always final Inspection before shipment;3.what can you buy from us?Large Blow Moulding Machine4. why should you buy from us not from other suppliers?Our company focus on blow moulding machine almost 20 years exprience.We focus on large blow moulding machine.Our team leading science and technology in this feild.Our company can make 20-20000L and1-8 layers blow moulding machine.5. what services can we provide?Accepted Delivery Terms: FOB;Accepted Payment Currency:USD,CNY;Accepted Payment Type: T/T,L/C;Language Spoken:English,Chinese,German
