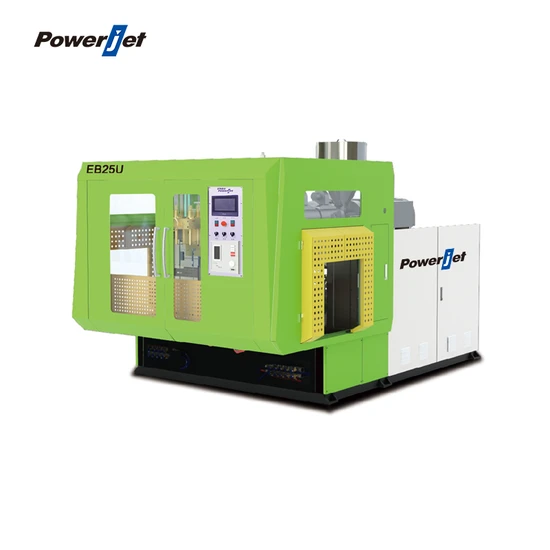

Advanced Dual-Station Blow Molding Machine for HDPE Bottles

Advanced Dual-Station Blow Molding Machine for HDPE Bottles

US$42,000.00
1-4 sets
US$29,000.00
5+ sets

Basic Info.

Model NO.
EB70U
Automation
Automatic
Certification
CE, ISO9001:2008
Clamping Force (kN)
110
Output (Kg/H)
120 Kg/H
Accumulator Capacity(L)
130 L
Die Head Heating Power(Kw)
11 Kw
Screw Heating Power(Kw)
21 Kw
Mold Platen Size(Height)(mm)
440 mm
Screw L/D Ratio
24
Power(W)
24.5kw
Extruder Motor Power(Kw)
30 Kw
Voltage
380V
Screw Diameter (mm)
85 mm
Mold Platen Size(Width)(mm)
580 mm
Power (Kw)
30
Hollow Part Volume
7
Trademark
Powerjet
Origin
Guangdong, China

Product Description

Products Description
TECHNOLOGY 1.Die-head
2.Linear displacement transducer used to control the clamping units' movement
3.Parallel clamping units
4.Central supporting frame for the mold 5.Speed control valves for mold's movement 6.Imported hydraulic components
7.Imported solenoid valve
8.Blowing units 9.Extrusion system
FEATURES:
1:Toggle balance clamping structure, with platen opening & clamping and mold platen movement by linear guide, to achieve low friction and high speed.
2:Based on the Finite Element Analysis design, and platen, toggle and platen frame made in high intensity nodular cast iron.
3:High speed mold clamping oil cylinder with differential speed function, and high speed mold moving cylinder with special anti-shock cushion valve structure.
4:Specially designed to screw with high L/D ratio insures good plasticizing and stable extrusion; high precision and no part line die head guarantees customers' top quality requirement.
5:Multi-screw & multi-die head can be adopted to improve the quality of the product and lower down the cost of material.
6:Multiple-way PID controlled temperature heating is precise and stable.
Template hydraulic drive automatic translation
Dual proportional control of pressure & flow

Special reducer valve, accurate positioning shift mode, no impact
Humanized touch screen, easy to master and operate
1.Rotary Trimming Equipment 2.Auto Deflashing Equipment 3.Rotary Trimming Configuration 4.Die Head 5.Optional for all Accessory Equipment 6.Mould 7.Parison Controller
Product Paramenters
Model
Unit
EB25U70S
Max. Product
L
2.5
Clamping Force
kN
60
Max. Mold Size(W x H)
mm
380x 440/430x340
Screw Diameter
mm
70
Screw L /D Ratio
L/D
25
Screw Rotary Speed
rpm
65
Extrusion Weight (HDPE)
kg/h
65
Extrusion Motor Power
kW
18.5
Pump Motor Power
kW
7.5
Heating Capacity
kW
17
Operation Pressure
MPa
0.6-0.8
Air Consumption
m3/min
1.5
Chilled Water Consumption
L/min
50
Oil tank capacity
L
100
Machine Dimension (L x w x H)
mm
3530x2440x2300
Machine Weight
kg
4300

Company Profile
POWERJET PLASTIC MACHINERY CO., LTD. was founded in 2000, the headquarter is located in Foshan high tech Industrial Park, Sanshui, Foshan in Guangdong Province, occupying an area of 130,000 square meters.POWERJET is a high and new technology enterprise of R&D, manufacturing, sales, after-sales service of injection molding machine and extrusion blow molding machine.

In a production area of more than 50,000 square meters, we have an automated production line and an active staff. Lean organizational structure, efficient operation and ultra-modern machinery and equipment to ensure the production efficiency and flexibility, allows us to ensure quality and the fastest production cycle at the same time, at very competitive prices. Annual production capacity has reach to 4000-5000 injection sets of.


FAQ
Q1: Are you a manufacturer or trading company?
A1: We are a factory for plastic machines. Over 24 Years Experience In Manufacturing Injection Molding Machine And Blow Molding Machine.
Q2: Delivery time
A2: Normally Machine Delivery from the factory in 0-60 days after receiving the down payment. (During Chinese Public Holidays like National Day or Chinese New Year, the delivery time should be 10-30 days longer accordingly).
Q3: Where is your factory located?
A3: Our factory is located in No.5 Chuangxin Xi Road, Leping Town, Sanshui District, Foshan City, Guangdong Province, China. 1h drive from Guangzhou to our factory. Welcome to visit our factory.
