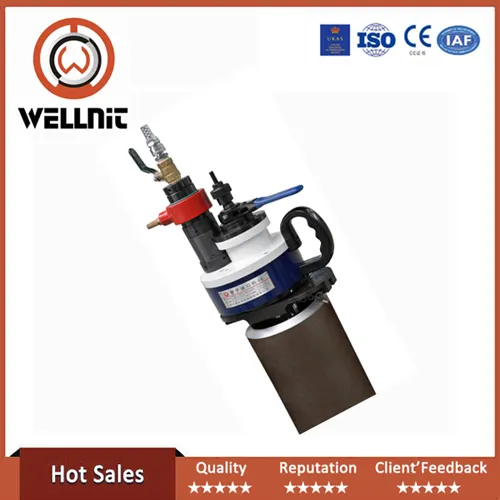

Pneumatic Internal Expansion Type Pipe Beveling Machine-ISP-159

Product Description

Product Description:
Pneumatic Internal expansion type pipe beveling machine-I
Our Product
The ID-Mounted Pneumatic Pipe Beveller operation utilizes an expandable mandrel which is slid into the open end of the pipe. A draw nut is tightened, which expands the mandrel blocks up a ramp and against the ID surface for positive mounting, self centered and squared to the bore. As the tool bit is fed into the material from the end, a bevel is produced which conforms to the angle predetermined by the angle ground into the bit. Bits are available for practically any material or beveling angle required, and bits can be custom made for any form tooling operation.
Production Features: This series is ID-mounted pipe beveling machine with light weight, compact design. Easy and quickly set-up self centered and squared to the bore. The tool not only can process carbon steel, stainless steel and alloy pipe with U, V welding seam but also process convex flange welded. Fast precision, on-site beveling, the bevel angle by your required. This series available for electric and pneumatic driven.
Application Range:
They are widely used in the fields of petroleum, chemical, natural gas, boilers, nuclear power, pharmaceutical, plant construction and pipeline engineering.

Driving Type
Pneumatic-ISP-I
Production Specification:

Spec.	Working Range (mm)	Wall Thickness (mm)	Rotation Speed (rpm)
30	18~28	≤15	50
80	28~76	≤15	55
120	40~120	≤15	30
159	65~159	≤20	35
273-I	80~240	≤20	16
355-I	150~330	≤20	14
426-I	250~426	≤20	12
630-I	300~600	≤20	10
850-I	600~820	≤20	9

Order Guide
Before you place order to us, please let us know the following information:
Choose the right Model
Confirm your electric power supply ( Voltage, frequency and phase)
Confirm the beveling angel required
Confirm the welding joint required (U, V, Double V or Compound preparation)
Advise your pipe material ( Carbon steel, stainless steel or others)
Other special demands about machine
The spare parts needed
If the pipe wall thickness more than 30mm, inform us in advance (Important)
