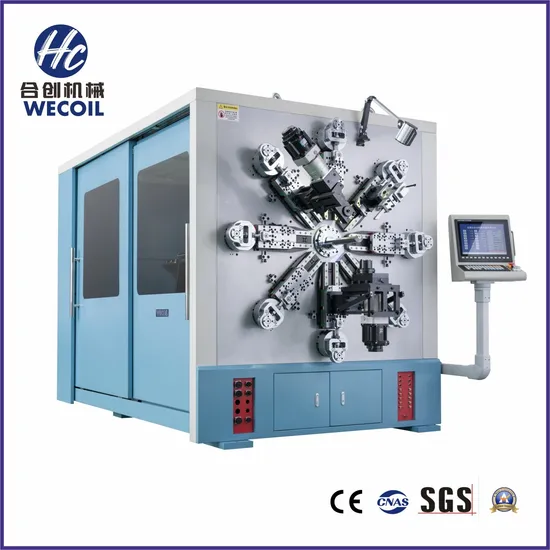

WECOIL HCT-1260WZ 2-6mm 12Axis CNC Versatile Extension/Torsion spring&Wire Forming Machine
| Negotiable | 1 Set (MOQ) |
Basic Info.
Model NO.
HCT-1260WZ
Warranty
1-year
Condition
New
Certification
ISO 9001:2000, CE
Automation
Automatic
Suitable for
Rubber, Copper, Carbon Steel, Stainless Steel
Type
Cnc Bending Machine
Number of axis
12-16 axis
Wire size range
2.0-6.0mm
Max feeding axis
105m/min
Spring index
4
Feeding roller pairs
4 pairs
Wire feeding servo motor
7.5kw
Quill part servo motor
1.8kw
Wire rotation motor
5.5kw
Forming and cut off servo motor
4.4kw*8
Spinner servo motor
1.8kw
Weight
8000kw
Transport Package
Vacuum Packaging
Specification
L3800*W2000*H2200mm
Trademark
WECOIL
Origin
China
HS Code
84633000
Production Capacity
500 Sets
Product Description
HCT-1260WZ 12 axis Camless CNC Versatile Spring Rotating Forming Machine, is composed by Taiwan computer system and Japan servo motor special designed with no rocker arm and camless, the slide base is separately controlled by eight servo motor, Feeding axis, Quill rotating axis, Wire rotating axis and Spinner axis. It composed of crank connecting link system, feeding and rotating system, coiling straightening system and quill system. It can install the device of hydraulic pressure scissors, low noise; the damage is zero on mandrel and machine. It is suitable for making kinds of tension spring, torsion spring, compression spring, scroll spring, tower spring, flat wire spring and such highly difficult springs. Largely increased the spring making range, it is precise, stable and easy to operate.The crank connecting link system are include eight knife rest, eight knife rest are separately driven by eight Yaskawa servo motor through VRB reducer, no influence from each other, make the spring forming handy and easy. Controlled the feeding and wire rotation system synchronous through CNC program, at the same time the feeding accuracy can be reach within 0.1mm during wire rotation.Workshop area over 4000 square meters.
Over 30 high-level specialized technical personal 30 people Spring sample
Packing and loading
Thank you!
