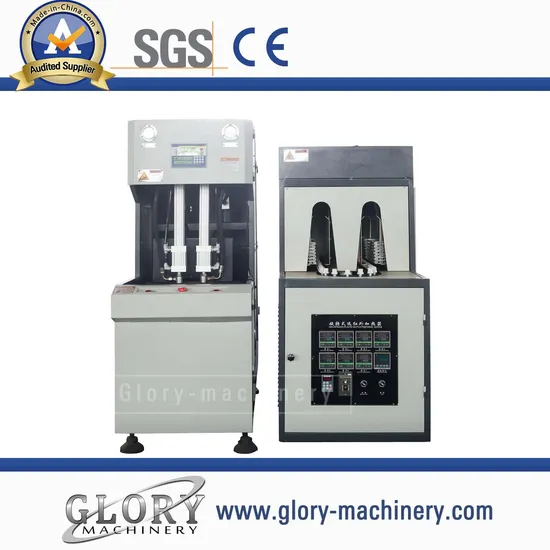

Semi Automatic Pet Bottle Manufacture Machine

Product Description

Features: Adopt the new type double bend arm and four pull rod-clamping structure (won the patent). Cross direction; middle mould board is move parallel; the distance between two mold bases is adjusted by the chain wheel. Thus, the clamping force is very strong. The machine frame is produced by the whole complete casting bottom, so that the machine is firm and running stable. Adopt the straight slide way, reduce the friction and lengthen the life of the machine. Double start working button, which is designed for avoiding the injury. Power saving design that can increase your profits. The single direction of pre-form placing and bottle picking, which increase the output. Segregate type air controlling system, which is designed for avoiding waste pollution. The stretching air cylinder is adjusted parallel from front to back, from left to right freely by regulator. Technical Parameter:

Model NO.	GMS-800
Theoretical Output	800pcs/hr
Max.Container Volume	3L
Max. Neck Diameter	55mm
Max. Container Diameter	95mm
Max. Container Height	320mm
Mold Thickness	120-250mm
Number Of Cavity	2 cavity
Use Power	8kw
Working Pressure	1.0mpa
Blow Pressure	<3.0mpa
Machine Size	1.6x0.6x1.56m
Machine Weight	0.5T
Heater Size	1.7x0.6x1.34m
Heater Weight	0.2T

GM-0177
