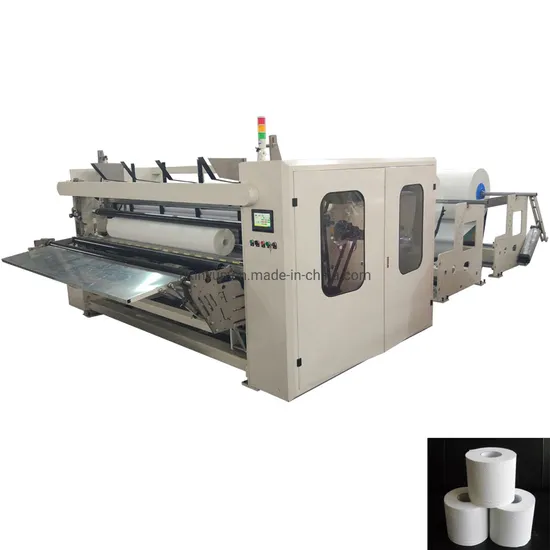

Hot Sale Auto Small Toilet Paper Kitchen Towel Maxi Roll Rewinding Making Machine Price

Product Description

Hot sale auto small toilet paper kitchen towel maxi roll rewinding making machine price
XY-TQ-B
Description of the equipment:
The production process is: Unreeling - Embossing - Perforating- Rewinding- Tail-gluing- Edge trimming--- Automatic core loading .
Functions and Features
1.This machine is for making toilet paper rolls, the whole structure is wall-type, which make machine running stable at high speed, and noiseless.
2. Perforation distance is adjustable to meet different distance needs.
3. Automatic core feeding system, automatic pushing the log after rewinding, then rewinding the new log again.
4. Automatic edge-trimming, glue spraying and sealing synchronously in one time. Leaving 10-18mm tail, easy to rewind again, so reducing shortcut waste and save the cost.
5. Adopts international advanced PLC programmable controlling technique, man-machine interface operation, data set and parametric fault shows on touch screen.
6. Adopts 4 pieces high Precision spiral knives, low noise, clear perforation, adopt gearbox to have bigger range.
7. Two wall type back stands, pneumatic lifting system, with wide driving flat belts; each jumbo roll can be adjusted independently.
8. Adopt jogging switches for wearing the paper, easy and safe to operate.

Technical data:

Machine Model	1092	1575	2000	2200	2400	2600	2800
Width of jumbo roll (mm)	1200	1750	1950	2150	2350	2550	2750
Finished Products Diameter	Φ80~120mm (Tightness can be adjustable)
Finished Products Inner Diameter	Φ32~60 mm
Jumbo roll diameter (mm)	Φ1200 (Other sizes please point out)
Jumbo Roll Inner Diameter	76.2 mm (other sizes please point out)
Perforation distance (mm)	4 blade,90~160mm; 2 blade,180~320mm;
Production speed	160-200 m/minute
Parameter set	Touching-screener Multi-menu Man-machine Interface Operation System
Controller	PLC program
Mechanical driving	Driven by stepless regulator to guarantee the precise length of final products.
Air pneumatic system	3 Pa (air-compressor), the minimum pressure 5kg/cm2 pa (prepared by buyer)
Power	4kw-10kw (380V 50Hz)
Overall size (L×W×H)	6200X2750X1800 mm
Weight of equipment	About 4.2T
Chosen items (Should be ordered separately)
Embossment	Single embossment, Double embossment, Edge embossment
Embossment down roller	Paper roller, rubber roller
Jumbo roll stander	1-3 plies
Rewinding unit	Non-core unit
Printing unit	Single color heliotype printing unit
Other special request for machine is welcome

Production Process:Unwinding---Embossing---Rewinding---Tail gluing---Edge Trimming---Rewinding---Cutting---Packing
Video link: https://youtu.be/bZVQj6Hu0i4
https://youtu.be/7k5naqyUNz4

FAQ
How much is this machine?
1. Please tell me what's the width of jumbo roll(raw paper) will you process?
2. Do you need one set of embossing device or two?
3. What's the daily capacity of machine do you need?
Why buy Machine from Fujian Xinyun Machinery Development Co.,Ltd ?
1. Good quality of machine with reasonable price.
2. Good service: Any question from customer will be reply within 24 hours
For all the machines we sell, we will offer two-years guarantee for free and all life maintenance.
We deliver a DVD of Operation Video with machine,it will help customer to work the machine easy.
After the machines arrive, the sellers shall send technician to install the production line(if need). And the buyer shall pay their round-trip air tickets from China factory to buyer's factory, the charge of visa, food ,transportations and accommodation in buyer's city.
Company Information
Fujian Xinyun Machinery Development Co.,Ltd is good at Paper Converting Machinery anufacture.Professional supplier of:
1) Toilet Paper Machine (1.2m--2.8m width of parent roll, Customize Service)
2) Roll Kitchen Paper Towel Machine (1.2m--2.8m width of parent roll, Customize Service)
3) Facial Tissue Machine (2-8 output lanes)
4 )Napkin Paper machine(L-fold, 1/4-fold, 1/6-fold, 1/8-fold and other multi-fold type)
5) Hand Towel Paper Machine(C-fold, V-fold and N/Z fold type)
6) Pocket Tissue Machine(mini and standard size)
7) All kinds of Tissue Paper Cutting and Packing Machine
8) Another Household Paper Equipments and Production Line.
If you need more information about these machine,please feel free to contact me!
Welcome to contact us to get more details !
We can design the machine according to your request.
