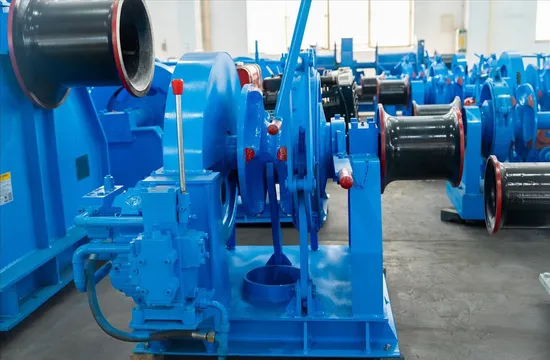

Heavy Duty Hydraulic Single Sprocket Anchor Windlass for Easy Anchoring

Product Description

Marine anchor windlass is a machine that restrains and manipulates the anchor chain and/or rope on a boat, allowing the anchor to be raised and lowered.A notched wheel engages the links of the chain or the rope.A "trawl windlass" is a similar machine that restrains or manipulates the trawl on a commercial fishing vessel. The trawl is a sort of big fishing net that is wound on the windlass. The fishermen either let-out the trawl or heaves-up the trawl during fishing operations. A brake is provided for control and a windlass is usually powered by an electric or hydraulic motor operating via a gear train.
Specifications:
1) Drive: Hand/electric / hydraulic
2) Configuration: single in vertical / horizontal arrangement / double gypsies in horizontal
3) Chain size: 16 mm to 127 mm
4) Chain speed: complying with ISO requirements
5) Clutch: manually operated dog clutch
6) Brake: manually and hydraulic operated band brake.
7) Control: local control
8) Paint: as per your specifications.

Electric anchor winch windlass for marine use
Drive	Electric/Hydraulic /Manual Driven/ Diesel
Configuration	Single/Double Gypsies and Warping End
Gypsy Size	U2 or U3 from 17.5mm to 127mm
Working Load	1 Tones to 350 Tones
chains Speed	Complying With ISO/Classification Society Requirement
Clutch	Manual /Hydraulic Operated Jaw Clutch
Brake	Spring Applied Pneumatically or Hydraulic Released Band Brake
Release	Emergency Quick Release
Control	Local Control Console and remote Control Panel
Options	Drag Brake System ; Length and Tension Monitoring Systems Stainless Steel Brake Drum
Our Advantages:	1 High quality with competitive prices 2 Much experience in production and exportion 3 Special design for different clients. 4 Short delivery time if clients need urgently Certificate: ABS, GL, LR, BV, KR,NK,DNV, CCS,etc..
