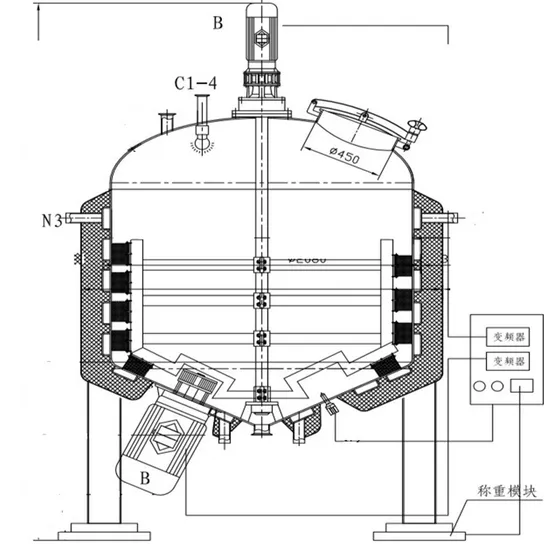

Stainless Steel Double Wall Heating Mixing Tank Jacketed Tank

Product Description

Aseptic Tank Double Jacketed Tank with Mixer agitator
Stainless Steel Double Wall Heating Mixing Tank Jacketed Tank
Stainless Steel Double Wall heating and mixing tank
Jacketed tank with mixer,
Choice of simple jacket tank (simple skin) or of retention double jacket tank (double skin) or tank and retention
a jacketed vessel is a container that is designed for controlling the temperature of its contents, by using a cooling or heating "jacket" around the vessel through which a cooling or heating fluid is circulated
hot water heating tank with mixer; hot water tank with mixer
Heating and mixing tank
preparation tank/mixing tank for dairy production line,, Shanghai, China (Mainland)
The dairy preparation thus obtained is conveyed to storage tanks where it is also subjected to continuous stirring,
because a typical dairy plant might manufacture yogurts, drinks and cheeses tanks . Our sanitary dairy mixing tanks could encompass the entire plant and all products, or we could create a partition between processes if it is possible to separate resource usage, raw materials, and so on. We make the assumption here that these different processes are independent and so decide to focus on the yogurt process
1.Mixing tank(sterilizing tank /aseptic tank) is made of SUS304 Or SS316L
2.Mixing tank(sterilizing tank /aseptic tank) can used for heating or coolling using dimple jacket.
3.with perlite or PU to keep heat /cold insulate.
4.All angles is treated in special process to guarantee no dead angle
5.this tank is widely used for heating or cooling or temperature holding
6.liquid foods like milk, juice, ice cream, chemical and biological areas.
7.With agitation or no can be an option, and it can be build according to the customer detail requirement.
Mixing tank(sterilizing tank /aseptic tank) Standard configuration: manhole, thermometer with figure display, ladder, CIP washing point, pull pole valve, controllable trestle, charging/discharging port and sampling valve etc. Other Types are according to customer's requirement If you are interested in this product ,please contact with me :

Work Volume	Dimension of tank	Total height	Insulated layer	Diameter of inlet&outlet	Motor Power	Blending speed
(L)	(mmxmm)	(mm)	(mm)	(mm)	(kw)	(r/min)
500	840*1000	2300	60	38	0.75	Rotating 20,35,50, 100,500 Stepless speed reducer or inverter reducer available
600	920*1000	2400	60	38	0.75
700	990*1000	2400	60	38	0.75
800	950*1220	2550	60	38	0.75
900	1010*1220	2700	60	38	0.75
1000	1060*1220	2700	60	51	1.1
2000	1340*1500	2750	60	51	2.2
3000	1410*2000	3500	60	51	4
5000	1910*2000	3850	60	51	5.5
10000	2300*2440	4500	60	51	7.5
15000	2530*3000	5200	60	51	7.5
20000	2640*3660	5800	60	51	7.5
