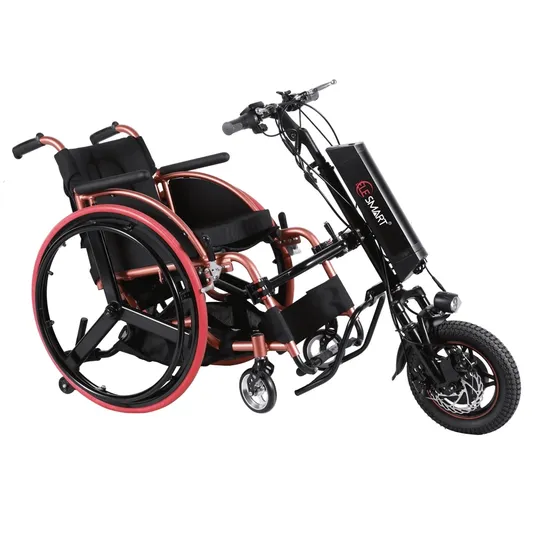

Wh12as 12inch 350W Suspension Fork in Wheel Motor Wheelchair Electric Handcycle

Product Description

Chinese Supplier Wheelchair Type and Rehabilitation Therapy Supplies 12inch 250W/350W wheelchair handcycle
Electric Wheelchair Handcycle Product Features
1. Improved arm design,reduce the moving parts,brake more stable.
2. Radius disc brake,front fork is suspension fork,improved the riding comfort and safe.
3. Innova 12½*2.4 tire have a good and grip and abrasive resistance.
4. Adjustable claw, can suitable different diameter frame tube.
5. 36V 10.4Ah lithium battery,use Panasonic and LG 18650 battery cell,integrate controller. 36V 11.6Ah also available.
6. LCD display, 3 forward gears 1 reverse gear. Top speed is 15 mile/h (24km/h).
7. 34cm length arm, provide big foot space.Adjustable angle handle for people of different heights.
8. Adjustable angle handle for people of different heights.

Technical Parameters

Frame Material	6061 Aluminum alloy frame
Motor	36V 350W in wheel motor
Battery	36V 10.4ah thunder type (11.6Ah 8.8Ah optional)
Controller	Intelligent controller
Charger	AC 100V-240V,2amps smart charger
Tire	INNOVA 12½*2.4
Speed	1st-10 mile/h; 2nd-12 mile/h; 3rd-15 mile/h
Brake	Disc-brake;Hand brake
Light	Front LED light with horn
Display	LCD005 display
Throttle	Half-twist throttle

*Before buying, please check whether your wheelchair construction is shuitable our handcycle.Your wheelchair must have frame tube to fix the tongs.

Company Information
Certifications
FAQ Q:Does your handcycle fit all wheelchair?
A:Our handcycle fit almost all normal wheelchair,it can attach the wheelchair tube with dimension between 18mm~33mm.
Q:How many hours can go per charge?
A:If with 8.8Ah battery,it will go about 1.5 hours per charge.
Q:Can you send me manual or video?
A:Yes,we will send manual together with package,and you can find video on youtube,just write "cnebikes" to search.
Q:Can it be checked at the airline's gate with a mobility impaired customer's wheel chair?
A:Don't worry,This product is in the allowed range.
Q:Is there anyway to limit the speed less than 12km/h?
A:Yes,you can set the limited speed on LCD display.
Q:What is the warranty:
A:Item has one year warranty. Warranty is invalid for natural wearing or any damage due to wrong operation.
Q:Is the lithium battery rechargeable? If so, do I need to purchase a separate battery charger?
A:Yes,It is.You needn't purchase a separate battery charger,it will be sent to you with the battery together
Q:Is the battery type Lithium?
A:Yes,it is.
