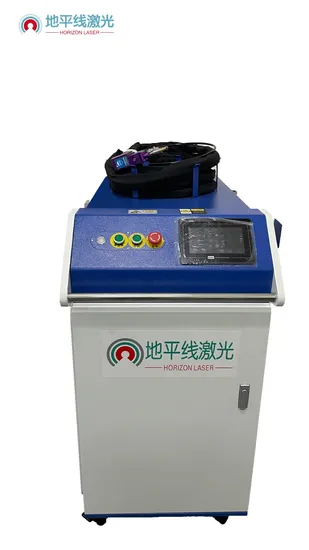

1000W 1500W High Power Laser Cleaning Machine Fast Speed

Product Description

Product Description
1000W/1500W/2000W Hand-held laser cleaning equipment uses optical fiber to transmit high-energy-density laser. The hand-held cleaning head emits light to clean the oxide layer, paint, weld, etc. on the surface of metal materials such as carbon steel, stainless steel, and aluminum alloy. The operation is flexible and convenient.
Compared with traditional cleaning methods such as ultrasonic wave, chemical corrosion and mechanical friction, hand-held laser cleaning has the advantages of no damage to the parts substrate, no consumables, energy saving and environmental protection, and high efficiency. It can remove resin, oil, stain, dirt, rust, coating on the surface of the workpiece , coating, paint, to meet the cleaning requirements of complex modeling and fine positioning in the field of industrial processing with higher cleanliness cleaning effect and lower overall cost of production efficiency.
Mainly used in mold industry, rail transit, shipbuilding industry, petrochemical pipeline, mechanical parts renovation, automobile manufacturing, cultural relic restoration and other industries.
Detailed Photos

Product Parameters
Technical Parameters

Model	DPX-QC1000	DPX-QC1500	DPX-QC2000
Laser Source Type	CW fiber laser source(Wavelength: 1080±3nm)
Output Power	1000W	1500W	2000W
Power Adjustment Range	10%~100%
Welding Mode	Continuous optical cleaning, millisecond pulsed laser cleaning (duty cycle < 100%)
Adjustable Weld Width	0~150 mm
Torch Cable Length	About 7.5m
Torch Weight	<0.8kg
Dimensions(L*D*H)	1200*600*1300mm
Net Weight	230kg		250kg
Power Consumption	<5kw	<7kw	<9.5kw
Operating Voltage	Single-phase 220VAC/ Three-phase 380VAC
Working Environment	Temperature:0~40ºC,Humidity<70%

Cleaning Performance

Cleaning energy of different materials
Model	DPX-QC1000	DPX-QC1500	DPX-QC2000
Thin Rust(20μm)	10m3/h	15m3/h	20m3/h
Paint(120μm)	4m3/h	6m3/h	8m3/h
Thick Rust(100μm)	2.5m3/h	4m3/h	5m3/h
Note: The above cleaning efficiency is for reference only, and the specific cleaning test of the actual product shall prevail.
