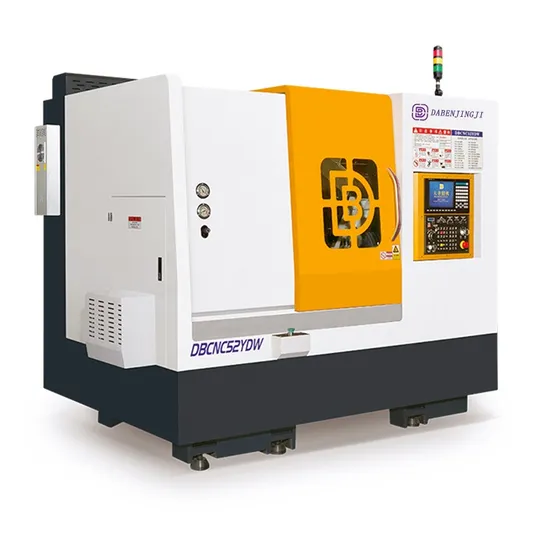

dB-6152-Serie Y-Axis Power Turret Tail Top Turning-Milling Compound CNC Lathe Center for Precise Drilling and Tapping

Product Description

Welcome to Dongguan Daben Intelligent Equipment Co., Ltd
Model characteristics
1.Utilizing true Y-axis power turret control enables complex part machining.
2.Each axis is equipped with imported high-precision linear guides, ball screws, and precision bearings.
3.Power turret's Y-axis employs 4-line rails/dual hard rail control, significantly enhancing precision and rigidity.
4.Programmable hydraulic tailstock allows easy loading of various workpieces with one-touch clamping/releasing, controlled in two speeds - fast/slow.
5.Equipped with four-axis turning, milling, drilling, tapping, and other coordinated processing functions, capable of drilling and tapping the ends of parts.
6.Power turret machining of high-rigidity parts, combined with the true Y-axis power head, facilitates turning and milling composite functions for complex parts.
7.Capable of large-scale precision machining of steel, stainless steel, including drilling and tapping on shaft ends. Tailstock machining available for long shaft parts.
8.Side-mounted power tool modules with drilling, tapping, and milling flat functions facilitate precise drilling and milling of various shaft components.
Standard configuration
- New-generation system
- Japanese THK ball screws
- Japanese NSK bearings
- Integral cast iron bed
- German Rexroth linear guides
- Taiwan Jian Chun / Taiwan Pusen spindle
Technical parameters

Model	DBCNC52YDW
Item	Technical parameters	unit	Describe
Spindle	Spindle nose end	/	A2-6
	Spindle bore	mm	56
	Bar diameter	mm	46
	Chuck/collet size	/	8"/52 type collet
Machine range	Maximum slewing diameter	mm	600
	Maximum turning diameter	mm	350
	Maximum processing length	mm	500
Mechanical capacity	Maximum spindle speed	rpm	4000
	Maximum speed of milling axis	rpm	0-4000
	Maximum X/Y/Z speed	m/min	25/15/25
Mechanical precision	Spindle indexing repeatability	/	±0.005°
	Spindle indexing positioning accuracy	/	±0.002°
	X/Y/Z axis repeatability	mm	0.002mm
	X/Y/Z axis positioning accuracy	mm	0.003mm
Axial travel	X-axis travel	mm	260
	Z-axis travel	mm	550
	Y-axis travel	mm	±60
Turret	Turret model	/	BMT45/55
	Number of tool positions	T	12
Automatic hydraulic tail top	Tailstock travel	mm	450
	Core stroke	mm	100
Motor power	Spindle servo motor	KW(HP)	11.0-15.0
	X/Z/Y axial servo motor	KW(HP)	2.4-3.1
	Servo motors for milling axes	KW(HP)	3.1
	High pressure oil pumps	KW(HP)	0.75
Other than	Height of spindle from ground center	mm	1050
	Total machine power	KW	About 15
	Machine external dimensions (L*W*H)	mm	About 2500*1800*1900
	Overall weight	KG	About 5000

Detailed Photos
Explore our CNC Lathe Turret Tail Top Power and CNC Equipment with detailed photos showcasing its precision and quality. Perfect for metal processing. Contact Dongguan Daben Intelligent Equipment Co., Ltd for more information.
Company Profile
Part of the manufacturing workshop
Application field
Part of the shipment
Exhibition images
Customer visit pictures
common problem
1:How to choose the most suitable machine?
A:Please tell us your specifications, and we can help you select the best model, or you can choose a specific model. You can also send us the product drawings, and we will select the most suitable machine for you.
2:How can I obtain a quotation?
A:Please tell us the model of machine you need, including the quantity and any other requirements.
3:Where is your factory located?
A:Our factory is located in Dongguan, Guangdong Province China. The postal code is 523000. We warmly welcome you to visit.
4:What are your terms of trade?
A:FOB
5:What are the payment terms?
A:T/T, 30% down payment upon order placement, and the remaining 70% balance payment before shipment.
6:How can I trust your company?
A:The quality of our products and our reputation are the greatest assets of our company.
