Alpha -610 Precision Automatic Sample Preparation System Industrial Diamond Polishing Suspension Metal Metallographic Grinding and Polishing Machine

Product Description

Model		Alpha-610
Head	Loading force	Central loading and Individual loading
	Central pressure	20-360N
	Individual pressure	5-60N
	Power	220V, 750W
	Speed	20-150rpm
	Direction	CCW/CW
Grinding disc	Power	220V, 750W
	Speed	50-600rpm
	Diameter	10ti /254 (8ti /203mm, 12ti /305mm optional)
	Direction	CCW
Quantitative Function	Accuracy	±0.1mm
	Grinding capacity	0.1mm-10mm
Dosing System (optional)	Type	Peristaltic pump, DC24V, 10W
	Flow	Maximum flow rate: 52ml/minute
	Amount	4
Clamping Disk	Individual loading	Standard: 6xΦ30mm(6xΦ25mm, 6xΦ40mm, 6xΦ50mm optional)
	Center loading	Standard: 6xΦ30mm(6xΦ25mm, 6xΦ40mm, 6xΦ50mm optional)
Environment	Temperature	-10˚C - 60˚C
	Humdity	0-95%RH
Dimension	WxDxH	717x505x660mm
Weight		65kg

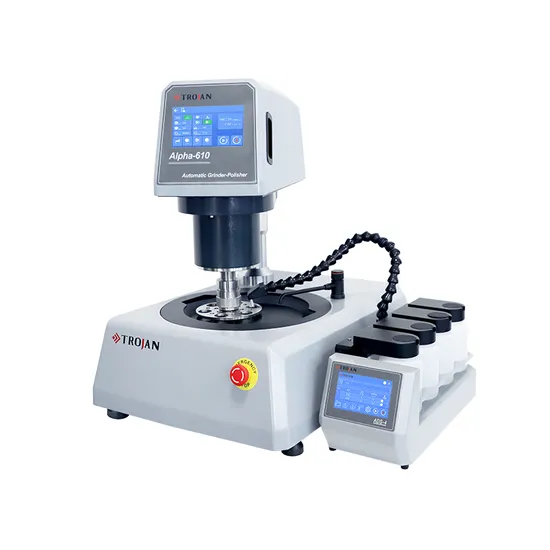

Alpha - 610
Automatic Grinder and Polisher
The Alpha-610 is a single platen automatic grinder polisher. The grinding head and the grinding platen are driven by two independent motors, suitable for grinding platen with a diameter of 200mm -300mm. The machine has two types of pressurization: center loading and individual loading, and can be equipped with an optional 4 sets of peristaltic pump dripping system. Twenty sets of commonly used grinding processes can be set and stored in the system, enabling highly repeatable test results easily and quickly.
Features:
Cast aluminum shell, SMC standard loading cylinder, designed to be more reliable and durable;
7-inch touch screen panel, the interface is simple and easy to
understand;
Adopt two-hand protection button to control the lifting and lowering of the
clamping platen;
Two pressurization modes: Central Pressure Loading and Individual
Pressure Loading; Center loading can be upgraded to quantitative grinding;
Dripping system with 4 sets of peristaltic pumps is available;
Built-in 20 groups of common grinding and polishing process parameters and user-defined parameters can also be stored;
Large diameter side drainage system, not easy to block and drain quickly;
Pluggable faucet facilitates cleaning and maintenance of the disk;
Built-in automatic temperature-sensing cooling fan to reduce failure rate and enhance working lifeMore Related Products
Scope of application
Recommend for you
Company Profile
Certifications
Exhibition
Packaging & Shipping
FAQ
Q: I didn't use this kind of machine before, is it easy for me to operate?A: We will send you how-to tutorials and guide video in English which can teach you how to operate the machine. We can also assistyou by E-mail, phone call, online group chat and any other ways if you still have trouble handling it.Q: If the machine has problem in my place, how could I do?A: We could send free parts to you in warranty period if machines have any problem under normal use.Q: What is the price and payment terms?A: EXW, CIF, FOB we all can accept payment: TT/Paypal /LC/Western Union.etc
