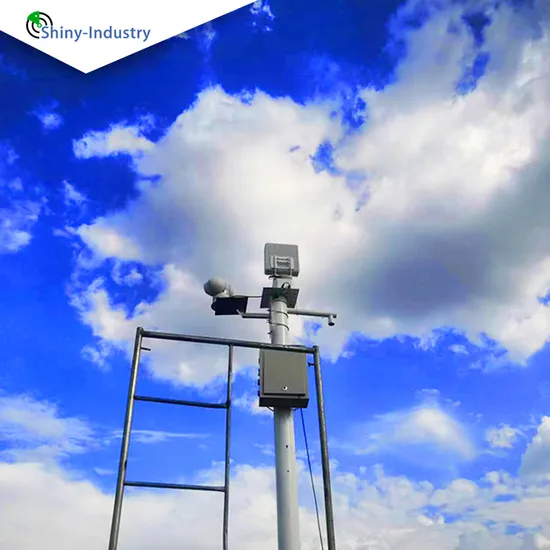

5~18km Surveillance Radar Single-Pulse Two-Coordinate Radar Long Range Defense/Ground Surveillance Radar

Product Description

Basic Information

Model NO.	RS3000A
Operating frequency	X Band
Work frequency point	eleven
tracking mode	TWS
Azimuth scan range	Single-sided array phase sweeping ± 45°, by expanding the array, 180°, 270° and 360° phase sweeping can be realized
Pitch coverage	7°
Maximum Detection Range	1.3km (Pedestrians) ≥ 2.4km (Vehicle/Ships)
Minimum travel distance	≤150m
Target velocity range	0.5m/s~50m/s(1.8km/h~180km/h)

Packaging & Deliver

weight	≤12kg
Structural dimensions	350mm×350mm×105mm
Ingress protection	IP66

Schematic diagram of the work
Schematic diagram of radar multi-array combination



peculiarity
RS3000A radar is a multi-purpose, fully coherent, one-dimensional active phase-scanning, single-pulse two-coordinate radar, which is suitable for various complex terrain and sea conditions, and can realize the detection of walking people, driving vehicles, ships and other targets. After long-term practical application and optimization and improvement, the radar performance is reliable and stable, and it can meet the requirements of harsh environments such as high cold, humid heat, and salt spray.
Technological advantages
1) Adopt active phase scanning technology to realize azimuth electric sweeping. Compared with mechanical scanning radar, this radar has the technical advantages of high scanning rate, fast rate of changing beam direction, and high measurement accuracy for targets.
2) Using advanced radar signal processing technology, the radar false alarm rate is low, the monitoring picture is clean, and the target can be accurately found and locked;
3) The pitch beam covers a large angle, which can cover the ground, sea surface, valley, hillside, etc. at the same time, and can meet the detection of pedestrians, vehicles, boats and animals.
4) It has the ability of flexible networking, and can flexibly network according to actual needs, so that one display and control terminal equipment can control multiple radar hosts at the same time;
5) Each functional component adopts modular design, the interface is clear and simple, and the maintenance is convenient;
6) The structure layout is exquisite, the volume is light and compact, which is easy to transport, carry and quickly erect;
7) Adopt man-machine integration design, radar operation is simple and practical;
8) All active components are designed with power consumption optimization, and the overall power consumption of the radar is small; It can be adapted to various power supplies;
9) Adopt fanless thermal equilibrium technology, which is verified by simulation optimization and physical test of the whole machine, and is suitable for extreme environments such as high temperature and low cold;
10) Adopt fully sealed design, the whole machine meets the requirements of IP66, has the functions of dustproof, waterproof, anti-salt spray, etc., has high reliability, and is suitable for Gobi, desert and marine environments.
Functions
The radar is mainly used for border defense/important site vigilance, monitoring personnel, vehicles, ships and other targets in the area, and its main functions are as follows:
It can complete the functions of searching and tracking for walking people, moving vehicles, boats and other targets;
It has the functions of online detection, fault diagnosis, fault location, temperature monitoring, etc.;
It has functions such as self-positioning and orientation
It has the functions of automatic recording and playback of working status;
It can provide guidance information for the upper-level system and have the ability to work together;
With networking function, it can realize the coordinated work of multiple radars.
