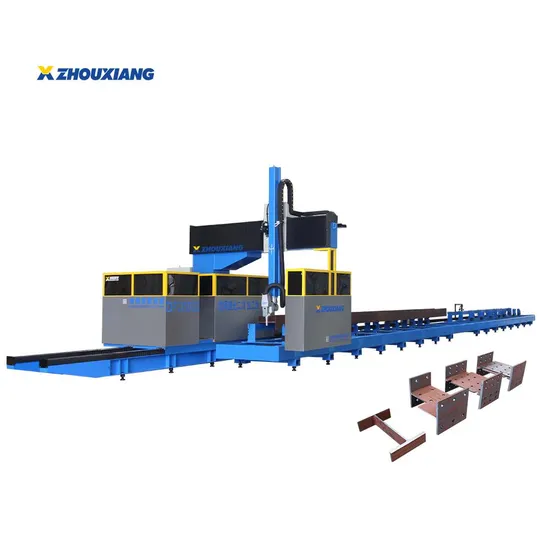

Automatic CNC Gantry Moveable 3D Profile Steel Beam Cutting and Drilling Machine

Product Description

Product Parameters

Model	ZX-FCX50120
Profile Steel Cutting Range	Height:150mm~800mm
	Width:250mm~1200mm
	Length<= 26000mm
X-Axis Travel	2000mm
Y-Axis Travel	26000mm
Z-Axis Travel	900mm
X/Y Axis Positioning Accuracy	±0.25mm
X/Y Axis Repeatability	±0.05mm
X/Y/Z Max Velocity	30m/min
A-Axis Swing Angle	±90°
B-Axis Swing Angle	±90°
Max Acceleration	0.2G
Phases	3
Power Specifications	380V/50HZ
Overall Power Protection Level	IP54
Laser Power	12000w

Product Description

The H-beam laser secondary processing line is an advanced technological product that integrates laser cutting, precision machinery, intelligent inspection, and three-dimensional five-axis CNC technology. In the field of steel structure processing, traditional manual and semi-automatic cutting methods are still commonly used, creating an urgent need for a high-efficiency, high-quality processing approach to enhance productivity and quality while reducing labor costs. ZhouXiang Laser is committed to delivering automated processing equipment with high efficiency, precision, and cost-effectiveness, aiming to replace outdated production methods characterized by high labor costs, low efficiency, and intricate processes. This shift in approach significantly contributes to boosting production efficiency and product quality for users. The product exhibits strong adaptability, is customizable, and finds extensive applications in H-beams, curved steel, channel steel, and more.
1.Equipped with a cutting process database, allowing configuration of corresponding process data based on different materials and sheet thicknesses. 2.Supports direct import of 3D models from software like Tekla and Solidworks, enabling direct drawing or editing of profiled steel cutting trajectories within the nesting software. No need for third-party software, enhancing setup and adjustment efficiency. 3.Applying laser measurement sensors for accurate measurements. 4.Considering significant deformation in profiled steel, using spatial coordinates as the basis for processing.
1.Dual Workstation Design: While Station A is cutting, Station B handles loading and unloading operations.
2.Automatic Material Alignment: Utilizing laser sensors to locate the axis of the profiled steel, enhancing precision, saving
time, and optimizing space.
3.Flexible Processing: Capable of segmental processing or continuous full-length processing.
Application

Main Products

Customers of Zhou Xiang

Company Profile

Wuxi Zhouxiang Complete Set of Welding Equipment Co.,Ltd,founded in 1991,located in Wuxi city, about 100km from Shanghai.We have fixed assets of 150 million yuan,cover an area of 160,000 m2, staff 500 people,including more than 100 engineering and technical personnel.Our company was certified to ISO9001 Quality System Certification firstly in the industry and many products were certified to China Compulsory Certification(CCC).Our products sell well at home and abroad,including Europe,America,Southeast Asia,Middle East and other countries. Zhouxiang products mainly include cnc cutting machine,H beam production line,box beam production line, welding manipulator, welding rotator, welding positioner, milling machine, shot blasting machine, plate rolling machine, profile bending machine and fiber laser cutting machine etc.We have high sincerity to do business with customers all over the world and establish good friendships.
We actively participate in and hold exhibitions, and reach friendly cooperation with foreign friends. Our cooperation is not only our progress but also the world's progress!
Our Service
FAQ
1.Q: What is the minimum order quantity?
A: 1PCS.
2.Q: What are the payment terms?
A: L/C; T/T.

3.Q: How long is the delivery time?
A: 30 Days.
4.Q:How long is the warranty period?
A: 1 Years.
