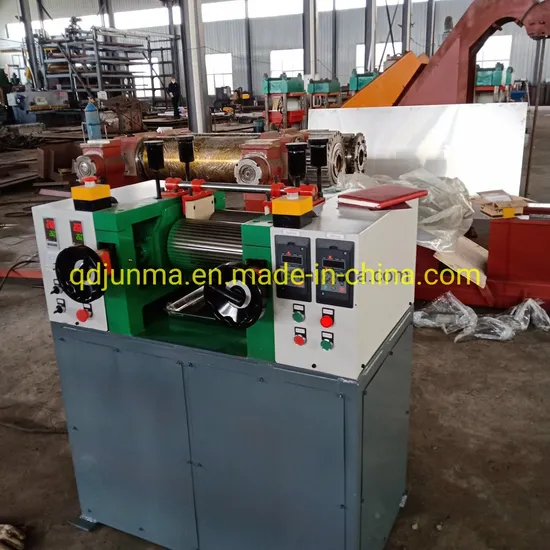

2 Two Roll Lab Rubber Mini Mixer Machine for Laboratory
| US$2,300.00-2,700.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
XK-160
Control Type
Artificial
Automatic Grade
Semi-Automatic
Power Source
Electric
Type
Open Mixing Mill
Type of General Rubber Machinery
Mixing Roll
Certification
ISO, Ce, SGS
6 Inch Lab Mixing Mill
Safety
Advantage
Good Quality, Good Price
Model
Xk-160
Transport Package
in Bulk
Specification
ISO, CE
Trademark
SFC
Origin
China
HS Code
84778000
Production Capacity
50sets/Month
Product Description
Mini Laboratory Open Rubber Mixing Mill With CE&ISO1. CE, ISO9001, SGS Certificate.
2. 100% meet your requirement.
3. Sell to about 126 countries on 6 continents.
4. One year quality guarantee and long-term technical support;
5. With more than 40 years of history in the rubber machine industry.
Two roll lab mixing mill feature describe:
1. Reducer, gear and roll in a straight line, this is a new technology, and the design advantages: Save electrical to save cost, convenient to repair, easy to operate.
2. With emergency brake, very safety.
3. With water cooling system
4. This rubber mixing mill with good reducer. Low noise, higher safety factor, long service life. And have foot and hands emergency brakes, increase the safety factor.
5. The wires are connected machines, as long as the power supply is connected, the machine can work.
| Item | XK-160 | XK-250 | XK-360 | XK-400 | XK-450 | XK-550 | XK-560 | XK-660 | XK-710 | |
| Roll diameter | mm | 160 | 250 | 360 | 400 | 450 | 550 | 560-510 | 660 | 710 |
| Roll working length | 320 | 620 | 900 | 1000 | 1200 | 1500 | 1530 | 2130 | 2200 | |
| Front roll linear speed | r/min | 9 | 16.3 | 16.7 | 19.3 | 21.8 | 22.5 | 27.2 | 28 | 31.9 |
| Speed ratio of rolls | 01: 01.4 | 01: 01.1 | 01: 01.3 | 01: 01.3 | 01: 01.3 | 01: 01.2 | 01: 01.2 | 01: 01.2 | 01: 01.5 | |
| Max roll space | mm | 4.5 | 8 | 10 | 10 | 12 | 16 | 15 | 0.5-15 | 0.5-15 |
| Compound feeding capacity | kg | 1-2 | 10-15 | 20-25 | 18-35 | 50 | 50-65 | 50-65 | 165 | 190 |
| Motor power | kW | 5.5 | 18.5 | 30 | 45 | 55 | 110 | 90 | 240 | 280 |
| Dimensions(L× W× H) | ||||||||||
| L | mm | 1133 | 2722 | 4200 | 4920 | 5405 | 6646 | 6270 | 7280 | 8185 |
| W | mm | 920 | 1115 | 1780 | 1780 | 1740 | 2736 | 2282 | 3400 | 3910 |
| H | mm | 1394 | 1345 | 1760 | 1800 | 1790 | 2105 | 2000 | 2530 | 2270 |
| Gross weight | T | ~2 | ~3.2 | ~6.5 | ~8 | ~11.4 | ~22 | ~22.5 | ~49 | ~51 |
