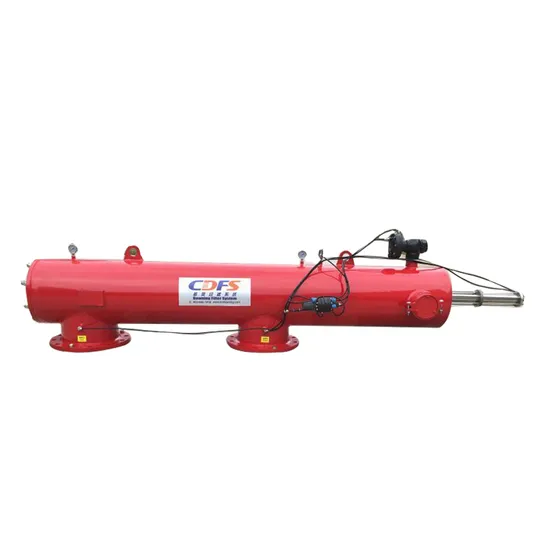

Hydraulic Self Cleaning Screen Filter No External Power Source Required

Hydraulic Self Cleaning Screen Filter No External Power Source Required

US$1,300.00-10,000.00 1 Piece (MOQ)

Basic Info.

Pressure
2-10bar
Flow Rate
6~4000m3/H
Precision
50~2000microns
Mesh
SS316
Water in/out
2-10 Inch
Working Temperature
≤65
Pressure Loss
0.2-0.5bar
Cleaning Time
20-200s
Cleaning Way
Differential Pressure/Time/PLC
Transport Package
Wooden Case
Specification
1~5CBM
Trademark
CDFS
Origin
Changsha, Hunan, China
HS Code
8421219990
Production Capacity
200 Sets/Month

Product Description

Product structure
1:Suction nozzle
2.Automatic drain valve
3:Hydraulic piston
4:Pressure difference indicator
5:Screen
6:Water outlet
7:Water inlet
Product principle
The water flows through the screen and the particles are retained on the inside of the screen of the filter element. The filtered water then flows out through the outlet.
Self-cleaning mode can be started by pressing, timing or manual three ways, following the principle of pressure difference.
When the internal and external pressure difference reaches the set value, the self-cleaning mode starts.Drain pipe hydraulic valve open, sucking the scanner to produce negative pressure suction nozzle inside, absorbing impurities, at the same time sucking scanner in under hydraulic motor along the inside surface mesh do reciprocating screw, movement, no cleaning blind area, impurities by the discharge outlet.
The cleaning time of self-cleaning filter is set by the controller in advance, the drain valve is closed after cleaning, and little water loss in cleaning process.
Technical parameters
A single maximum flow capacity is up to 4000m3 / h
Wide filtration range:screens from 4000 to 20 microns
Working pressure(min)≥0.18Mpa
Working pressure(max)≤1.6MPa(customized is available)
Working temperature ≤65ºC
Power supply: 220 v / 50 Hz (Customized is availabel)
Cleaning method: suction
Adjustable cleaning time: 10-200 seconds
Filter material
Shell: carbon steel, 304 stainless steel, 316L stainless steel
Screen: 304 stainless steel, 316L stainless steel
Drain valve, cast iron,copper,stainless steel,PVC,nylon
Controller: PVC, aluminum
Seal ring: EPDM rubber
Suction: stainless steel, PVC
DLAF800 series self-cleaning filter specification table
Model Water in/outlet
(inch)
D1
(mm)
L
(mm)
L1
(mm)
L2
(mm)
L3
(mm)
H
(mm)
Flow
(m³/h)
DLAF803LOPR 3 273 450 1141 1575 2075 555 50
DLAF804LOPR 4 273 900 1505 1935 2735 555 100
DLAF806LOPR 6 325 900 1505 1935 2735 625 150
DLAF806XLP 6 273 900 1841 2275 3471 555 160
DLAF808PR 8 325 900 1685 2115 2915 625 250
DLAF808LOPR 8 325 900 2085 2515 3715 625 300
DLAF810PR 10 426 900 1885 2315 3515 726 350
DLAF810LOPR 10 377 900 2085 2515 3715 677 400
DLAF810XLP 10 426 1100 2725 3155 4755 736 450
DLAF812PR 12 426 1100 2725 3155 4755 736 600
DLAF814PR 14 480 1270 2725 3155 4755 810 1000
DLAF816PR 16 480 1270 2725 3155 4755 810 1200
DLAF816XLP 16 630 1270 2725 3155 4755 1010 1500
