Carter Small Crawler Excavator with Ce
| US$23,000.00-30,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CT60-9
Bucket
Backhoe
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
0.22m3
Size
Small-Scale
Certification
CE, ISO9001: 2000
Condition
New
Ground Pressure
34 Kpa
Power Output
36.2kw/2100rpm
Engine
Yanmar 4tnv94L
Travel System
Kyb, Japan
Hydraulic System
Kyb, Japan
Main Control Valves
Kyb, Japan
Swing System
Kyb, Japan
Bucket Width
750 mm
Max. Digging Height
5889mm
Max. Dumping Height
4201mm
Max. Digging Depth
3812mm
Max. Digging Distance
6257mm
Transport Package
Load 2 Units in One 40hq Container
Specification
5.8 ton
Trademark
Carter
Origin
China
HS Code
8429521200
Production Capacity
1200set/Year
Product Description
Name:Carter CT60-9 ExcavatorAdvantage Points:
1. Imported hydraulic system with dual pump and dual circuit, stable work performance, fast speed.
2. Guarantee for 2 yrs under normal use and maintenance
3. Imported hydraulic components, Japan made KPM main pump, Japan made KYB multi-circuit Valve, swing motor,Eaton travel motor, Japan made or South Korea made gasoline tank
4. On-line digital monitoring and control system
5. GPS satellite position and remote diagnose system(optional)
6. Cold&warm air conditioner supply under different kinds of weather conditions
7. Light and handy pilot operating system
8. Steel pedrail

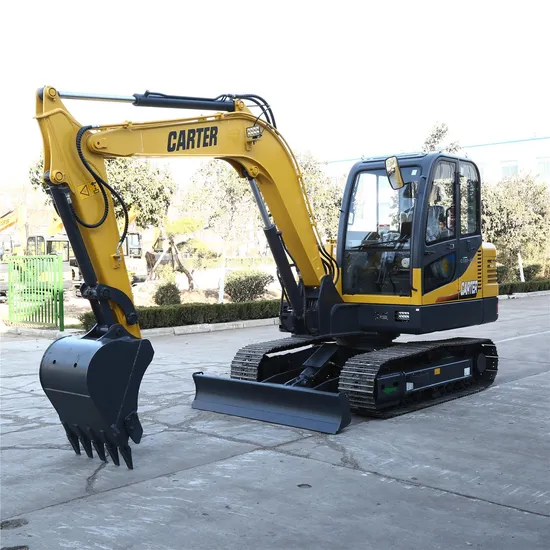

Products Pictures:
Specification:
| Engine | Travel System | |||||||||||
| Model | Yanmar 4TNV94L | Travel motors | KYB, Japan; | |||||||||
| Type | Direct injection, 4 stroke, water cooled, natural intake | Support roller quantities | 2×5 | |||||||||
| Carrier roller quantities | 2×1 | |||||||||||
| No. of cylinder | 4 | Travel shoes | 2X37 | |||||||||
| Bore and stroke | 94X110(mm) | Travel speed | 2.5/4.0(km/h) | |||||||||
| Displacement | 3.054L | Drawbar pulling force | 50.4kN | |||||||||
| Power output | 36.2kw/2100rpm | Gradeability | 70%(300) | |||||||||
| Max. torque | 193.2~210.6N.m/1260±100 rpm | Track shoes thickness | 6mm | |||||||||
| Hydraulic System | Cab & Electrical System | |||||||||||
| Pump | KYB, Japan | Cab | installed with silicon oil rubber, adjustable luxurious seat, cold and warm air-conditioning system plus flexible pilot control system | |||||||||
| Type | axial piston pump+ gear pump | |||||||||||
| Max. discharge flow | 160 (L/min) | |||||||||||
| Max. discharge pressure | ||||||||||||
| Boom, arm and bucket | 24.5 MPa | Voltage | 12V | |||||||||
| Travel circuit | 18.6 MPa | Batteries | 1x12V | |||||||||
| Swing circuit | 20.5 MPa | Battery capacity | 80Ah | |||||||||
| Control circuit | 3.9 MPa | Boom, Arm & Bucket | ||||||||||
| Pilot control pump | Gear type | Boom cylinder | Φ110xΦ65xS720-L1095 | |||||||||
| Main control valves | KYB, Japan | Arm cylinder | Φ85xΦ55xS880-L1280 | |||||||||
| Oil cooler | Air cooled type | Bucket cylinder | Φ80xΦ50xS600-L925 | |||||||||
| Swing System | Refilling Capacity & lubrication | |||||||||||
| Swing motor | KYB, Japan | Fuel tank | 125 L | |||||||||
| Swing motor type | Axial-piston motor | Cooling system | 15 L | |||||||||
| Brake | Hydraulic oil released | Engine oil | 10.5 L | |||||||||
| Parking brake | Hydraulic disc brake | Hydraulic oil tank | 78 L Tank Oil Level | |||||||||
| Swing speed | 10 r/min | 100 L Hydraulic System | ||||||||||
| Bucket | ||||||||||||
| Type | Backhoe bucket | |||||||||||
| Bucket capacity | 0.22m3 (SAE) | |||||||||||
| Bucket Capacity scope | 0.072-0.25m3 | |||||||||||
| Number of bucket teeth | 5 | |||||||||||
| Bucket width | 750 mm | |||||||||||
| Working Ranges | ||||||||||||
| Boom length | 3050mm | |||||||||||
| A | Max. digging height | 5889mm | ||||||||||
| B | Max. dumping height | 4201mm | ||||||||||
| C | Max. digging depth | 3812mm | ||||||||||
| D | Max. vertical digging depth | 3008mm | ||||||||||
| F | Max. digging distance | 6257mm | ||||||||||
| G | Max. digging reach at ground level | 6102mm | ||||||||||
| H | Min swing radius of work equipment | 2585mm | ||||||||||
| Digging Force (ISO6015) | ||||||||||||
| Arm length | 1580mm | |||||||||||
| A | Bucket digging force | 36.7 KN | ||||||||||
| B | Arm digging force | 26.1 KN | ||||||||||
| Overall Dimensions | ||||||||||||
| A | Overall length | 5943mm | I | Track grounding length | 2000mm | |||||||
| B | Ground contact length | 3375mm | J | Track length | 2665mm | |||||||
| C | Overall height(to top of boom) | 1995mm | K | Track gauge | 1600mm | |||||||
| D | Overall width | 2000mm | L | Track width | 2000mm | |||||||
| E | Overall height(to top of cab) | 2619mm | M | Track Shoe width | 400mm | |||||||
| F | Counter weight ground clearance | 740mm | O | Counter weight height | 1062mm | |||||||
| G | Min Ground clearance | 360mm | P | Revolving frame width | 1790mm | |||||||
| H | Tail swing radius | 1745mm | Q | Distance from swing center to tail | 1745mm | |||||||
| Operating Weight and Ground Pressure | ||||||||||||
| Operating weight includes basic machine; | ||||||||||||
| Operating weight | 5820 Kg | |||||||||||
| Ground pressure | 34 KPa | |||||||||||
