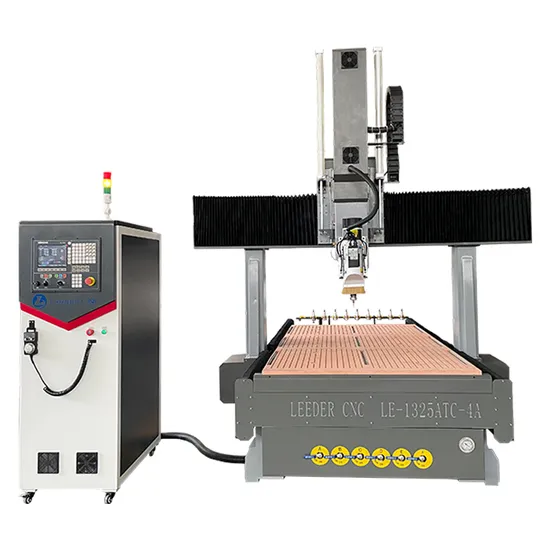

Multiple Spindle 4th Axis 1325 1530 2040 CNC Atc Router Machine

Product Description

Feature
# With linear tool magazine, 8/12/16 pieces tools changer, advanced and efficient.
# Chinese top brand HQD / Italy 9kw HSD ATC spindle, high quality and powerful.
# Adopt heavy duty structure design, ensure the strength and rigidity of the machine body.
# Adopt high precision linear rail, moving smooth and high accuracy.
# Configuration with servo motor, fast speed and control, high accuracy.
# Independent control cabinet, separation of strong electricity and weak electricity to make the maintenance more convenient.
# Famous brand Syntec/Weihong/LNC control system, multi functional.
Product Parameters

Model	LEW-1325ATC
Working area	1300 x 2500 x 200mm
Spindle	HQD 9kw
Spindle speed	18000-24000 rpm
Inverter	Fuling / Best
Control system	Syntec / NC STUDIO / LNC
Driving system	AC Servo
Table	Vacuum and T-slot aluminum /table
Transmission system	XY axis helical gear rack and Z axis Taiwan TBI ball screw
Guide rails	Taiwan high accuracy HIWIN/PMI square rails
Working accuracy	±0.05mm/m
Travelling speed	0 - 40m/min
Working speed	0 - 20m/min

Packaging & Shipping
Inner package: Stretch film and and water-proof film.
Outside package: Standard export plywood case / Container loading.
By sea/train/air, we can do EXW/FOB/CFR/DDU/DDP trading terms.
Payment
T/T 50% in advance and we start to manufacture this machine after receiving the payment.T/T 50% balance payment before shipping, and we will send you our machine pictures and testing videos to confirm. Then arrange the packing and shipping.

After Sales Service
Three years warranty. 7/24 after sale service. Customer will be able to get free training advice towards our machine in our factory. Can also get free suggestion, consultation, technical support and service by Email/Tel/WhatsApp/Skype, etc. Any question or problem, show us pictures or videos, and then we will try our best to help you as soon as possible.Free parts will be provided if broken not human reason within warranty.Engineer available to overseas service.
FAQ
Q: Which one is suitable for me?A: Tell us below information1) Max size of your material, to choose most suitable model.2) Maximum cutting thickness, materials to choose suitable power.3) Industry information and sample photos, we will recommend you best model based on our many years experience in this field.Q: How to install and run the machine?A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user's manual along with the machine. Most customers can learn by themselves.Q: How can I do if the machine goes wrong?A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We can provide WeChat/Whatsapp/Email/Phone, will response within 24 hours as quick as we can to solve it for you, till to solving all questions. Q: What's your MOQ?A: 1 set, we will give you support with our heart and soul.
