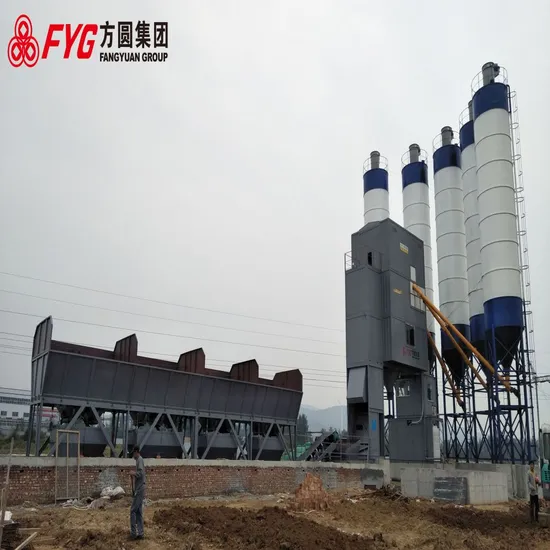

180cbm/H Skip Loading Method Concrete Mixing Plant
| US$154,687.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
HZS180D
Type
Concrete Mixing Plant
Productivity
120cbm/H
Certification
ISO9001: 2000, CE
Condition
New
Color
According to Customer′s Requirement
Trademark
FYG
Origin
Shandong China
HS Code
8474310000
Production Capacity
1000 Sets/Year
Product Description
| Item | Unit | HZS50D | HZS90D | HZS120D | HZS180D | |
| Nominal output/h | m³/h | 50 | 90 | 120 | 180 | |
| Mixer charging | m³ | 1 | 1.5 | 2 | 3 | |
| Batching machine | PLD1600-III | PLD2400Q-IV | PLD3200QD-IV | PLD4800QD-IV | ||
| Aggregate storage bins charging | m³ | 7 | 15 | 20 | 20 | |
| Aggregate storage bins qty | pc | 3 | 4 | 4 | 4 | |
| Aggregate weighing capacity | kg | 2000 | 3000 | 4*2000 | 4*3000 | |
| Cement weighing capacity | kg | 600 | 1000 | 1200 | 1600 | |
| Fly-ash weighing capacity | kg | / | 300 | 400 | 600 | |
| Water weighing capacity | kg | 250 | 400 | 500 | 800 | |
| Additive weighing capacity | kg | 40 | 40 | 50 | 80 | |
| Mixer power | kw | 37 | 2*30 | 2*37 | 2*55 | |
| Belt conveyor power | kw | 15 | 18.5 | 30 | 45 | |
| Total power | kw | 80 | 120 | 150 | 190 | |
| Mixer discharge height | m | 3.8 | 3.8 | 3.8 | 3.8 | |
| Total weight | t | 24 | 42 | 51 | 62 | |
| Outline dimension(L*W*H) | m | 17.7*10.4*19.4 | 30.8*15*19.4 | 34*13.2*19.4 | 40*19*18.5 | |
| Loading | skip hoist | |||||
| Weighing accuracy | Aggregate | % | ±2 | ±2 | ±2 | ±2 |
| Powder | % | ±1 | ±1 | ±1 | ±1 | |
| Water | % | ±1 | ±1 | ±1 | ±1 | |
| Additive | % | ±1 | ±1 | ±1 | ±1 | |
