Sunhans High Gain 698-2700MHz WiFi 4G Mobile Signal Booster Outdoor Antenna

Product Description

Sunhans 5dBi 698-960MHz/ 1710-2700MHz 4G Mobile Signal Booster Omni Antenna with Waterproof
Feature: Exquisite appearance Good impact resistance,waterproofing and anti-corrosion ability Full day working Optimized dimension High gain,low standing wave,strong anti-interference ability
Application
GSM/CDMA/PCS/3G/4G/WLAN system
Point-to-multipoint system

Electrical Characteristics
Frequency Range	698-960 / 1710-2700 MHz
VSWR	<3.0
Polarization	Vertical
Antenna Gain	5.0 dBi
Impedance	50 Ohm
Material
Connector Type	N Female
Material of Plastic	ABS
Environmental
Operation Temperature	- 45 ˚C ~ + 85 ˚C
Storage Temperature	- 45 ˚C ~ + 85 ˚C
Size	20.5*6.3 cm
Weigh	296g
Radome color	White

Testing Report,VSWR Curve
Antenna Radiation Pattern

Testing Equipment Specification:
Antenna Anechoic Chamber Dimension	7x3 x3 m
Isolation	>100dB @ 1 MHz ~ 10 GHz
Testing Equipment	Agilent E5071C
Received Antenna	0.4 ~ 6.0 GHz for Gain Calibration
Quite Zone	600mm @1 GHz
Double Ridged Horn Antenna

Antenna Installation Instructions

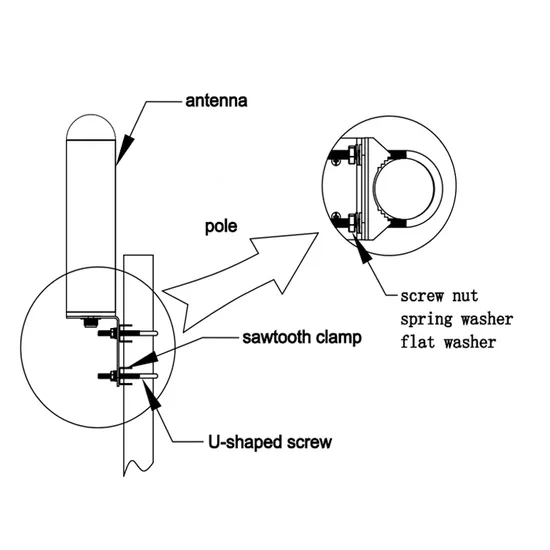

1. Install as the picture below
2. Installation Steps
1. Place the M6 U-shape screw through the holes on the clamps to mount the antenna to the pole whose outer diameter is ¢35~¢50mm.Then put on the flat washer,the spring washer and twist all the nuts.
2.There should be at least three meters between the ground or floor and the antenna above.No huge building or metal object or any other obstacle or shelter nearby.
3.Adjust the mounting height of the antenna to the proper position to receive the best signal,then seal all the connections.
4.Please pay attention to lightning protection.
