High-Tech Qte100dl Intelligent Control CE Certified Metal CNC Turret Lathe

Product Description

Product Description

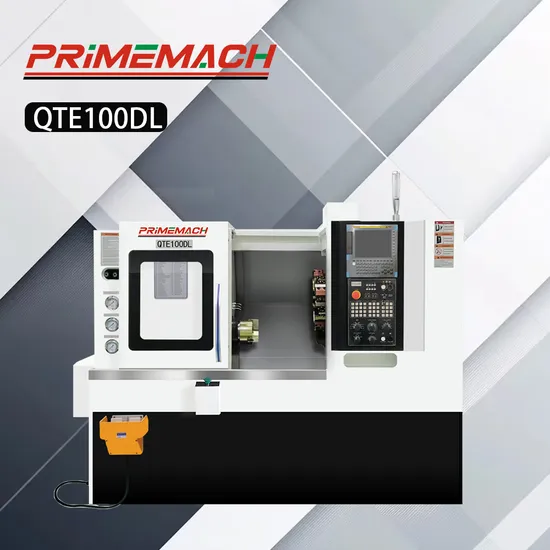

QTE100DL CNC lathe is a high precision, high efficiency CNC equipment, widely used in the field of machining, suitable for mass production of complex parts.With its high precision, high efficiency and versatility, it has become an important equipment in modern manufacturing industry and can meet a variety of complex processing needs.
Detail
The mechanical device used to clamp the workpiece on the machine tool, through the rotation and clamping action, to ensure the stability and accuracy of the workpiece in the process of processing, commonly used in lathes and other equipment.
Installed on equipment such as lathes or grinders, it is used to support longer workpieces, so that the workpiece maintains an accurate center line during rotation, improving processing accuracy and stability. The top has fixed top and movable top and other types, the gold top part may be cemented carbide material, with good wear resistance.
The interior of the electrical control cabinet contains various electrical components such as frequency converters, relays, contactors, etc., as well as a large number of wires and terminals. These components work together to achieve the power supply, control and protection functions of the equipment, which is the core control part of the automatic operation of the equipment.

CNC control system	GSK 980TC3
Maximum turning diameter	Φ 500 mm
Max machining diameter x length	Φ 350 x 350 mm
Spindle through hole diameter	Φ 56 mm
Maximum bar material machining diameter	Φ 46 mm
Maximum spindle speed	4200rpm
Spindle end form	A2-5
Chuck size	6inch hollow chuck/collet
X axis maximum travel	420mm
X axis fast moving speed	20m/min
Maximum z-axis travel	500mm
Z-axis fast moving speed	20m/min
Number of tools installed on the tower	8t
Outside diameter tool bar height	25*25mm
Inside diameter Maximum diameter of tool bar	32mm
Tailstock travel	255mm
Center stroke	100mm
Top model	MT-5
Tailstock pressure	5-20kg
Spindle motor	7.5 kw
Total machine power	20kw
Cooling tank capacity	160L
Machine height	1700mm
Floor area (length * width)	2350*1600mm
Gross machine weight	2800kg
SYNTEC/FANUC system	Tail seat thimble
High pressure effluent 30Bar	Chip cleaner
7.5KW electric spindle	/

Company Profile
Anhui Primacon Intelligent Equipment Co., Ltd. is an Anhui Province SMEs and a national high-tech enterprise. Located in the beautiful city of Tongling, Anhui Province, the company focuses on the research, development, production and sales of multi-axis CNC lathes and machining centers. Introducing advanced technology from Germany and Japan, is committed to improving the quality of machine tools and high level of application, and we also offer automation integration services. Our products are mainly used in fields such as automotive manufacturing, aerospace, mold manufacturing, engineering machinery, and general equipment industry.
The company's main products:
1.High precision CNC lathe HQT series, QTE series; 2.High-precision turning and milling composite series; 3.Vertical, Horizontal, Gantry Machining Center series. We always adhere to the breakthrough innovation, deep plowing expertise, continue to strive forward!
Exhibition
Our Advantages
Certifications
Packaging & Shipping
FAQ
Q: What machining functions do your machining centers support?
A: Our machining centers support drilling, tapping, milling, boring, and turning functions, with multi-axis options (such as 3-axis, 4-axis, and 5-axis) to meet the needs of complex workpiece machining.
Q: What is the precision of your CNC lathes?
A: The machining precision of our CNC lathes typically ranges from 0.001mm to 0.003mm. Depending on the model, higher precision can be customized upon request.
Q: Can the machines be customized according to customer requirements?
A: Absolutely! We support customization of machining range, spindle power, automation level, and fixture and tooling configurations to meet your production needs.
Q: Can you provide automation solutions?
A: Yes, we can provide automation solutions, including automatic feeding systems, robotic arms, and production line integration.
Q: What does your after-sales service cover?
A: Our after-sales service includes providing detailed operation manuals, instructional videos, and remote technical support to help customers quickly learn how to operate the equipment. Additionally, we maintain dedicated service records for each customer to monitor equipment performance and ensure long-term stability. We also supply spare parts and respond promptly to customer inquiries and needs to ensure proper equipment functioning.
Q: What should I do if the machine breaks down?
A: If the machine breaks down, you can contact our after-sales team at any time. We offer remote video diagnosis, phone guidance, and, if necessary, dispatch engineers for on-site repairs.
Q: How long is the delivery time?
A: Standard models usually require 30-45 days for delivery. For customized models, the delivery time may take 60 days or longer, depending on the complexity. The exact delivery time will be confirmed with the order.
Q: How are the machines packaged and transported?
A: Our machines are packaged with waterproof and rustproof materials, reinforced with sturdy wooden crates, suitable for sea and long-distance transportation to ensure the products arrive at your specified location in perfect condition.
Q: What payment methods do you accept?
A: We accept various payment methods, including T/T bank transfers and Letters of Credit (L/C). Please contact us if you have other requirements.
Q: Do you have export experience?
A: Yes, we have been exporting machines to many countries worldwide for years and are familiar with export procedures, including customs declaration, clearance, and providing relevant certificates such as CO, invoices, and packing lists.
