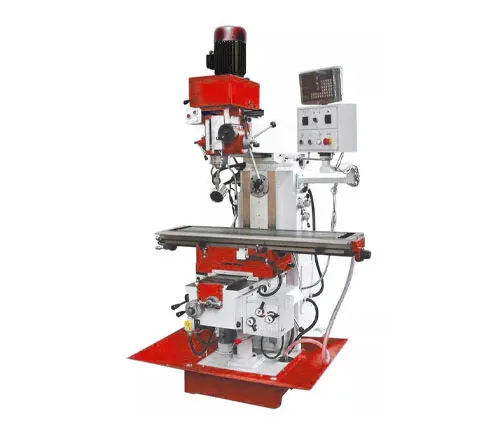

China Factory Good Quality Direct Sales Milling Drilling Machine Zx6350zs Drilling Milling Machines
| US$4,550.00-4,880.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
ZX6350ZS
Milling Cutter Type
Vertical Milling Cutter
Controlling Mode
Artificial
Automatic Grade
Automatic
Precision
High Precision
Certification
CE
Condition
New
Length
1710mm
Width
1720 mm
Net Weight
1700kg
Worktable Dimensions
1370 X 320 mm
Longitudinal Travel
800 mm
Transversal Travel
330 mm
Vertical Travel
350 mm
Max Load Over Worktable
300 Kg
Horizontal Motor Power
3HP
Vertical Motor Power
3HP
Transport Package
Wooden Case
Specification
ZX6350ZS
Trademark
KY
Origin
China
Production Capacity
150-200 Sets /Month
Product Description
| 1. General datas | ZX6350ZS |
| Table angle | ± 45° |
| Worktable dimensions | 1370 x 320 mm |
| Longitudinal travel | 800 mm |
| 1000 mm | |
| Transversal travel | 330 mm |
| Vertical travel | 350 mm |
| Max load over worktable | 300 kg |
| 2. Vertical spindle | |
| Spindle taper | ISO 40 |
| Spindle speed number | 8 |
| Spindle speed range | 108 ~ 2400 rpm |
| Spindle travel | 127 mm |
| Distance between spindle and surface of column | 780 mm |
| Distance between spindle and surface table | 180 ~ 580 mm |
| Headstock swivel angle | ± 90º |
| Torpedo travel curse | 460mm |
| With dovetail guide width | 256mm |
| 3. Horizontal spindle | |
| Spindle taper | ISO 40 |
| Spindle speed number | 12 |
| Spindle speed range | 48 ~ 1560 rpm |
| Distance between spindle and surface table | 20 ~ 410 mm |
| 4. Motors | |
| Vertical motor power | 3 hp |
| Horizontal motor power | 3 hp |
| Feed motor power (longitudinal and transversal) | 0.75 hp |
| Feed motor power (vertical) | 1 hp |
| 5. Machine dimensions | |
| Length | 1710 mm |
| Width | 1720 mm |
| Height | 2330 mm |
| Net weight | 1700 kg |
| 6. Diameter Screw | |
| X Axis | 32MM |
| Y Axis | 32MM |
| Z Axis | 44MM |
ZX6350ZS Drilling and Milling Machine OEM FEATURES: Conventional milling machine without clp or cnc control, with transmission by gears lubricated in oil, vertical head with 8 variable speeds changed by positioning levers rotations between 108 to 2400rpm, horizontal spindle with transmission by gears lubricated in oil with 12 variable speeds changed by positioning of levers with rotations between 48 to 1560rpm, both with ISO-40 cone, TABLE OR SWIVEL TABLE with dimensions 320mm x 1370mm and NR12 protection fairing with interlock key, Axes stroke X 1000mm, Y 330mm, Z 350mm, Table spindle X diameter 32mm pitch 6mm, Y spindle of the table diameter 32mm pitch 6mm, Z spindle of the table diameter 44mm pitch 6mm, with electric motor drive, torpedo with 460mm stroke, vertical motor power 2.2kw, horizontal motor power 2.2kw, vertical column with square bus 260mm width of guide. Electrical controls installed on a panel with an articulated arm on the right side of the machine. SWIVEL Table with lateral rotation of 45 degrees to the right and left.
