Metal High Precision Vertical Drilling Machine Z5132 Square Column Universal Drilling Machine

Product Description

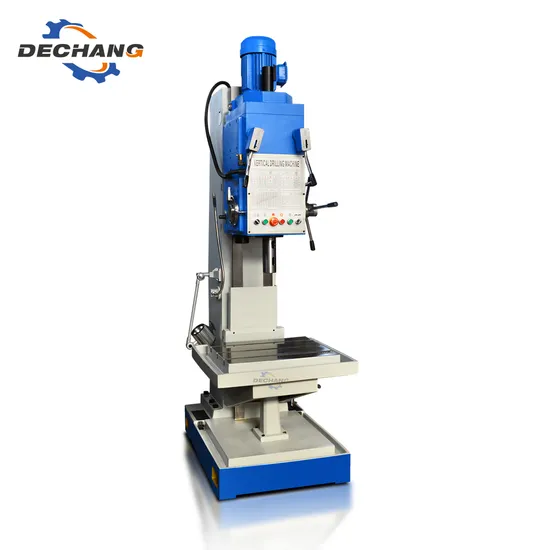

Metal high precision vertical drilling machine Z5132 Square Column Universal Drilling Machine

Product Description
Product description:
1.This vertical drilling machine is universal type machine tool. This machine is suitable for drilling, reaming, milling, drilling, boring, tapping countersunk hole etc.. Automatic reverse feed spindle tapping and fretting, for blind and deep hole is very convenient. Widely used in machinery manufacturing, workshop production and construction processing, etc..
2.This machine tool has the advantages of high efficiency, good rigidity, high precision, low noise, wide speed range, high speed operation, novel appearance, convenient maintenance and so on.
Main technical specifications:

Specifications	Z5125	Z5132
Max drilling dia	25mm	32mm
Max feed resistance	9000N	9000N
Max. spindle allowable torque	160N.m	200N.m
Spindle taper	Morse No. 3	Morse No. 4
Distance from spindle axis to column guideway	280mm	280mm
Spindle travel	200mm	200mm
Spindle box travel	200mm	200mm
Spindle speed	50~2000r/min(9)	50~2000r/min (9)
The amount of feed(mm/rev)	0.056-1.80mm/r (9)	0.056-1.80mm/r (9)
Working table stroke	310mm	310mm
Working table surface size	400×550mm	400×550mm
Distance from spindle nose to table surface	710mm	710mm
Main motor power	2.2kw	2.2kw
Cooling pump flow	25L/min	25L/min
Overall dimension	980*807*2302mm	1050*680*2010mm
N/W	950kg	950kg
