Premium Stainless Steel Slitting Line for Sheet Metal Processing

Product Description

Overview
Basic Info.

Type	Pipe Cutting Machine	Coil Width	1650mm
Line Speed		Sheet Thickness	0.5~5.0mm
Coil Weight		Coil Material
Slitting Accuracy	0.5mm	Transport Package	Nude
Capacity	1650*0.5~5.0mm	Origin	China
Manufacture year		Machine Color	Green and Blue

Product Description

No	Item	Numerical value
1	Coil Width	1650mm
2	Sheet Thickness	0.5~5.0mm
3	Line Speed
4	Coil Weight
5	Coil Material

Technological Process
Configuration

Num	Details include
1	Entry car
2	Uncoiler
3	Leveler
4	Looper
5	Precision Leveler and Measuring Device with Fixed Length device
6	Hydraulic System
7	Run Out Table
8	Lifting palletizer
9	Coil car
10	Hydraulic System
11	Electrical Systems And Equipment
12	Control Cabinet And Operating Table
13	Winder
14	Cutter blade

Indroduction
A slitting line is a series of machines used to slit broad steel coils into narrower coils with specific width. The full width coil was first uncoiled and flattened into flat strip. The strip is then slit into narrower strips of narrower required width. The strips are then be recoiled into smaller coils.The equipment is controlled by PLC control system which ensures high precisely slitting and easy operation.The slitting line can be equipped with auto coil position correction which allows the uncoiler to automatically adjust its position along the signal from the coil position sensor.

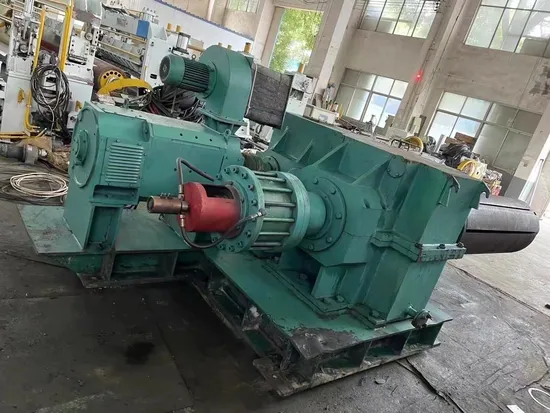

Detailed Photos


Product Parameters

Coil Specification
1	Material	δb≤470-630Mpa δs≤345-385Mpa
2	Coil thickness	0.5 - 5.0mm
3	Coil width	500~1650mm
4	Coil I.D.
5	Coil O.D.
6	Coil weight
7	Cutter shaft diameter	260mm
Line specification
1	Line speed
2	Power of cutter shaft	75KW
3	Power of recoiler	110KW

Company Profile
Foshan Shunde jinyujie mechanical and Electrical Equipment Co., Ltd. (hereinafter referred to as jinyujie mechanical and Electrical Equipment Co., Ltd.): the company was established in 2001, the main business is the acquisition and transfer of second-hand welded pipe units, and one-stop to provide customers with installation, commissioning, maintenance, customization and other services. Focusing on the high frequency welded pipe industry for 30 years, 17 years of high frequency manufacturing and service experience. In the past 17 years, we have provided more than 2000 enterprises with high quality products and one-stop service support. Second hand welded pipe production equipment and accessories, talent and technology war.
A large number of second-hand real source, rapid integration of the entire second-hand welded pipe production line. Installation and commissioning services can be provided at home and abroad to ensure the rapid production of qualified steel pipes. Long term cooperation with a number of welded pipe equipment manufacturers, complete spare parts. Adhering to the development concept of "honesty, pragmatism, creating value for customers", we are committed to providing valuable services for customers.

Packing and Shipment
Our customer and partner
After Sales Service
The sample service
1.We can send you the video of the running machine.
2.You are welcome to come to visit our factory,and see the machine running.
Customized service
1.We can design the machines according your requirements,at the same time we will give you our professional suggestion,as you know,we have been in this industry for many years.
After-sales service
1.We will delivery the machine and provide the bill of load on time to make sure you can get the machine quickly.
2.We often ask feedback and offer help to our customer whose machine have been used in their factory for some time.
3. 12 Months guarantee and life-long technical support.
4.Well-trained & experienced staff are to answer all your inquiries in English and Chinese.
5.24 hours for engineer response.
6.Your business relationship with us will be confidential to any third party.
7.Good after-sale service offered,please get back to us if you got any questions.
Quality Control
Our engineer would test the machine to ensure the machine running smoothly.
