Single Point Load Cell Miniature Aluminum 100g High Precision Bending Beam Load Cell
Basic Info.
Model NO.
LP47C
Out-Wire
4-Wire
Output Signal Type
Analog Type
Feature
Low Temperature Resistant
Production Process
Normal Wirewound
Material
Stainless Steel
IP Rating
IP65
Certification
RoHS
Customized
Customized
Transport Package
Carton
Specification
80*12.7*12.7
Trademark
XG
Origin
China
HS Code
9031809090
Production Capacity
900000PCS/Year
Product Description

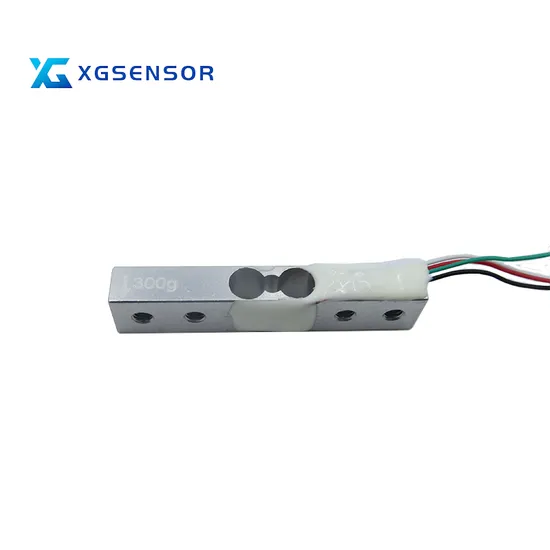

Company ProfileProduct picture
Product size drawing
Product parameter list
| capacity | g | 300g 500g 750g |
| Rated Output | mv/v | 0.8±0.15 |
| Non-linearity | %F.S | 0.05%F.S |
| Hysteresis | %F.S | 0.05 |
| Repeatability | %F.S | 0.05 |
| Creep | %F.S/3min | 0.05 |
| Temp.effect on zero | %F.S/10ºC | 0.05%F.S |
| Temp.effect on span | %F.S/10ºC | 0.05%F.S |
| Zero balance | mv/v | ±0.05 |
| Input impedance | Ω | 1000±6 |
| Output impedance | Ω | 1000±5 |
| Insulation resistance | MΩ | ≥2000(100VDC) |
| Recommended excitation voltage | VDC | 3~10 |
| Allowed excitation voltage | VDC | 3~12 |
| Compensated temp.Range | ºC | -10ºC~+40ºC |
| Operating temp.Range | ºC | 0ºC~+40ºC |
| Safe overload | %F.S | 120 |
| Ultimate Overload | %F.S | 150 |
| Connection | Excitation: Red:+ Black:- | |
| Signal: Green:+ White:- | ||
We can also provide peripheral supporting parts of the load cell, such as load cell display, load cell transmitter, load cell mounting bracket and other supporting parts
OEM customization
We can carry out OEM customized design and manufacture according to your ideas to achieve the functions and application scenarios you need.
Customized service
We have an excellent design team, which can provide customized design services according to the functions, precision and application you need.
