Vertical Lathe Vtc100 Motor Shell Dedicated Heavy-Duty CNC Vertical Lathe

Product Description

Product Description
Customizable/support on-site installation and debugging services
VTC100

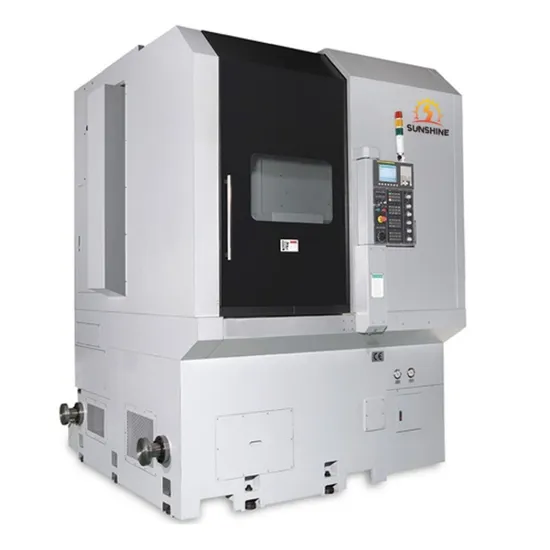

Vertical lathe VTC100 motor shell dedicated heavy-duty CNC vertical lathe

The application fields of CNC vertical lathes are very wide, such as aerospace, medical equipment, energy, transportation, automobile manufacturing, mold manufacturing, heavy machinery manufacturing, new energy and many other industries and fields. It can process parts such as gearboxes, clutch housings, engine cylinders, crankshafts, gearboxes, transmission gears, discs, pulleys, etc. Rough and fine integrationVertical heavy cutting
Product Parameters

Specification		unit	VTC70	VTC80A	VTC100A
Stroke	X axis	mm	700	670	850
	Z axis	mm	0-850	170-1020	0-1000
Processing capacity	Maximum rotation diameter	mm	φ800	φ1000	φ1200
	Maximum turning diameter	mm	φ700	φ800	φ1000
	Maximum turning height	mm	850	850	1000
Spindle	Spindle speed	rpm	100-800	100-800	100-800
	Spindle motor power	Kw	22	22	22
	Spindle diameter	mm	φ160	φ180	φ200
Hydraulic chuck + tool Turret	Chuck model	Hydraulic chuck
	diameter	inch	21"	24"	32"
	Turret station		Four workstations/ eight workstations	Four workstations/ eight workstations	Four workstations/ eight workstations
guide	X-axis rolling linear guide		2 pieces, width 45mm	2 pieces, width 45mm	2 pieces, width 55mm
	Z axis rolling linear guide		2 pieces, width 55mm	2 pieces, width 55mm	2 pieces, width 55mm
CNC system	Standard configuration		GSK	GSK	GSK
Cooling system	cooling motor	W	750+1.2kw	750+1.2kw	750+1.2kw
	Pump output	m³/h	4m³/h	4m³/h	4m³/h
Accuracy	Repeatability	mm	±0.003	±0.005	±0.005
	positioning accuracy	mm	±0.06	±0.08	±0.08
	smallest positioning unit	mm	0.001	0.001	0.001
Weight and dimensions	Dimensions (approx.)	mm	2400×2100×3200mm	2400×2100×3600mm	3100×2650×3700mm
	Gross weight (approx.)	Kg	8000	9000	13500

Configuration
Standard configuration
GSK CNC system
Taiwan servo turret
Three-jaw hydraulic chuck
Taiwan linear guide
Taiwan ball screw
Optional
CNC system Fanuc, Siemens, HNC
Taiwan powered turret
Manual chuck/four-jaw chuck/special tooling
Linear guide THK
Ball screw THK
Automation accessories Robot/automatic feeding device/automatic door
Detailed Photos
Hydraulic turret
The internal structure adopts cam design, accurate segmentation angle, fast tool change speed, suitable for precision cutting
The turret rotates, suitable for hydraulic motor, large and stable torque
The turret tightens and loosens with hydraulic power source, the action is smooth, suitable for heavy cutting.
Hydraulic chuck
Hydraulic chuck can automatically complete the clamping and loosening of the workpiece, improve work efficiency, maintain a stable clamping force, and effectively prevent the workpiece from loosening or falling off. The clamping force of the hydraulic chuck can be adjusted as needed to meet the processing requirements of different workpieces.
High rigidity structure
Based on the combination of high rigidity structure and precision line rail, the optimized design is carried out through finite element calculation to meet the processing range while reducing the size of the machine tool and increasing the rigidity.
Spindle
Adopting high-speed, high-precision, high-rigidity unit assembly structure, the spindle bearing adopts NN series bearings, which ensures the rigidity and strength of the spindle unit, and the effective contact surface reaches more than 95%, so as to ensure the best stability of the spindle when rotating at high speed.
