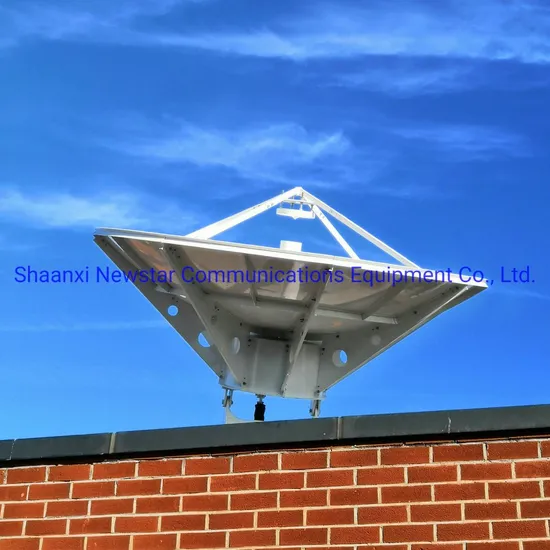

8 Feet Ka Band High Efficiency Fix Ground Antenna
| US$6,000.00-10,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
NS-SEC-240
Usage
Satellite Communication
Wave Range
Ka Band
Type
Outdoor
Antenna Diameter
2.4m
Operational Band
Ka Band
Polarisation
Circular Polarisation
Reflector Material
Aluminum
Mount Type
EL. Over Az.
Drive Mode
Manual
Transport Package
Wooden Box
Specification
2.4m
Trademark
Newstar
Origin
China
Production Capacity
60 Sets Per Month
Product Description
8 feet ka band high efficiency fix ground antennaCharacteristics:
1.Meets or exceeds CCIR 580 and INTELSAT requirements
2.Ring Focus antenna;
3.High gain, Low sidelobe, high G/T rate;
4.Hot-dip zinc processed Antenna mount, with strong corrosion resistant ability;
5.Optional C band with 870 MHZ bandwidth;
6.2-ports or 4 ports Linear/Circular feed optional;
Accessories:
Foundation drawing, foundation template, anchor bolts, electric equipment, antenna controller, antenna driver, driver motor, limit switch, cable, connector, lightning rod and wire;
Optional:
Deicing equipment, ODU support, electric polarization;
ELECTRICAL SPECIFICATIONS
| Model | NS-SEC-240 | ||||
| Ka-band | |||||
| RX | TX | ||||
| Frequency, GHz | 17.7~21.2 | 27.5~31 | |||
| Gain,Mid-band, dBi | 51.63@19.95GHz | 55.1@29.75GHz | |||
| Pol | Circular | ||||
| Axis ratio | 2-Port Feed 4-Port Feed | 1.5 1.0 | 1.5 1.0 | ||
| VSWR | 1.25:1 | 1.25:1 | |||
| Noise temperature (2-Port Feed) | 10°elevation 20°elevation 30°elevation | 122°K 81°K 76°K | / | ||
| -3dB Beamwidth, Mid-band | 0.44° | 0.29° | |||
| Feed interface | WR-42 | WR-28 | |||
| Isolation,Rx to Tx,dB | 85 | ||||
| First sidelobe | ≤ -14 | ||||
| Side lobe envelop | 29-25 log(θ) dBi 1°≤θ≤20° | ||||
| Size | 2.4 m | ||||
| Type | Ring focus | ||||
| Mount type | El over Az | ||||
| Driver model | Manual/Motorized | ||||
| Panel qty | 8pcs | ||||
| Panel material | Aluminum | ||||
| RMS | ≤0.3mm | ||||
| Turn range | Az El Pol | 0°-360° for manual antenna 0°~90° ±90° | |||
| Wind speed of work | 72kmph work wind speed(Hold the precision ) 97kmph work wind speed(Lower the precision ) 200kmph Survival Winds(Upturned lock) |
| Ice Load, Survival | 13mm Wrapped ice normal work 25mm Wrapped ice survival |
| Temperature | -30ºC~50ºC |
| Relative Humidity | 100% |
| Surface treatment | Steel parts: thermal-spraying zinc Aluminum parts:spray paint |
| Solar Radiation | 1135Kcal/h/m² |
