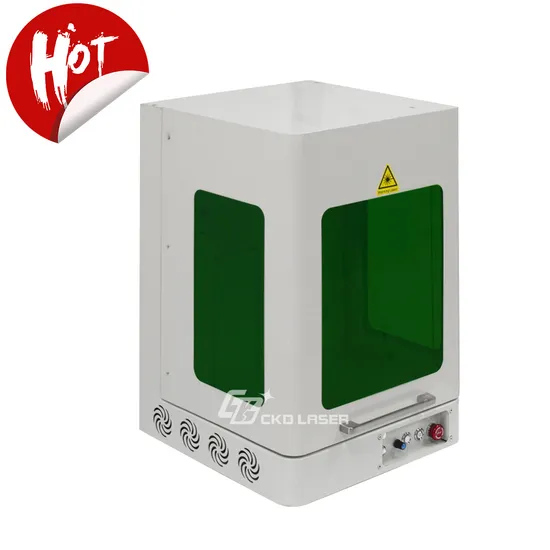

Enclosed Mini Logo Printing Machine for Marking Engraving Computer Parts Pens Metal Phone Case Plastic Numbering Steel Etching Jewelry PC Business Card

Product Description

ADVANTAGES
* Full enclosed, exhaust smoke no odor
* Radiation protection, protect eyes
* Alarm function when complete process or other warning, works without supervision
* Automaticlly easy focusing
* Mini body 35Kg, big marking scope, big power
FOR HOME/ FOR BUSINESS / FOR INDUSTRY
Electronic products, daily necessities, packaging, gift, craft, auto parts, digital products, communication goods, building materials, electrical appliances, kitchenware, jewelry, sanitary ware, medical apparatus, advertising making, photovoltaic product, commodity, hardware, and so on.
PROCESS MATERIAL
All metal: stainless steel, copper, aluminum, gold, silver, titanium, alloy, etc.
Some non-metal: ABS, PVC, acrylic (non-transparent), ceramic, EP, HDPE, PC, plastic alloy, ink and paint face, etc.
FUNCTION
* Marking vector diagram, real photo, scale, annular graph (colorfull or black or white)...
* Printing logo, company name, special design...
* Coding QR code, Bar code, series number automatically..
* Engraving deeply metal sign, symbol, tattoo on material...
* Rotary mark on ring, bracelet, (Yeti / bracelet) cup...
CONFIGURATION

CONFIGURATION	STATE	STATE	REMARK
Laser source	CKD-SMLC-20	Optional: 20W Q-switched or 20W MOPA	MOPA used for color marking, pealing or some special effect
	CKD-SMLC-30	Optional: 30W Q-switched or 30W MOPA
Marking scope of lens	CKD-SMLC-20	Optional: 100*100/150*150mm	The smaller the stronger laser when same power of laser source
	CKD-SMLC-30	Optional: 100*100/150*150/200*200mm
Easy focusing	Automatically	Two red dots, focus up or down by buttons
Computer	Optional	Computer language: English as basic, you can choose your language after receiving
Marking Software	EzCad2	Language: English, Chinese, Korean, Japanese	available for Windows 7/8/10
Control Board	BJJCZ	Original newest version
Rotary	Optional	chuck diameter: 50mm	For jewelry marking
	Optional	chuck diameter: 80mm	For cylinder marking
Foot switch	Standard	One way of start laser marking conveniently	Useful when batch process
USB cable	Standard	Link machine to computer
Plug	Optional	Standard of Asia/ Europe/ American
Dimension	cm	40*40*60
Gross weight	Kg	35
Power	W	500	220V, 60Hz / 110V, 50Hz
		600

Carton packed in small package, VIP quickly shipping door to door by express.
"CKD LASER" machines sale to the USA, UK, France, Italy, Germany, Spain, Austria, Russia, Lebanon, Ukraine, Iran, Turkey, kazakhstan, Afghanistan, Pakistan, tajikistan, kyrgyzstan, turkmenistan, belarus, Australia, Singapore, Malaysia, Thailand, India, Indonesia, South Korea, Algeria, Tunisia, Morocco, Congo, South Africa, Brazil, Chile, Colombia, Peru, Argentina and other countries, and have a local service in some countires above.
CONTACT US:
Please send your inquiry or place order with certain configuration directly by following dialog box, we will reply you immediately.
Please tell us your application if you need configuration suggestion.
