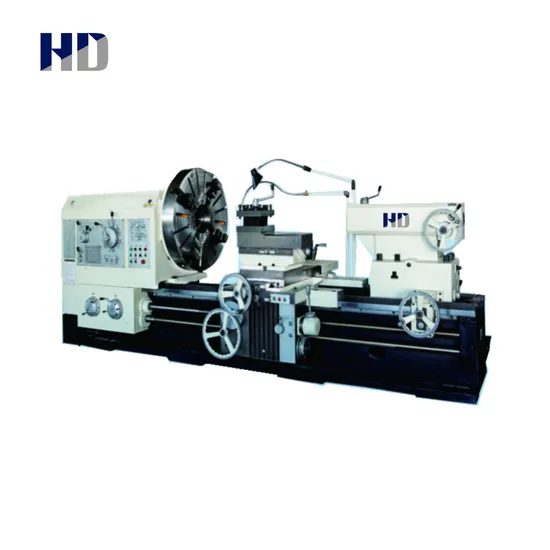

Heavy Duty Horizontal Lathe Cw6263/Cw6280/Cw62100/Cw62125
Basic Info.
Model NO.
CW6263
Type
Horizontal Lathe
Processing Accessory
Other
Guide Rail
Horizontal Guide Rail
Tool Holder
Other
Power Source
Hydraulic Pressure
Controlling Mode
Artificial
Automatic Grade
Manual
Setting Mode
Floor-type
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Machine Type
Manual Lathe
Max.Swing Over Bed Diameter
630-1250mm
Max. Swing Over Gap
800mm
Width of Bed
550mm
Max Weight of Work Piece
2000kg
Center Distance
1000/1500/2000/3000/4000mm
Max.Turning Length (with Gap)
850/1350/1850mm/2850/3850mm
Max.Turning Length (Without Gap)
550/1050/1550mm/2550/3550mm
Max.Swing Over Cross Slide
350mm
Spindle Hole Diameter
104mm
Spindle Taper
Metric 1201:20
Spindle Center
Morse 5
Spindle Speeds
7.5- 000r/Min
Longitudinal and Cross Feeds Range(Kinds
64 Kinds
Transport Package
Wooden Cases
Specification
6155*1455*1575mm
Trademark
HAIDI
Origin
China
HS Code
8458990000
Production Capacity
30 Sets/Month
Packaging & Delivery
Package Size
646.00cm * 176.00cm * 188.00cm
Package Gross Weight
6380.000kg
Product Description
Specification Parameter
| Items | CW6263 | CW6280 | CW62100 | CW62125 |
| Max.swing over bed diameter | 630mm | 800mm | 1000mm | 1250mm |
| Width of bed | 550mm | 600mm | 755mm | 755mm |
| Max weight of work piece | 2000kg | 3000kg | 6000kg | 6000kg |
| Center distance | 1000/1500/2000/3000/4000mm | 1500/2000/3000/4000/5000/6000/8000mm | 1500/3000/5000/6000/8000mm | 1500/3000/5000/6000/8000mm |
| Max.turning length (with gap) | 850/1350/1850mm/2850/3850mm | 1350/1850/2850/3850/4850/5850/7850mm | 1350/2850/4850/5850/7850mm | 1350/2850/4850/5850/7850mm |
| Max.swing over cross slide | 350mm | 480mm | 615mm | 865mm |
| Spindle holediameter | 104mm | 104mm | 130mm | 130mm |
| Spindle taper | Metric 120 1:20 | 1:20/120 | 1:20Metric No.140 | 1:20Metric No.140 |
| Spindle speeds | 7.5-1000r/min | 18 kinds 5.4-720r/min | 21 kinds 3.15-315r/min | 21 kinds 3.15-315r/min |
| Sleeve diameter | 100mm | 100mm | 160mm | 160mm |
| Sleeve taper | Morse 5 | Morse 6 | Morse 6 | Morse 6 |
| Sleeve travel | 250mm | 250mm | 300mm | 300mm |
| Main motor | 11kw | 11kw | 22kw | 22kw |
| Rapid feed motor | 1.1kw | 1.1kw | 1.5kw | 1.5kw |
Company Profile
Dalian Haidi Machinery Co.,Ltd is a professional manufacturer that specializes in the development, research and production of single-column vertical lathe, double-column vertical lathe, horizontal lathe, radial drilling machine, slotting machine, boring-milling machine, machining center, customized special machine tool, and other equipment. The researched products by our company have such advantages as a great variety, complete specification, advanced technology and outstanding quality.
Our company, founded in June 2007, has a registered capital of RMB 60 million Yuan and covers a building area of 30,000 square meters. Now we have more than 200 staff members, including 11 senior engineers, 8 senior managerial staff,over 160 technical workers.
Our own casting factory was established in 1983 and has an annual output of over 20,000 tons. Our company is the largest enterprise that specializes in the casting of machine tool in southern Liaoning.In the meantime, it has offered great support to speed up our company's product research and production and made great contribution to making sure products are supplied to customers in the shortest duration.
Our company follows the principle of "independent innovation, govern enterprise by good virtue and prosper enterprise by good faith". We shall work hard persistently to make innovation and breakthrough and strive to become a first-rate enterprise. We would like to work hand in hand with all our friends toward a brilliant future.
Exhibition Photos
Certificate
Packing&Shipping
FAQ
