Fully Automatic Digital Plotter Corrugated Cardboard Cutting Machine CNC Carton Box Making Machine

Product Description

CNC, we have developed a complete automated fabric cutting solution that is easy to use, saves time and fabric. The sofa automatic fabric cutting machine can solve the standards that manual cutting cannot achieve. In this article, I will share professional knowledge to let you really understand how to make your fabric cutting process fast, smart and worry-free!

Model No.	JK-2513-15
Operating System	Independent research and development control system
Y Axis	Servo System with Reducer for yAxis
Linear Guide	Taiwan #20 Linear Square GuideWay for X, Y Axis
Vacuum Pump	9kw Vacuum Pump
Specification	1300*2500mm
Origin	Dongguan, China

Working Voltage	380v 3phase,50Hz
Software	CAD, engraving and other software
Transmission	Helical Rack Gear 1.25m for X and
Table	Vacuum Table
Transport Package	Wooden Box
Trademark	JEKE
Production Capacity	200 Sets Per Monthvibrating KnifeCNC Machine for

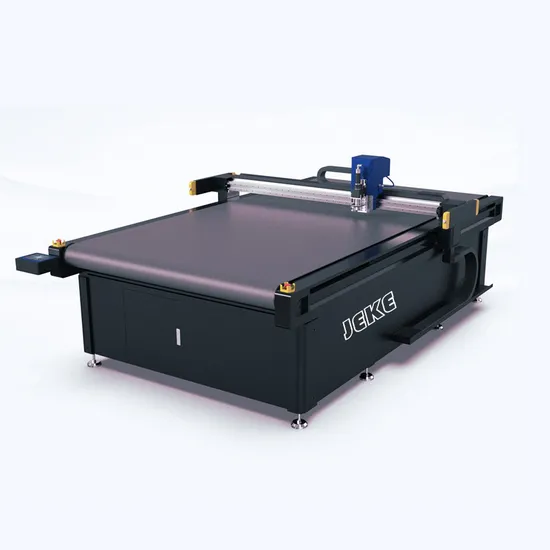

Detailed Photos
Model: JK2513Brand: JEKEApplicable cutting materials:different kinds of materials, such as PVC, foam composite material, car seat, embroidery accessories, XPE, coiled mats, silicone, rubber, truck tarpaulin, gasket,etcApplication: widely used in automotive interior industry.Functions: cutting(oscillating cutting tool). Optional cutting tool: the cutting tool is optional according to customer's requirements, such as Oscillating cutting tool.Features: Oscillating knife cutting, fast speed, high efficiency; saving material and labor, more convenient and easier to operate for user.
Working principle It uses a high-frequency vibrating blade for cutting. The blade vibrates at a specific frequency driven by the motor, and can easily cut various materials such as cloth, leather, rubber, plastic, paper, etc. This vibration cutting method makes the cutting edge more neat and smooth, reducing the waste of materials.

Product Parameters

X Y Z travel	1300*2500*80mm
Cutting speed	Adjustable according to the thickness of the material
X, Y, Z, axis motion positioning accuracy	0.2mm/300
X/Y/Zbearing	Japan NSK precision matching bearing
Tool head	Electric tool head amplitude up to 20000 times pneumatic tool head amplitude up to 8000 times
main shaft	2.2KW air-cooled
cutting system	CCD (Small camera)
Lead screw	High precision Taiwan TBI screw
Drive motor	Huichuan servo motor
Transmission mode	Serial port/Ethernet port
cache	2GB
Control system	Independent research and development control system
CNC panel	Chinese and English LCD touch screen
Peripheral software	CAD, engraving and other software
Safety protection	Japanese original Omron fire switch contact emergency stop
limit switch	Japan original Omron optocoupler
cable	Mechanical tow cable (resistant to bending 12 million times)
Planetary reducer	Japan Nugel high precision planetary reducer
Electric cabinet	embedded
power	Taiwan original Ming-weft power supply
Positioning system	Laser intelligent positioning (Cross light)
Aluminum honeycomb for aviation	Fixed platform + tracking fractional adsorption + Shanghai Journal top density 4.2mm breathable tablecloth
External dimension	Width 2350* Length 3360* height 1675mm
machine weight(roughly)	1020KG
power	220V50HZ machine 380V50HZ fan
Rated power of the whole machine	12KW
Z axis	Electric knife, pneumatic knife, engraving spindle, CCD vision, laser light

PS:All the working area and specifications can be customized according to your requests.
Machine Details:
1. Increased Productivity
Oscillating knife technology enables fabric, nylon, canvas, nonwoven cutting machines to achieve extremely high cutting speeds without compromising quality. This significantly increases productivity and enables mass production of apparel, home textiles, and other fabric products.
2. Precision Multi-Layer Cutting
The oscillating motion of the oscillating knife facilitates precise cutting of multiple layers of fabric in one go. This stacked cutting capability is ideal for industrial applications that require high-volume production of sample pieces.
3. Minimize Fabric Damage
Unlike rotary blades, oscillating knives apply even pressure across the entire cutting edge, reducing friction and heat buildup. This results in a clean cut with less fabric deformation, edge wear, or burn marks.
4. Longer Blade Life
Oscillating blades experience less wear than rotary blades because there is no grinding action during the cutting process. As a result, oscillating blades can last up to 10 times longer, reducing overall replacement costs.
5. Customizable Settings
The oscillation frequency and cutting pressure of the oscillating knife can be customized based on fabric thickness and density. This ensures optimal performance for a wide range of materials.

Company Profile

Dongguan Diao Bao Automation Equipment Co., Ltd.
From China to the world
Diaobao CNC Equipment Co., Ltd. is a company that integrates production, sales, and research and development. It is committed to providing automation equipment manufacturing for global users, and upholds the product development concept of high efficiency, intelligence, environmental protection, and compatibility. Since its establishment, Diaobao CNC has developed rapidly and has two standardized intelligent equipment manufacturing bases with a total area of over 10,000 square meters. It is specialized in five-axis engraving machines, vibrating knife cutting machines, woodworking engraving machines, stone engraving machines, advertising engraving machines, mold precision engraving machines, and CNC engraving and milling machines. The products have passed ISO9001 certification and are reliable in quality and complete in variety. They are exported to the Middle East, Africa, South America, and other regions. They operate stably in the woodworking industry, model industry, mold industry, blister industry, packaging industry, clothing industry, automotive interior industry, leather cutting industry, etc. They have a wide range of benchmarking customer examples. Professional independent core research and development team and well-established after-sales technical department truly provide customer-centric service experience.
After Sales Service

Pre-Sales Service * Inquiry and consulting support. * Sample testing support. * View our Factory. *More than 95% of the timely response rate, timely response to customer questions After-Sales Service * Training how to install the machine, training how to use the machine. * Engineers available to service machinery overseas. * Use online contact methods such as skype whatsapp facebook to provide online services to customers. Packaging & Shipping

Our Advantages
We provide customers with automated production equipment that replaces skilled workers and reduces labor costs.We equip our machines with automated typesetting software that provides customers with an optimal layout plan, maximizes material utilization and avoids wasted material.Our equipment is easy to operate. The digitalized processing transforms "old-fashioned" repetitive work (typesetting, changing size, etc.) into one operation, making it more "user-friendly," reducing employee turnover and its negative effects on production.Digital production enables a seamless cooperation between machine and man that has never before been possible.The efficiency of our machines is unparalleled and the supply cycle is shortened, which makes our customers become the leaders once again in a highly competitive industry.
FAQ

A: First, you should share something on the material (L*W*H,breathable or not) to be processed and other specific requirements, such as additional drawing function, punching holes function,etc. We will make first round judgement based on our experience. If necessary, we will make demo cutting for you, then we will share the video with you and discuss the possible solution. Q: This is the first time I use this kind of machine, is it easy to operate? A:We will send you manual and guide video in English, it can teach you how to operate the machine. If you still can not learn how to use it, we can talk by phone, email or other contact ways. Q: If the machine has problem in my place, how could I do? A:We could send free parts to you in warranty period if machines have any problem under "normal use". Q:What is the warranty and quality of this machine? A:Warranty normally 1-3 years, consumable except. during warranty period any accessories or parts damaged will replce by us for free. We are machine manufacturer in china more than 20 years,Our machine are senior engineers and designers developed, we consider anyone aspect when using, so rarely appear quality problem, this is why we can gurantee customers warranty 1 years. Q:What is the Price and payment terms? A:EXW,CIF,FOB we all can accept payment:TT/Paypay/LC/Western Union.etc Q:Delivery time A:some small machine will delivery within 10 day, big machine will deliver within 20-30 days Q: What's the package? A: Film packaging+wooden case. Fumigation-free plywood case is also available. Q: What is the shipping cost from China to my country? A: It depends on the distance between you and the sea port. We offer door to door service as long as you pay the relevant cost. For the shipping cost you can ask for our advice or from the freight forwarder. Q: Where is your factory located? How can I get there? A: Our factory is based in dongguan,Guangdong,province,China. You can fly toShenzhen. We can pick you up at the air station or train station. Q: Is there any after sales service? A: We have integrated after sales service. Besides our own experienced engineers, we also offer local after sales service through the help of our agents. All this will make you convenient.
