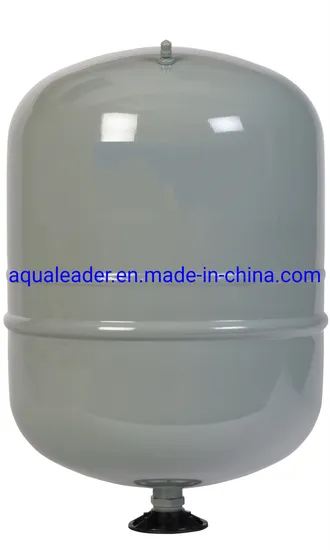

Professional 2 Gallon Thermal Expansion Tank for Water Heaters

Product Description

Product Description
Customized Hydronic Expansion Tanks

Orientation	Model	Capacity	Maximum Acceptable Volume (@ 20 PSIG)	Dimension		Weight
				A	B
	X	US Gallon	US Gallon	Inch	Inch	LBS
Inline	TY-01-2AG	2	1.53	8-1/4	10-3/16	5
	TY-01-5AG	5	3.75	11	14-3/4	9
	TY-01-7AG	7	4.6	11	21-1/16	14
	TY-01-14AG	14	10.5	15-3/8	23-1/2	25

How a Diaphragm Expansion Tank Work
When water is heated in a closed system, it expands. Water is not compressible, therefore, the additional water volume created has to go someplace. When an expansion tank is installed, the excess water enters the prepressurized tank (figure 3). As the temperature and pressure reaches its maximum, the diaphragm flexes against an air cushion (air is compressible) to allow for increased water expansion (figure 4). When the system is opened again or the water cools, the water leaves the tank and returns to the system.
Water System
Single Diaphragm Pressure Vessel
A range of reliable vessels, available in 10 and 16 bar pressure ratings and sizes from 3 to 200 litres. The series is constructed of a virgin polypropylene liner combined with an NSF Certificated high grade butyl diaphragm, which is held against the wall of the tank with a steel clench ring. The tanks design includes rounded internal parts to prevent piercing and a unique connection providing a dual water/air seal for a complete leak and maintenance free vessel.
Solar Aqualeader tanks are quality tested at several stages on the production line to insure the structural integrity of every tank. Solar Aqualeader tanks represent the best value for the investment and are the best quality pressure vessels available today.
Specifications Single diaphragm design 100% potable quality butyl,we also have EPDM Membrane For Irrigation Purpose. Patented 316/304 stainless steel connection. Virgin polypropylene liner, so no water touches plain steel. Internal clench ring becomes more secure at higher pressures. High quality two part polyurethane, epoxy primed paint finish - Almond. Brass stemmed air valve and O-ring sealed valve cap,we have our own patent pressure valve.No need any maintaince during life time. CE, WRAS,KC,Water Mark/UPC/SGS approvals. Maximum temperature up to 99 °C. Standard maximum pressure 150 PSI / 10 Bar.For Super Aqualeader ,we have appied 240 psi/16 bar 1-5 Year Warranty According To Clients Requirements Materials Diaphragm: high grade butyl Liner: polypropylene Clench ring: steel Air valve: brass Valve cap: threaded o-ring Water connection: stainless steel SUS 304/SUS316 Exterior: steel Pump stand: Engineering plastic Market Sectors: (Applied with different membrane---Butyl/Epdm) Domestic Commercial Agricultural Industrial Irrigation Mining Applications Water booster systems Thermal expansion Irrigation systems Hydraulic hammer arresting Technical Parameter

Model	Tank Volume	Maxi Working Pressure	Diameter	Height	Connector	Package
x	Liter	Bar	mm	mm	Inch	cm
TY-11-0.3G	2	10	130	180	3/4,1	64X64X23.5/10 Pcs
TY-11-0.5G	3	10	130	210	3/4,1	64X64X23.5/10 Pcs
TY-11-1.1G	4	10	160	270	3/4,1	16x16x27
TY-11-1.5G	5	10	200	280	3/4,1	20x20x28
TY-11-2G	8	10	200	340	3/4,1	20x20x34
TY-11-2G-W	8	10	200	340	3/4,1	20x20x34
TY-11-3G	12	10	220	360	3/4,1	23x23x37
TY-11-4.5G	19	10	270	400	3/4,1	27x27x40
TY-11-4.5G-W	19	10	270	380	3/4,1	27x27x38
TY-11-6.3G	24	10	270	450	3/4,1	27x27x45
TY-11-9.3G	36	10	320	470	3/4,1	32x32x47
TY-14-11G	60	10	395	640	1	39.5x39.5x64
TY-14-15G	80	10	440	720	1	44x44x72
TY-14-22G	100	10	440	830	1	44x44x83
TY-14-33G	150	10	440	940	1	44x44x94
TY-14-44G	200	10	440	120	1	44x44x120
TY-12-2G	8	10/16	220	340	3/4,1	22x22x34
TY-12-2G-W	8	10/16	220	320	3/4,1	22x22x32
TY-12-3G	12	10/16	260	360	3/4,1	26x26x37
TY-12-4.5G	19	10/16	290	400	3/4,1	31x31x40
TY-12-4.5G-W	19	10/16	290	380	3/4,1	31x31x38
TY-12-6.3G	24	10/16	295	460	3/4,1	31x31x46
TY-12-9.3G	36	10/16	360	470	1	36x36x47
TY-12-11G	60	10/16	420	540	1	42x42x54
TY-12-15G	80	10/16	460	580	1	46x46x58
TY-12-22G	100	10/16	460	700	1	46x46x70

Company Profile

Taizhou Tianyang Electrical co.,LTD. Is located in Shangma industrial Zone,Shitang Town,Wenling City,Zhejiang Province,covering an area of 15,000 square meters.Our Company has over 30 years experience in mold design and exploition. "DEZHI"and "AQUALEADER" are our proprietary brand of our company.We have produced pressure tank for more than 20 years.Available volumes range from 0.5 to 1500 liters.and working pressure from 4 bar to 25bar. Our products are applied to pump systems .Our products are exported to numerous overseas clients.We can custom design and manufacture products according to client-supplied requirements.
We adhere to the business philosphy"Credibility,Quality and service",our scientific management is based on the domestic market, but facing to the world.Warmly welcome customers both domestic and from abroad.We sincerely hope to cooperate and develop together to create a better future.
Taizhou Tianyang Electrical Co.,Ltd. Is always your most loyal partner.
1.Q: What is your MOQ of this item?
A: We are a factory, have stock. 1PCS is ok!
2.Q: What is the delivery time?
A:35-45 days after receiving orginal L/C or deposit by TT.
3.Q: Is it all right to make customer's own brand name?
A: Yes we supply OEM service. Please send us a authorization doc.
4.Q: Where is your Loading Port?
A: Ningbo, Zhejiang, China.
5.Q: What are your payment terms? For Bulk Quantity Purchase
A: 30% deposit and balance T/T against copy of Bill of Lading or L/C at sight.
For Samll amount Trial Order ,Please arrange the full payment
6.Q: What is your company's available production capacity?
A: 90000~120000 pieces of Pressure Tank per month
