China M4 Standard Room Double Girder Monorail Hoist

Product Description

Construction Lift Equipment 10t Single Girder Electric Wire Rope Hoist
Product Description
LHC Standard room Monorail hoists (also known as the square electric hoist) refers to the latest professional standards at China and abroad, and can be combined with a lifting capacity of 1.6T-20T, a lifting height of 6M-96M, and a working class of M3-M5 Series electric hoist.
LHC Standard room Monorail hoists is widely used in factories, mines, railways, docks, warehouses and service industries. It is lifting equipment that can adapt to a variety of working conditions.
Advantages of LHC wire rope electric hoist:
Use planetary reducer to reduce speed, high transmission efficiency, low noise, compact structure, omit the intermediate shaft, square appearance, easier to install and fix. The lifting hook is equipped with a locking device to prevent accidental slippage of the rigging. The motor is equipped with a thermal protection device. When the temperature of the motor is too high, the device will automatically cut off the circuit to protect the motor from damage. This machine adopts cam limit, with high limit precision. High safety and reliability: The machine can be equipped with a load-limiting protection device to avoid adverse consequences caused by overloading. Product Parameters

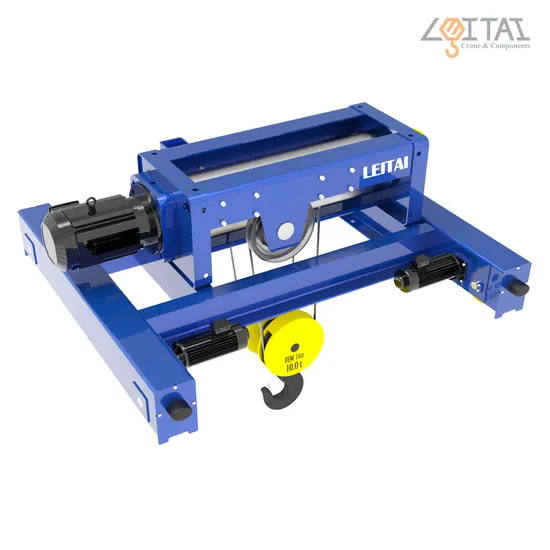

LHC-Series Double Girder Wire Rope Hoist

Capacity (t)	Work Duty	Lifting Height (m)	Lifting Speed (m/min)	Traveling Speed (m/min)	Rope Reeling	Lifting Motor Power (kW)	Travelling Motor Power (kW)	Rail Gauge S(mm)	H (mm)	C (mm)	IP Class
2	M4	6	7.2 7.2/0.72	20	2/1	3 3/0.4	0.25×2	1000~1800	557	550	IP44 IP54
		9
		12
		18
		24
		30
3.2	M4	6	7.2 7.2/0.72	20	2/1	4.5 4.5/0.4	0.25×2	1000~1800	557	550	IP44 IP54
		9
		12
		18
		24
		30
5	M4	6	7.8 7.8/0.78	20	2/1	7.5 7.5/0.8	0.25×2	1000~2000	597	650	IP44 IP54
		9
		12
		18
		24
		30
3.2	M4	6	3.6 3.6/0.36	20	4/1	3 3/0.4	0.25×2	1200~1800	557	550	IP44 IP54
		9
		12
		15
6.3	M4	6	3.6 3.6/0.36	20	4/1	4.5 4.5/0.4	0.25×2	1200~1800	557	550	IP44 IP54
		9
		12
		15
10	M4	6	3.9 3.9/0.39	20	4/1	7.5 7.5/0.8	0.4×2	1200~2000	602	650	IP44 IP54
		9
		12
		15

ACCESSORIES:
PRODUCTION:
