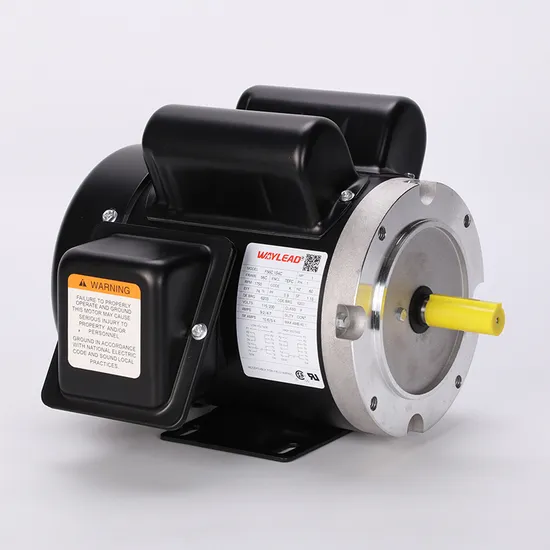

Single Phase Air Compressor Motor with CSA UL Rolled Steel Shell

Product Description

Product Parameters

Air Compressor Motor Single-Phase Air Compressor AC Nema Motor Features: HP: 1-10HP Frame: 56-215t, single-phase AC motor Start torque: Tst=250% Service factor: 1.0, 1.15, or specially design an requirement Insulation class B. F. H, UL approved Enclosure: TEFC IP class: IP44/IP54 CSA&CUS certified Accept manual protector

Detailed technical data:

HP	RPM 60HZ	NEMA FRAME	MODEL	VOLTES	ENCL.	S.F	EFF%	WGT LBS
1	3600	56	F561S2C	115/208-230	TEFC	1.15	76	30
	1800	56	F561S4C	115/208-230	TEFC	1.15	74.5	38
1.5	3600	56	F561.5S2C	115/208-230	TEFC	1.15	74.5	41
	1800	56	F561.5S4C	115/208-230	TEFC	1.15	77	37
2	3600	56	F562S2C	115/208-230	TEFC	1.15	77	42
	1800	56	F562S4C	115/208-230	TEFC	1.15	77	45
3	3600	145T	F145T3S2C	115/208-230	TEFC	1.15	83	67
	1800	182T	F182T3S4C	208-230/460	TEFC	1.15	82	88
5	3600	184T	F184T5S2A	208-230/460	TEFC	1.15	84	95
	1800	184T	F184T5S4A	208-230/460	TEFC	1.15	82	96
7.5	1800	213T	F213T7.5S4A	208-230/460	TEFC	1.15	82.3	149
10	1800	215T	F215T10S4A	208-230/460	TEFC	1.15	84	161

Our Advantages
Why do you choose us?
• Quality Control
Waylead is committed to meet and exceed each client's quality expectations and industry standards throughout the process of the motor design, development and manufacturing. It is the reason why we have the ability of producing motors with high reliability, high accuracy, smooth movement, and low noise & heating & vibration.
• Competitive Price
We have our own manufacturing bases and we have two factory until now. Due to large-scale production, centralized purchasing, qualified workforce, efficient assembly line and unified business process, we can control and cut our production cost. Subsequently, we can offer you the pretty competitive factory-direct price to save your purchase cost.
• Applications Experience
We have an engineering team with many years of experience in motor design and application engineering. We have solved numerous complex motion control problems with both standard and custom solutions. If your application demands anythingunusual or unique, we can provide you custom design to optimize the product's performance for your needs.
