787mm 1tpd Automatic Tissue Paper Making Machine Tissue Paper Machine Price

Product Description

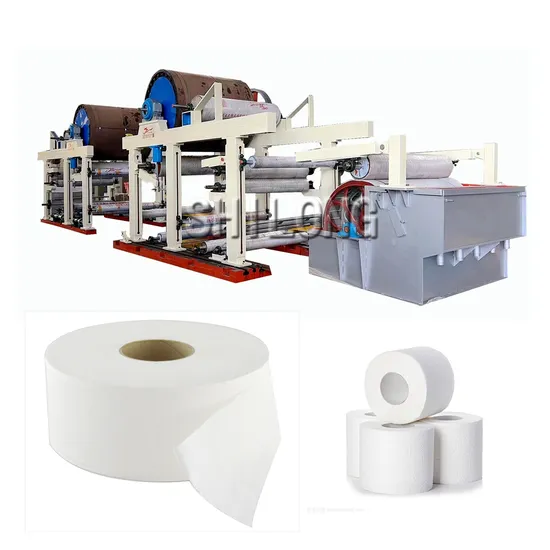

Product Description 787mm Toilet Paper Making Machine
Toilet tissue paper machine is the specilized equipment to produce all kinds of daily use paper.Toilet tissue paper machine is divided into fourdrinier type and cylinder type,working speed can be 160-200 m/min, the net paper width can be customized, the gram weight of paper can be 14-30 g/m2,the production capacity can be 1-20tons per day.We can recommend best suitable configuration according to customer's requirement.
Toilet paper machine adopts forward pulp hang type to feed pulp. Paper machine mainly consists of felt washing, cylinder mould part, drying part, reeling, driving and gas hood. Speed of the equipment is fast and paper quality is good. Easy to operate and no training for a long time. Toilet paper machine mainly divided into these parts: headbox, fourdrinier wire part, press part, drying part and reeling part.
Product Parameters

Product name	SL-787 toilet paper making machine
Paper width	787mm
Paper weight	14-30g
Working speed	40-60m/min
Transmission mode	Reducer drive
Design speed	80m/min
Yield	0.8--1t/d
Power	7.5kw

Detailed Photos
Detailed Description
Structure and characteristics of 787mm toilet paper machine:
1.Cylinder section:Φ700mm×1100mm stainless steel cylinder mould 1set, Φ260mm×1100mm couch roll 1set,coated by rubber,rubber shore hardness 38°C±2.2.Dryer section:Φ1000mm×1100mm cast iron alloy dyer can 1 set, Φ300mm×1100mm touch roll 1set,1group scraper knife. rubber shore hardness 90°C±2.Mechanical pressure device.3.Drive and control section: Alternating current , speed control , section drive.
4.Pneumatic medium: compressed air 0.6MPa Grade 3 industrial compressed air standard
Raw Material:
Wood pulp, waste white shavings, waste notebook, waste paper with ink as raw material.
Product Process
Company Profile
Certifications
Packaging & Shipping
FAQ:
1. How long is your Warranty?--All our products will have one year guarantee and we will continue to offer advice and spare parts after this period.Within 1 year after receiving our machines, under right operation and non-artificial reasons, If there are any damaged parts or accessories, we will replace them by air-mail or express immediately free of charge.After 1 year warranty, Spare parts and damaged parts will be charged at cost price. If there is something wrong with the machine, we are responsible to solve this problem soonest, and help customers to restore production as soon as possible.2.Can you make paper mill design for us ?--Yes, we have professional team with rich experience of paper mill design by CAD software. You only need to tell us your open land dimension, we will make your future paper mill design.3.What's the payment terms?--30% initial payment when place your order, 70% balance payment before shipment.4.How about your machine quality,we are worry about the quality. --Jindelong is a mature brand in china, 30 years manufacturing experience of different kinds of paper machines. We strictly manufacture and manage according to IOS9001:2008 System. And can match all the CE standard or more strict standard. Our paper machine is running well in more than 20 countries. 5.Could your engineer teach and train our worker?--Yes, we will send rich practiced experience engineers to your country to install and test the machine and train your workers, but you should pay them salary.
