Electric Circular Saw Accessories---Tct Saw Blade --TUV Certification

Product Description

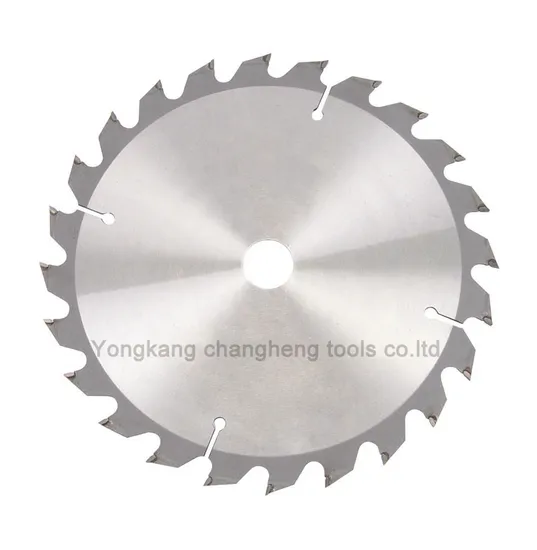

TCT Saw Blade
It's designed for cutting both dry hard and soft wood and also can be used to cut shaving board, wood fible board, joinery panel.
Item numble: CH-001
Tooth model: ATB
The specification:
Diameter: 110mm-500mm(4"-20")
Body thickness: 1.5-3.0mm
Cutting wide: 1.8-3.2mm
Hole dimater: 20, 20/25.4, 25.4/30mm
Tooth number: 20T, 30T, 40T, 60T, 80T, 100T, 120T
Advantage:
1. Carbide tipped cutting teeth, bright polished surface, shot blasted.
2. Longer life than steel blades.
3. Tooth shape: ATB, Square Top Tooth, TCG, etc. Other tooth shapes available.
4. For cutting wood, plastics and non-ferrous metal sheet.
According to the different demand of the market, these products can go to General type, Professional type and Industry type. Other specification is available
Specification List

Order No.	Out Diameter		Body Thickness (mm)	Kerf (mm)	Hole Diameter (mm)	Teeth Number
	INCH	Metric
CH-0025	4"	110mm	1.5	2.4	20	20T 30T 40T
CH-0026	5"	125mm	1.5	2.4	20	30T 40T 50T 60T
CH-0027	6"	150mm	1.5	2.4	20/25.4	30T 40T 50T 60T
CH-0028	7"	180mm	1.5	2.4	20/25.4	40T 50T 60T
CH-0029	8"	200mm	1.5	2.4	20/25.4	30T 40T 60T 80T 100T
CH-0030	9"	230mm	1.8	2.8	20/25.4	40T 60T 80T 100T
CH-0031	10"	250mm	2.0	3	20/25.4	40T 60T 80T 100T 120T
CH-0032	12"	300mm	2.1	3.2	25.4/30	40T 60T 80T 100T 120T
CH-0033	14"	350mm	2.4	3.4	25.4/30	40T 60T 80T 100T 120T
CH-0034	16"	400mm	2.5	3.6	25.4/30	40T 60T 80T 100T 120T
CH-0035	18"	450mm	3.0	3.6	25.4/30	40T 60T 80T 100T 120T
CH-0036	20"	500mm	3.0	3.8	25.4/30	40T 60T 80T 100T 120T
