Stainless Steel Almond Mill Grinder Sprayer

Product Description

Product Description
Welcome to Jiangyin Haixiang Machinery Co.,Ltd
We specialize in this industy have more than 10 years.
We have professional engineer and sales team.

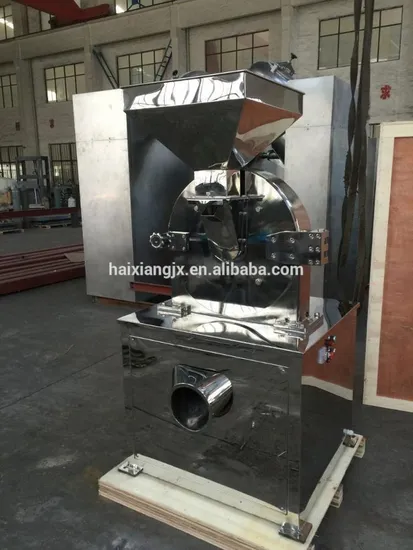

Model B Universal Crushing Set
Main Application:
Model B Universal Crushing Set is used in the industries of pharmaceutics,chemical,food and etc.
Operating Principle:
By means of relative motion between movable and fixed discs,material is crushed through impact and friction of the teeth
and impact among the material.The machine is designed according to GMP standard and made of stainless steel.The advantage of
it are simple structure,high production capacity and convenient cleaning.Currently it is the pretty ideal one among coarse crushing machines.

Nowadays, Jiangyin Haixiang Machinery Co.,ltd have customers both in China and abroad.Foreign customers such as Russian,East Europe,
Middle East,South America,North America,East Asia,Southeast Asia, Africa,etc.

Model	Production Capacity (kg/h)	Spindle speed (r/min)( rpm)	Feeding Size (mm)	size of output granules (crushing fineness) (mesh)	crushing Motor Power (kw)	overall dimension mm	Weight KG
15B	10-50	6000	6	60-120	2.2	550*400*850	85
20B	60-150	4500	6	40-120	4	550*600*1250	180
30B	100-300	3800	6	40-120	5.5	600*700*1450	250
40B	160-800	3400	10	40-120	7.5	800*900*1550	360
60B	300-1000	2800	12	40-120	15	900*900*1880	550
80B	400-2000	2000	12	40-120	22	1100*950*1960	850
100B	500-3000	1500	12	40-120	30	1350*1000*2100	1200

custom-made service


different kinds of grinding machine
1.side discharge
2.bottom discharge
3.esay dust collector
4.pulse dust collector

Packaging & Shipping

Company Information


about us
FAQ
• Which payment terms can we accept?
• Normally we accept T/T term, sometimes Western union or others for old client.
On T/T term, 30% down payment is required in advance, and 70% balance shall be settled before shipment.

• I'm not sure if this machine can deal with our product?
• Products like this will be OK: , small granule diameter less than 6mm, such as sugar, salt, rice, corn, starch, oats, wheat flour etc.

• One model can be available for various mesh?
• Yes, one model can choose different screen stencil for meeting various mesh.

• As a oversea buyer, I wonder if you could send us engineer for installation and maintenance?
• The machines are test without problem before shipping. Just connect to power the machine will work. We will always do our best to solve your problem whatever in one year warranty or not, and you need not to pay for unnecessary in reasonable price.

• I worry about there is a difference of supply voltage between our countries.
• Usually our power supply is 3p 220/415v 50/60HZ, and we will confirm your supply voltage when we are going on business .
