2024 Stone Carving Machine Marble Granite Engraving CNC Router

Product Description

Product Description

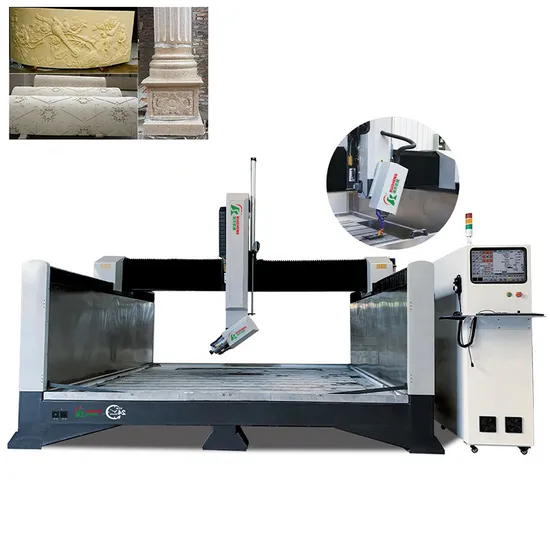

The Stone CNC Router 4 Axis Stone Engraving Machine is the perfect tool for precision stone carving and engraving. With advanced 4 axis capabilities, this machine allows for intricate designs and detailed engraving on tombstones and other stone surfaces. The tombstone engraving machinery is equipped with high-quality components to ensure durability and reliability. Whether you are a stone carving professional or a business looking to expand your services, this machine is the ideal choice. Enhance your productivity and create stunning stone engravings with the Stone CNC Router 4 Axis Stone Engraving Machine.
Advantage
1.Four Axis CNC Router is specially designed for many kinds of stone processing. The machine is suitable for engraving various types of stone, for instance granite, marble, quartz, artificial stone, sandstone etc. The main functions of this machine include carving, making tombstone, making countertop, making relief, embossing, cutting, seamless stitching, lettering, hollowing out, surface treatment, table milling.
2.For Y guide rail, usually it adopts 2-2.5cm width in domestic, but we use 3.0cm width which has the advantages of large bearing capacity, stable operation and high presicion.
3.The machine have multifunction according to the requirements. It can increase a rotating axis, for more carving processing requirements, for example, column, vase, stone lion, balustrade column, Roman column and so on
4.Adopt domestic famous water-cooled brushless frequency spindle motor, with strong cutting, low noise, can be a long continuous work. Can optional Italy imported air cooling electric spindle, with high speed, high efficiency.
5.The whole machine adopts robust structure, powerful spindle motor, precise and efficient control system, coming with professional software. It is easy to install and operate.
6.This machine can swing 180° Carving can effectively solve the problem of large angle carving of stone arc plate and flower cap.

Model NO.	RS3015-1D(4 Axis)
Platform Dimension:	3000*1500mm
Working Size:	2900*1400mm
Machine Body:	Thickened Steel (10mm)
Working Table:	Aluminum T-Slot Table with PVC Plate
Transmission:	X Y Axis Helical Rack; Z Axis Ball Screw
Feed Height:	≤1000mm
Air Speed:	15m/min
Processing Speed:	12m/min
Spindle Power:	5.5kw-7.5kw Water Cooling Spindle (Frequency Conversion)
Spindle Speed:	6000-24000rmp/min
Drive:	Servo Drive
Motor:	Servo Motor
Reducer:	JZ8098
Lubrication:	Automatic Lubrication
Coolant System:	Industrial Coolant System
Water Tank:	Stainless Steel
Operating Voltage:	AC220V/50HZ or AC380V/50HZ
Engraving Tool:	Φ6/8/10/12/14/16mm
File Format:	G code/HPGL
Positioning Accuracy:	±0.02mm
Repeatability:	±0.01mm
Control System:	NC Studio
Machine Dimension:	4300*2300*2300mm
Weight:	3200kg

The engraving machine can be customized
Detailed Photos
Packaging & Shipping
After Sales Service
1.Training how to instal the machine, training how to use the machine.
2.Engineers available to service machinery overseas.
3. Lifetime technology maintenance in free and spare parts supply.
4.Technical support all working days
5.Good knowledge on different market can meet special requirements.
