Factory Price High Precision Universal Vertical Hydraulic Surface Grinder Sruface Grinding Machine Price M4080 M3060 M250 M618 My1022 My1224 My30100 Sp2506

Product Description

Product Description

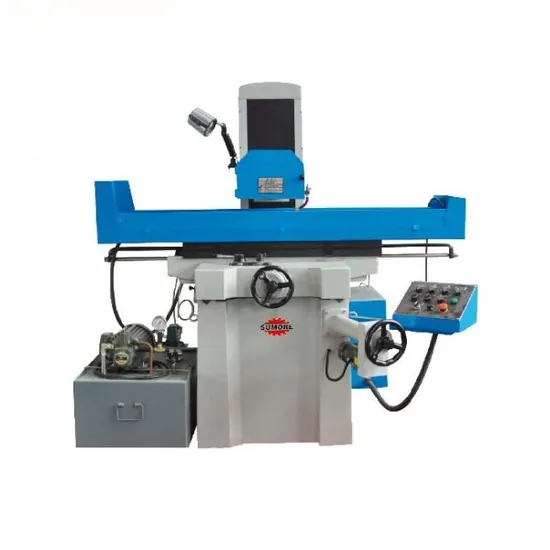

Factory Price high precision Universal Vertical hydraulic Surface Grinder sruface Grinding Machine Price M4080 M3060 M250 M618 MY1022 MY1224 MY30100 Sp2506
The main features are as below
Adopt the exceeding precise class7 (P4 level) ball bearing for spindle. Surface Grinder(hydrulic grinding machine) is a good quality metal surface grinding machine, which is made in China, but have similar quality as Japan surface grinder. It has good design and high quality.
Quick details
1.Table size:500*250mm
2.Max grinding length:560mm
3.Wheel size:200*20*31.75mm
4.Spindle motor:1.5KW
Featurs/Advantages
High rigidity & high sealing ensure no vibration- Accuracy
Digital size controller -Longer machining Accuracy
Simple operation
Suit for fine Grinding, Lapping and Polishing etc
Table size 600X300 economic
High quality and reasonable prices
Could work with many different material
COLOR AND BRAND could be custimized
Pre, main and post load position can be controlled by simple setting.
Operator gets more space for loading from upper wheel Swivel device. It can be equiped with semi or full automatic Loading or Unloading device.
Product Parameters

Product Specifications
Model	SP2506
Max.workpiece to be Ground ( L×W×H)	630×310×390mm
Max. Grinding Length	630mm
Max. Grinding Width	320mm
Distance From Table Surface To Spindle Center	550mm
Slide way	V-type rail with Steel-ball
V-type rail with Steel-ball	200kg
Table Size (L×W)	600×300mm
Number of T -Slot	14×1mmxn
Cross Feed On Handwheel	0.02/Graduation 2.5/revolution
Vertical Feed On Handwheel	0.01/Graduation 1.25/revolution
Wheel Size (dia×width×bore )	300×30×75
Spindle Speeds	1440rpm
Totale Power	3.79kw
Spindle Motor	4kw
Working Pressure	4Mpa
Max.Capacity	20L/min
Oil tank capacity	100L
Surface Roughness	Ra0.32μm
Paraller Level	300:0.005mm
Machine Size (L×W×H)	1960×1480×1850mm
Packing Size (L×W×H)	2000×1640×2020mm
Gross/Net Weight	1600/1500kgs

Company Profile
As the professional and experienced manufacturer of lathe, mill , drill , cnc and other tools ,Shanghai SUMORE Industrial Group has been in this filed for more than 20 years.
We have got the certificates of CE certificate . Also we have been in business with GSK ,Siemens ,Faunc and other famous companies within 50 countries all over the world.
Whether you need the standard or the customerised products , please contact us directly . Our professional and experienced engineers and after sale service team will meet your needs.
Hope to cooperate with you!
