Still Pot Moonshine Copper Alcohol Distiller Brewing Equipment Can Be Equipped with Agitator

Product Description

still pot is used to heat liquor, mash or fermented grains by jacketed heating medium,
Due to the different volatility of various substances contained in them, the relative content of various substances is different in steam and liquor during heating distillation. Alcohol (ethanol) is more volatile, the concentration of alcohol in the steam generated after heating increases, while the concentration of alcohol in liquor or mash decreases. Collect wine gas and cool it to get liquor.

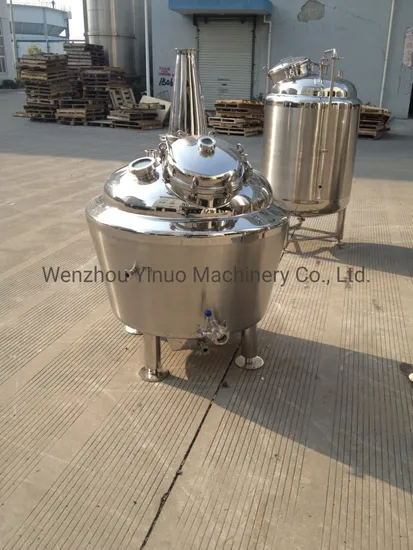

still pot structure:
1).still pot is a jacketed tank ,which can be heating by steam or electrical etc.
2)still pot material can use stainless steel material and copper material
3).still pot tank top can equipped with the agitator if the process necessary .
4).still pot tank capacity can make from 50L to 10000L .
5).still pot can connected with other equipments ,like the condenser ,collection tank etc to make a whole still pot system.which can be used to distill the rum ,vodka ,brandy ,gin etc.
Distillation unit is a new distillation and purification equipment developed by our company. It is used for distillation and purification of wine, blueberry wine, carambola wine, jujube wine, persimmon wine, apple wine and other fruit wine as well as liquor. It can be controlled manually to extract high-purity alcohol with reasonable temperature, volatility, and can separate the head, middle and tail as required. Its appearance is beautiful and durable. It is used by many wineries.
Red copper has a good resistance to the acid in wine. In the process of heating, copper forms insoluble copper salt with butyric acid, caproic acid, caprylic acid, solanoic acid, Yuedu acid, etc., so as to remove the acid with bad flavor and improve the quality of brandy. The distiller made of glass or stainless steel can not achieve the same effect. In addition, red copper has good thermal conductivity and is the catalyst of some esterification reactions.

Capacity	Height(cm)	Net weight(Kg)	Wall thickness	Bottom thickness
12L	69.5	6	1mm	1mm
20L	83.5	7.5	1mm	1mm
35L	95	9	1mm	1mm
60L	103.5	10	1mm	1mm

Packaging Details
Under normal circumstances, we will use PE wrapping film for part of the product, then use wooden case packaging, or according to the special requirements of the customer packaging;If exported to European countries, we will fumigate the wooden cases.
Shipping Details
Under normal circumstances, we will use trucks to transport products to Qingdao port;Or according to customer requirements, choose the most convenient, the most economic mode of transportation.
FAQ
Q :What about your factory?
A :Our factory is located in Wenzhou city ,Zhejiang Province and have more than 15 years experience on machinery making.
Q :How long the warranty will be?
A :We provide 1 years warranty for the machine running ,but we will afford whole -life service for the machine .
Q :Which kind payment do your company do now ?
A :We accept Western Union, T/T ,D/P,D/C and irrevocable L/C payable etc.
Q :Do you supply installation equipment in oversea?
A :Yes, if need, we can send our engineer to your plant to help you do installation and commission.
Q :How can we know the order production status ?
A :We will arrange the person to take photo or video during manufacturing in every week to make you to know the production status.When goods are finished,we will take detailed photos or video for your checking ,after approve ,then we will arrange shipment .also you can arrange FAT in our plant when the goods is ready here.
Q :how about your company after-sale serivce ?
A :1. We provide long-term after-sale service.
2. we can do installation and commission for the equipment in your plant if necessary .
3. Meanwhile, you can call or e-mail us to consult on any relevant question since we have a special line for after-sale service. Alternatively, you can communicate on-line with us to solve any problem.
