China Automatic Bunching Copper and Aluminum Cable or Wire Machine
| US$50,000.00-300,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
Bunching Machine
Condition
New
Automatic Grade
Semi-Aotumatic,Aotumatic
OEM Service
Positive
Transport Package
Wooden Package
Specification
Customized
Trademark
Reliable
Origin
China
Packaging & Delivery
Package Size
1500.00cm * 500.00cm * 800.00cm
Package Gross Weight
1000.000kg
Product Description
Bunching machine1.Description:
Full-automatic dual-twisting stranding machine, it is mainly used for stranding multi-stranded copper wires, tinned wires, enameled wires, copper-clad aluminum wires,
1000 type,1250 type can also be suitable for core wires bunching or small size core wires cabling
PLC+HMI system is adopted to control, and parameters such as preset lay pitch , lay direction and take-up tension are preset. The operation is simple and convenient

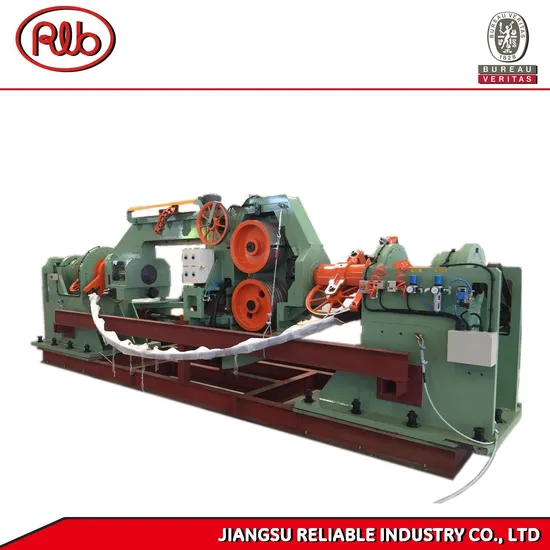

2.Equipment Pictures:
Technical Parameters:
| Model | Max. Wire Dimension(Mm): (mm): | Brass Wire Diameter(mm): (mm): | (mm²) | (mm) | Stranded Range (mm): (mm): | Max. Rotate Speed (rpm) |
| 315E | φ300×180 | ∅0.04 - 0.1 | 0.25 | - | 1.15 -11.24 | 3000 |
| 500A-C | φ500×320 | ∅0.08 - 0.32 | 2 | - | 5.34 - 40.02 | 3000 |
| 500E | φ500×320 | ∅0.06 - 0.26 | 1.5 | - | 2.86 - 44 | 3000 |
| 630C | φ630×475 | ∅0.23 - 0.64 | 1.5-6 | - | 26.19 - 75 | 1570 |
| 630P | φ630×475 | ∅0.15-0.64 | 1.5-5 | - | 15.54-73.89 | 2200 |
| 800 | φ800×600 | ∅0.25 -0.8 | 2.5-16 | - | 34.56-181.76 | 1200 |
| 1000 | φ1000×750 | ∅0.4- 1.5 | 4-20 | ≤∅12 | 34.55 - 181.76 | 800 |
| 1250 | φ1250×950 | ∅1.2-3.2 | 70 | ≤∅22 | 40-500 | 650 |
4.Layout:
5.Application Demonstration:
Different pay-off devices are selected according to the type of bundling machine and pay-off coil;
