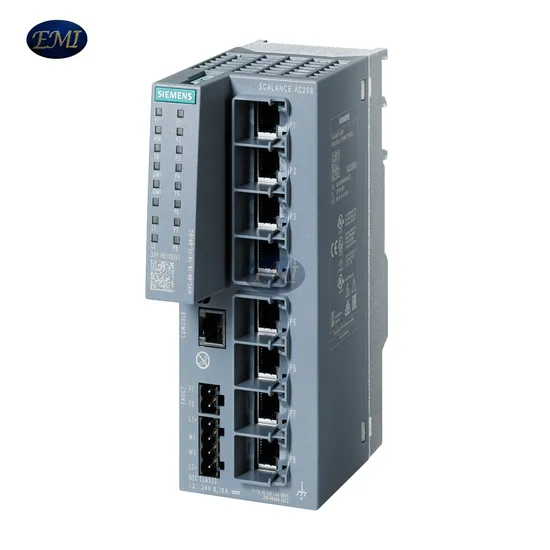

6gk5208-0ba00-2AC2 PLC8* 10/100 Mbit/S RJ45 Ports Fdt New Unopened Industria Network Ethernet Switch

Product Description

6GK5208-0BA00-2AC2 8x 10/100 Mbit/s RJ45 ports fadt ethernet switch Overview SCALANCE X is the product group of industrial switches from SIMATIC NET for Industrial Ethernet. Switches are active network components that specifically distribute data to the relevant addressees. Application SCALANCE XB005 The unmanaged Industrial Ethernet Switch SCALANCE XB005 is optimized for configuring Industrial Ethernet networks with 10/100 Mbps in line and star topologies Enclosure for space-saving installation in control cabinets or boxes on a standard rail SCALANCE X005/XC108 For configuring Industrial Ethernet networks in line and star topologies The 5/8 RJ45 sockets are industry-compatible and feature additional retaining collars for connection to the IE FC RJ45 plug 180 SCALANCE XC208/X208PRO For configuring Industrial Ethernet networks in line, star or ring topologies (8 electrical ports): SCALANCE XC208 for installation in the control cabinet SCALANCE X208PRO, specially for use outside the control cabinet The 8 RJ45 sockets of the SCALANCE XC208 are industry-compatible and feature additional securing collars for connection to the IE FC RJ45 plug 180 The 8 PROFINET-compatible M12 sockets of the SCALANCE X208PRO are designed with IP65 degree of protection for connection to the IE M12 plug PRO or the pre-assembled IE M12 connecting cable The SCALANCE X208PRO can be installed on a DIN rail/S7-300 rail or as a compact flat or upright model directly on the installation or machine. Status information can be read in any mounting position thanks to the inclined row of LEDs. Power can also be supplied to the SCALANCE X208PRO from outside the control cabinet from the PS791-1PRO power supply module at 230 V AC. Data sheet 6GK5208-0BA00-2AC2

SCALANCE XC208 manageable Layer 2 IE switch; IEC 62443-4-2 certified; 8x 10/100 Mbit/s RJ45 ports; 1x console port; diagnostics LED; redundant power supply; temperature range -40 °C to +70 °C; assembly: DIN rail/S7 mounting rail/wall Office redundancy functions features (RSTP, VLAN,...); PROFINET IO device Ethernet/IP-compliant C-plug slot;
product type designation	SCALANCE XC208
transfer rate
transfer rate	10 Mbit/s, 100 Mbit/s
interfaces / for communication / integrated
number of electrical connections for network components or terminal equipment	8; RJ45 8
number of 10/100 Mbit/s RJ45 ports / integrated with securing collar
interfaces / other
number of electrical connections for operator console for signaling contact for power supply	1 1 1
type of electrical connection for operator console for signaling contact for power supply	RJ11 2-pole terminal block 4-pole terminal block
design of the removable storage C-PLUG	Yes
signal inputs/outputs
operating voltage / of the signaling contacts at DC / rated value	24 V 0.1 A
operational current / of the signaling contacts at DC / maximum
supply voltage, current consumption, power loss
product component / connection for redundant voltage supply	Yes
type of voltage / 1 / of the supply voltage	DC
supply voltage / 1 / rated value	24 V
power loss [W] / 1 / rated value	4.2 W
consumed current / 1 / at rated supply voltage / maximum	0.175 A
supply voltage / 1 / rated value	9.6 ... 31.2 V
consumed current / 1 / maximum	0.35 A
type of electrical connection / 1 / for power supply	4-pole terminal block
product component / 1 / fusing at power supply input	Yes
fuse protection type / 1 / at input for supply voltage	2.5 A / 125 V
ambient conditions
ambient temperature

during operation during storage during transport	-40 ... +70 °C -40 ... +85 °C -40 ... +85 °C 95 % IP20
relative humidity at 25 °C / without condensation / during operation / maximum
protection class IP
design, dimensions and weights
design	compact 60 mm 147 mm 125 mm 0.52 kg Polycarbonate (PC-GF10) / pressure die cast aluminum Yes Yes Yes Yes
width
height
depth
net weight
material / of the enclosure
fastening method 35 mm top hat DIN rail mounting wall mounting S7-300 rail mounting S7-1500 rail mounting
product features, product functions, product components / general
cascading in the case of a redundant ring / at	50
reconfiguration time of <\~0.3\~s
cascading in cases of star topology	any (depending only on signal propagation time)
product function / QoS according to DSCP	Yes
product feature
Cut Through switching method	No
Store & Forward switching method	Yes
product functions / management, configuration, engineering
product function CLI web-based management MIB support TRAPs via email configuration with STEP 7 RMON SMTP server port mirroring multiport mirroring CoS PROFINET IO diagnosis	Yes Yes Yes Yes Yes Yes No Yes Yes Yes Yes B Yes 1632 byte Yes Yes Yes Yes No Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes
PROFINET conformity class
product function / switch-managed
telegram length / for Ethernet / maximum
protocol / is supported Telnet HTTP HTTPS TFTP BOOTP GMRP DCP LLDP EtherNet/IP SNMP v1 SNMP v2 SNMP v3 IGMP (snooping/querier)
identification & maintenance function I&M0 - device-specific information I&M1 - higher level designation/location designation

product functions / diagnostics
product function
port diagnostics	Yes
statistics Packet Size	Yes
statistics packet type	Yes
error statistics	Yes
SysLog	Yes
product functions / VLAN
product function
VLAN - port based	Yes
VLAN - protocol-based	No
VLAN - IP-based	No
number of VLANs / maximum	257
number of VLANs - dynamic / maximum	257
number of VLANs / at ring redundancy (HRP; MRP; standby link)	35
protocol / is supported / GVRP	Yes
product functions / DHCP
product function
DHCP server	Yes
DHCP client	Yes
DHCP Option 82	Yes
DHCP Option 66	Yes
DHCP Option 67	Yes
product functions / redundancy
product function
of the PROFINET IO device / is supported / PROFINET system redundancy	Yes
ring redundancy	Yes
High Speed Redundancy Protocol (HRP)	Yes
high speed redundancy protocol (HRP) with redundancy manager	Yes
high speed redundancy protocol (HRP) with standby redundancy	Yes
protocol / is supported / Media Redundancy Protocol (MRP)	Yes
product function
media redundancy protocol (MRP) with redundancy manager	Yes
Media Redundancy Protocol Interconnection (MRP- I)	Yes
of the PROFINET IO device / is supported / H-Sync forwarding	Yes
redundancy procedure STP	Yes
redundancy procedure RSTP	Yes
redundancy procedure RSTP+	Yes
redundancy procedure MSTP	Yes
Parallel Redundancy Protocol (PRP)/operation in the PRP-network	Yes
Parallel Redundancy Protocol (PRP)/Redundant Network Access (RNA)	No
passive listening	Yes
protocol / is supported
LACP	Yes
product functions / security
product function IEEE 802.1x (radius) broadcast/multicast/unicast limiter broadcast blocking	Yes Yes Yes
protocol / is supported SSH SSL	Yes Yes
