Turret Milling Machine Mdm-0s
| US$3,000.00-5,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
0SS
Type
Tool Milling Machine
Object
Tool
Structure
Flat
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Overall Welding Tooth
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Capacity Face Milling
Od-75mm/5mm
Capacity End Milling
Od-20mm/6mm
Spingle Taper
R8/Nt-30
Diameter of Quill
R8/Nt-30
Number of Spindle Speeds
Variable
Spindle Travel
127mm(5")
Head Movement(L to R)
90°
Collet Capacity
3mm-16mm(1/8"-5/8")
Travel of Knee
350mm(13-3/4")
Overarm Travel
266mm(10-1/2")
Transport Package
W/Cases with Plastic Cover Inside
Specification
CE, ISO9001
Trademark
UNI-TECH
Origin
Shangdong, China
HS Code
84595900
Production Capacity
200sets / Month
Product Description

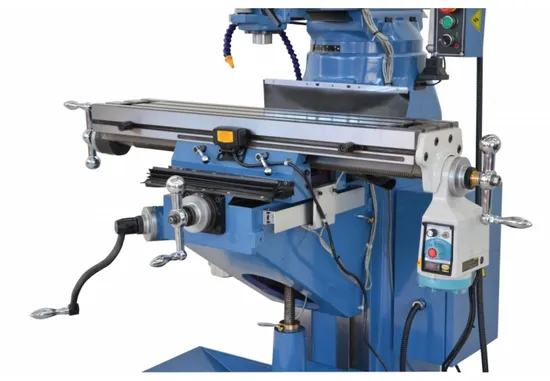

turret milling machine made in ChinaFeature
Machine base, knee and table are made by MEEHANITE Cast Iron construction.
Equipped with cooling system.
Slideways are hardened, precision ground.
All castings are FC25 high quality material, anneal treated to relieve internal stress,
Centralized control panel minimizes operation fatigue while permitting efficient iperation.
The spindle runs on precision bearings for long term high speed runnig, heavy duty cutting and maxium stablity.
The gaars from the head assembly are hardened and precision groudn. (For OVS, OEVS)
Milling Head can titles 90 degree right and left.
X, Y, Z axis are dovetail way
Standard Accessory:
Handle oil pump
Y-Axis dust cover
Coolant pump and splashguard
Working lamp
Electric cabinet and stanard box
Forward reverse switch(frequency without)
Tools and toolbox
0#: Three miller per pallet
2#: Two miller per pallet
4#: Two miller per pallet
5#: Two miller per pallet
Optional Accessory:
TONE automatic power feed
X-Axis
Y-Axis
Tone automatic power feed
X-Axis
Y-Axis
Z-Axis
Gear drive mechanical power feed
X-Axis
Y-Axis
SINO digital readout
2-Axis
3-Axis
Spindle protection with micro-switch
Luxury operation panel
Air draw bar
Z-Axis lifting motor
Worktable protection
Milling head as NT40Φ 86
6"Machine vice
8"Machine vice
58 pcs clamping kits
15 pcs milling collects
Automatic lubrication pump
5# machine with universal milling hesd
2# 9"X49" work table
4# 10"X54"worktable
5# 12"X60"worktable
Square guideway
| Specifications | ||||
| Item | MDM-0S | MDM-0SS | MDM-0VS | MDM-0EVS |
| Drilling Capacity in Cast Lron | OD-15mm | OD-18mm | OD-15mm | |
| Drilling Capacity in Steel | OD-13mm | OD-15mm | OD-13mm | |
| Capacity face milling | OD-75mm/5mm | |||
| Capacity end milling | OD-20mm/6mm | |||
| Spingle Taper | R8 | R8/NT-30 | ||
| Diameter of Quill | 86mm(3-3/8") | |||
| Number of Spindle Speeds | 10 | 16 | Variable | Inverter |
| Range of Spindle Speeds(50HZ) | 100-1250rpm | 65-4550rpm | 50-3500rpm | 0-2000rpm |
| Range of Spindle Speeds(60HZ) | 120-1500rpm | 80-5440rpm | 60-4200rpm | 0-2000rpm |
| Power feed of Speedle | None | 0.04/0.08/0.15mm/rev | None | |
| Number of power Feeds | None | 3 | 3 | None |
| Spindle Travel | 127mm(5") | |||
| Head Movement(L to R) | 90° | |||
| Head Tilt | None | |||
| Max. Distance Spindle to Table | 25-380mm(0.98"-15") | 15-370mm(0.59"-14.6") | 25-380mm(0.98"-15") | |
| Max. Distance Spindle to Colum | 400mm(15-3/4") | |||
| Min. Distance Spindle to Colum | 134mm(5-1/4") | |||
| Collet Capacity | 3mm-16mm(1/8"-5/8") | |||
| Size of Table | 200mm×910mm7-7/8X36") | |||
| Longitudinal Table Travel/X-Axis | 560mm(21-1/4") | |||
| Cross Table Travel/Y-Axis | 240mm(9-1/2") | |||
| Number of T-Slots | 3 | |||
| T-Slot Size | 16mm(5/8") | |||
| T-Slot Centers | 64mm(2-1/2") | |||
| Max. Weight of Workpiece | 250kg | |||
| Travel of Knee | 350mm(13-3/4") | |||
| Overarm Travel | 266mm(10-1/2") | |||
| Overall Dimensions WxDxH | 1400mm×1320mm×1950mm(55"X52"X76-3/4") | |||
| Horse Power for Main Motor | 1.1kw(1.5HP) | 2.2kw(3HP) | 1.5kw(2HP) | |
| N.W/G.W(approx.) | 730/840kg | 785/895kg | 785/895kg | 800/900kg |
