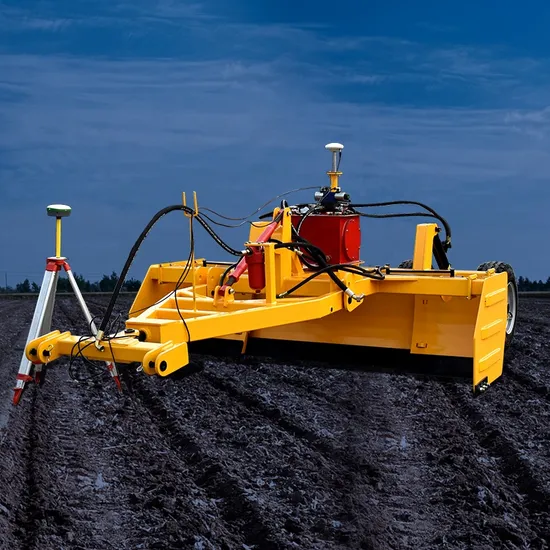

High Precision Agricultural Mechanical Equipment Three-Point Suspension Flat Scraper Laser Grader

Product Description

Product Paramenters

Model	Unit	ZY-PJ200	ZY-PY250	ZY-PJ300	ZY-PJ350
Working width	mm	2000	2500	3000	3500
Matched Power	KW	45-55	55-65	65-88	88-120
Efficiency	H m2/h	1.1-1.6	1.3-1.8	1.6-2.0	1.9-2.3
Working speed	KM/h	5-15
Working distance	mm	500
Max buried depth	mm	240
Ejector/acceptor		LS526/LS709
Receiving controller	V	11-30DC
Automatic leveling angle	°	±5
Signal reception angle	°	360
Flatness	Mm/100 square m	±15
Moldboard lift speed	mm/s	LIFT≥50, Down≥60
Cylinder settlement	mm/h	≤12
Working dip angle	°	10±2
Hydraulic oil pressure	Mpa	16±0.5
Wheel-base	mm	1590	1790	1990	2190
Wheel Type		235/85R16
Pressure	kPa	200-250
Structural style		Traction
Ambient temperature		5-40
Dimensions	mm	3000	3000	3000	3000
		mm	2050	2650	3050	3550
		mm	3650	3650	3650	3650
Weight	KG	1050KG	1250	1400KG	1500KG
Matched Power	HP	80 Above	100 Above	120 Above	150 Above
Package size		2.25 X 1.6 X 1.6 M	2.75 X 1.6 X 1.6 M	3.25 X 1.6 X 1.6 M	3.75 X 1.6 X 1.6 M

1. who are we?
We are based in Shandong, China, start from 2016,sell to Africa(30.00%),Domestic Market(22.00%),Southeast Asia(12.00%),Eastern
Europe(5.00%),North America(4.00%),Mid East(4.00%),Northern Europe(4.00%),South Asia(4.00%),South America(3.00%),Eastern
Asia(3.00%),Western Europe(3.00%),Central America(3.00%),Southern Europe(2.00%),Oceania(00.00%). There are total about 11-50
people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Disc Harrow,Disc Plow,Rotary Cultivator,Transplanter,Vegetable Planter
4. why should you buy from us not from other suppliers?
we specialized in disc harrow disc plough and cultivator and potato seeder with harvester for 15 years with good quality and brand
, we looking forward to your cooperation !
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,DEQ,DDP,DDU,Express Delivery,DAF,DES
Accepted Payment Currency:USD,EUR,JPY,AUD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
