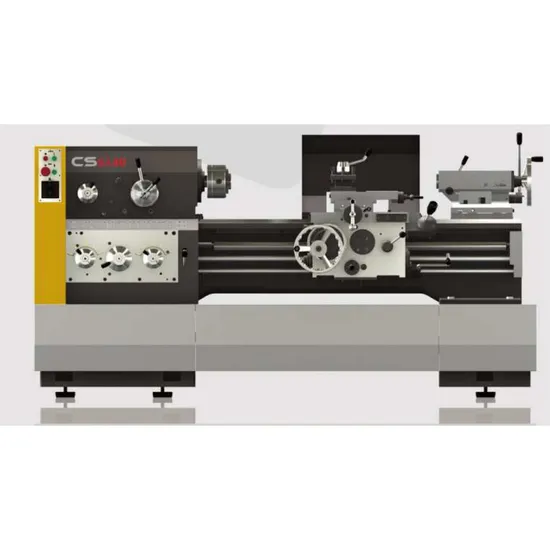

CS Series High Precision Horizontal Lathe, Turning Machine Tool

Product Description

Product Description
Suitable for a variety of turning work, such as turning inside and outside cylindrical surface, cone surface, and other rotary surface, end surface, but also can process a variety of common threads - such as metric, inch, modulus, diameter pitch thread, as well as drilling, reaming, tapping, broaching groove and other work.

1. High torsion horizontal bed, high-quality cast iron carefully made, and the guide rail surface for medium-frequency induction hardening precision treatment;

2. The guide pair composed of the soft tape of the teflon guide rail is wear-resistant, vibration-absorbing and has good accuracy retention;

3. The main shaft adopts three support structure, good rigidity, high precision, and strong cutting;

4. Wide speed range, can choose a more reasonable speed;

5. Can directly turn metric and inch threads;

6. In addition to the conventional turning work, the saddle lathe can also turn a variety of flat and shaped parts.

7. There are more complete special parts for users to choose.
Product Parameters

Specifications
PARAMETERS
ITEMS	UNIT	CS6140 CS6240 CS6140B CS6240B	CS6150 CS6250 CS6150B CS6250B	CS6166 CS6266 CS6166B CS6266B	CS6150C CS6250C	CS6166C CS6266C
Capacity
Max. swing dla. over bed	mm	Φ400	Φ500	Φ660	Φ500	Φ660
Wax. swing dia. over cross slide	mm	Φ200	Φ300	Φ420	Φ300	Φ420
Max. swing dia.over gap	mm	Φ630	Φ710	Φ870	Φ710	Φ870
Effective length In gap	mm	240
Max. workpiece length	mm	750/1000/1500/2000/3000
Max. turning length	mm	700/950/1450/1950/2950
Spindle
Spindle bore diameter	mm	Φ52 ;(Bseries) :Φ82; Cseries:Φ105
Taper of spindle bore		morse No.6; B seriesΦ90 1:20; C seriesΦ 113 1:20
Type of spindle nose		ISO 702/III No.6 B and C series:ISO 702/II No.8
Spindle speeds	r/min	Lv.24 9-1600r/min			Lv.12 36-1600r/min
Feeds and threads
Max. travel of upper toolpost	mm	145
Max. travel of lower toolpost	mm	320	320	310	320	310
Tool section	mm	25x25
X-axis feedrate	m/min	50Hz:1.9; 60Hz:2.3
Z-axis feedrate	m/min	50Hz:4.5; 60Hz:5.4
X-axis feeds	mm/r	0.012-2.73 93 kinds			0.027-1.07 65 kinds
Z-axls feeds	mm/r	0.028-6.43 93 kinds			0.63-2.52 65 kinds
Metric threads	mm	0.5-224 48 kinds			l-14mm 22 kinds
Inch threads	t.p.i	72-l/8tpi 46 kinds			28-2 tpi 25 kinds
Module threads	π mm	0.5-112 42 kinds			0.5-7mm 18 kinds
Diametric pitch threads	DP	56-1/4DP 45 kinds			56-4DP 24 kinds
Tailstock
Diameter of quill	mm	Φ75
Max. travel of quill	mm	150
Taper of qulll(Morse)		Morse No.5
Motor
Main motor power	kW	7.5
Rapid traverse motor power	kW	0.3
Coolant pump motor power	kW	0.12
Others
Length	mm	2382/2632/3132/3632/4632
Width	mm	975
Height	mm	1230/1270/1350/1270/1450
Weight	kg	1975/2050/2250/ 2450/2850	2050/2200/2400/2600/3000	2150/2200/2400/2600/3000	2150/2200/2400/2600/3000

Detailed Photos
Tailstock quick locking handle
24 speed change

Handle operation conforms to the human body
