Fast Speed Drilling Concrete Drill Core Bits
Basic Info.
Model NO.
HLYD071
Diameter: 18mm-500mm
Total Length: 350mm-450mm
Kind
Diamond Drill
Manufacturing Arts
Welding
Transport Package
1PC Into a White Box, 10-20PCS Into One Carton
Specification
SGS
Trademark
HOLLYLAND
Origin
China
HS Code
82071990
Production Capacity
10000PCS/Day
Product Description

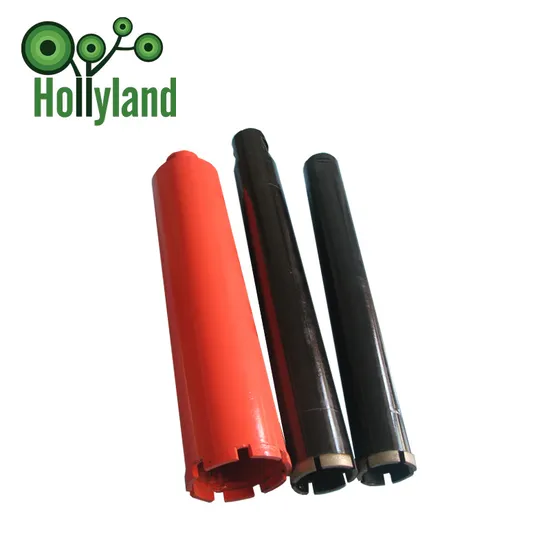

Diamond Core Drill BitsApplications: Reinforced concrete, cured concrete, concrete brick/wall/block/bridge/highway, masonry, abrasive materials, stones and refractory materials, construction and engineering industry etc;
Products characters:
High diamond concentration
Fast and smooth cutting
Stable and aggressive performance
Long working lifespan
High quality and competitive prices
Diamond core drill bits differ from other drill bits because they consist of a steel casing that has diamonds embedded on the cutting edge of the bit. Diamonds are one of the hardest substances known to man, and they work very well to cut through harder materials that would destroy a metal-only drill bit.
The main working parts of Diamond core drill bits - drilling segments are made of Cobalt-based formula, and superior grade diamond to match, the quality is at least twice better than normally used Iron base formula by other most producers.
Core Bits to be used with: Core Rigs
CE: ISO: 9001: 2000
MOQ: 5-10PCS
Packing: Neutral packing
Delivery time: 2-3weeks
| Diameter | Working length | Segment number | Segment size |
| 16mm | 300mm | 1 | 9x3.2mm |
| 18mm | 300mm | 1 | 9x3.2mm |
| 20mm | 300mm | 1 | 9x3.2mm |
| 22mm | 300mm | 1 | 9x3.2mm |
| 24mm | 300mm | 3 | 15.5x3x9mm |
| 25mm | 300mm | 3 | 15x3x9mm |
| 28mm | 300mm | 3 | 15x3.2x9mm |
| 30mm | 300mm | 3 | 15x3.2x9mm |
| 32mm | 300mm | 4 | 15x3.2x9mm |
| 36mm | 300mm | 4 | 15x3.2x9mm |
| 38mm | 400mm | 5 | 15x3.2x9mm |
| 40mm | 400mm | 5 | 15x3.2x9mm |
| 42mm | 400mm | 5 | 15x3.2x9mm |
| 47mm | 400mm | 4 | 24x3.5x9mm |
| 51mm | 400mm | 5 | 20x3.5x9mm |
| 51mm | 450mm | 5 | 24x3.5x9mm |
| 63mm | 450mm | 6 | 24x3.5x9mm |
| 68mm | 450mm | 6 | 24x3.5x9mm |
| 78mm | 450mm | 7 | 24x3.5x9mm |
| 82mm | 450mm | 7 | 24x3.5x9mm |
| 92mm | 450mm | 8 | 24x3.5x9mm |
| 102mm | 450mm | 9 | 24x3.5x9mm |
| 108mm | 450mm | 9 | 24x3.5x9mm |
| 112mm | 450mm | 9 | 24x4x9mm |
| 122mm | 450mm | 10 | 24x4x9mm |
| 127mm | 450mm | 11 | 24x4x9mm |
| 132mm | 450mm | 11 | 24x4x9mm |
| 152mm | 450mm | 12 | 24x4.5x9mm |
| 162mm | 450mm | 12 | 24x4.5x9mm |
| 172mm | 450mm | 12 | 24x4.5x9mm |
| 182mm | 450mm | 13 | 24x4.5x9mm |
| 202mm | 450mm | 15 | 24x4.5x9mm |
| 212mm | 450mm | 16 | 24x4.5x9mm |
| 225mm | 450mm | 15 | 24x4.5x8.5mm |
| 250mm | 450mm | 16 | 24x4.5x8.5mm |
| 300mm | 450mm | 17 | 24x4.5x8.5mm |
| 350mm | 450mm | 20 | 24x5x8.5mm |
