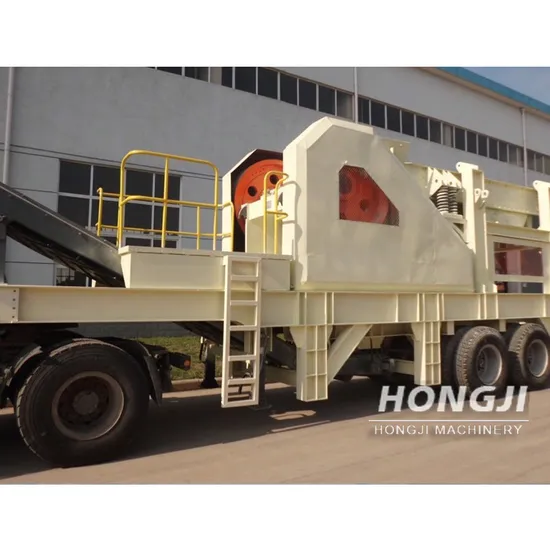

Mining Quarry Mobile Crushing Machine Mobile Rock Jaw Crusher

Product Description

Mining Quarry Mobile Crushing Machine Mobile Rock Jaw Crusher Product Description
The mobile jaw crusher is a new type of crushing equipment suitable for crushing various ores or rocks with a compressive strength below 250Mpa, such as construction waste, basalt, granite, coal gangue, cement clinker, iron ore, bauxite, quartz stone and so on.In addition to mobile jaw crushers we also have mobile cone crushers, mobile impact crushers, mobile hammer crushers etc. Applied material : Rock, gravel, different kinds of ore, fireclay, slag and other hard materials. Featurers
1. Move easily. It can go to the crushing place directly. It can move not only on the smooth road,but also on the bumpy road. 2. Compact structure and simple operation. Integrative equipment group with trailer save the working area. 3. With generator, motor and control box on the trailer, it can work outdoor easily. Equipped with supporting facilities, it can be installed quickly and conveniently.
4. Save the cost. By crushing the materials on site, the transportation cost is reduced. Product Parameters

Model	HJ938HD86	HJ1149HD98	HJ1349HD110	HJ1349HD125
Transportation Length (mm)	12600	13500	14500	15200
Transportation Width (mm)	2600	2700	2800	2900
Transportation Height (mm)	3870	4200	4450	4500
Maximum Length (mm)	12500	14000	16100	14700
Maximum Width (mm)	4100	4500	5100	5100
Maximum Height (mm)	4100	4900	5000	5300
Weight (t)	39	57	55	65
Tire Configuration	Dual-axial	Dual-axial	Dual-axial	Dual-axial
Jaw Crusher	HD86	HD98	HD110	HD125
Maximum Feeding Size (mm)	500	550	660	800
Discharge Opening Size (mm)	50-150	75-175	100-200	125-225
Capacity (t/h)	85-275	110-350	215-510	280-650
Vibrating Model	ZSW380×95	ZSW420×110	ZSW490×130	ZSW490×130
Main Belt Conveyor	B800×8.5M	B1000×9.5M	B1000×11M	B1200×11M
Side-opening Belt conveyor (Optional)	B500×3M	B650×3.5M	B650×4M	B650×4M
Genset (Optional) (kw)	200	250	270	400

cases
Company Profile
Hongji Mining Machinery Co, Ltd. is a large production-oriented enterprise with import and export qualifications, mainly providing "whole mining beneficiation equipment system and service, and is a large-scale joint stock enterorise intecrating RaD, manufacturing, sales. and EPC proiect The company is headguartered at No. 166 North Taojia Road, Xingyang City, Zhengzhou City, Henan Province , with a total area of more than 80000 square meterAfter more than 20 years of development, now t has three producton bases, more than 180 sets of varous arge and medium-sized processing machining ivetina. weldina. and assemblv equipment. more than 200 emplovees. with 75 senior and intermediate itles' professional encineers.
FAQ
1. How is the quality of your products?
Our products are manufactured strictly according to national and international standard, and we take a test on every grinder before delivery.
2. Guaranteed:
If products 'quality is not consistent with the description as we described or the promise before you place order, we promise 100% refund.
3. How about price?
Yes, we are factory and are able to give you the lowest price than market one and we have a policy that "for saving time and absolutely honest business attitude, we quote as low as possible for any customer, and discount can be given according to quantity.
4. Service and Payment Terms?
A. We usually accept T/T, L/C, but other terms also workable.
B. We take pictures of finished products before delivery.
5. Will you help with installation and staff training?
Yes, we can send our engineers to your place to guide the installation and train your workers if needed, but the buyer should bear our technician's round tickets, accommodation, and food.
