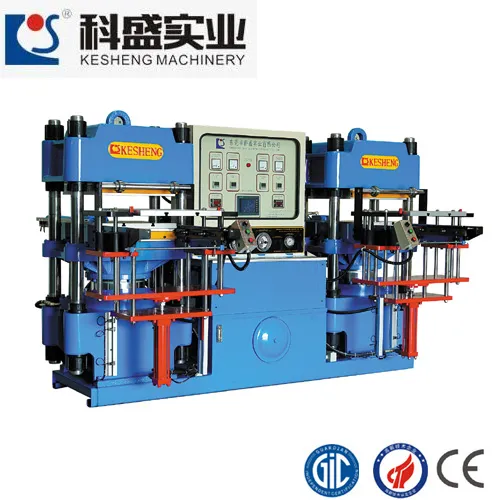

Hydraulic Press Machine for Rubber Wrist Band O-Ring Products (KS200HF)

Hydraulic Press Machine for Rubber Wrist Band O-Ring Products (KS200HF)

US$25,000.00 1 set (MOQ)

Basic Info.

Model NO.
KSH-2RT-200T
Customized
Customized
Automatic Grade
Automatic
Structure
Double Work Stations
Clamping Force
200 Ton
Stroke
250mm
Heating Plate Size
560 X560mm
Main Sylinder Diameter
250mm
Horse Power
10HP * 2
Electrical Power
22kw
Mould Open Type
2 Layer Mould Open Style
Gross Weight
7000kg
Machine Size
2930*2350*2100mm
Transport Package
Naked Pack / Wooden Case/Customer Request
Specification
CE
Trademark
KESHENG
Origin
Dongguan China
HS Code
84774090
Production Capacity
800 Sets/Year

Product Description

200ton high precision, full automatic, fast speed hydraulic rubber machine, mainly use for rubber parts, silicone products, wrist band, phone case, toys ect.
Machine main feature:
1. With proofread slow speed of mold function, proofread mold more accurate, more secure
2. Suitable for variety 2-layers or multi-layers molds, it is a kind of new multi-function machine
3. Adopt dual power individual circuit design, stable, quiet, low failure rate, two axes can be operated simultaneously
4. With adjustable slow speed of mold features to suit different types of modules
5. Out-In mold positioning accuracy, positioning 100% security, to ensure that mold does not damage

Applicable products:
Applied to industrial rubber parts, Auto parts, medical bottle stoppers, household ware, cookware, silicone/rubber multi-layer molded products
Parameter:
Model 100Ton 150Ton 200Ton 250Ton 300Ton 350Ton 400Ton 450Ton
Clamping force(Ton) 100 150 200 250 300 350 400 450
Stroke(mm) 250 250 250 250 300 300 300 300
Heating plate size(mm) 400x400 450x460 560x560 600x650 650x650 750x700 850x850 1000x1000
Main cylinder diameter(mm) 250 300 355 400 450 475 500 560
Horse power(HP) 5x2 5x2 10x2 10x2 10x2 15x2 15x2 15x2
Electrical power(KW) 12 17 22 34 34 43 48 72
Gross weight(KG) 4500 5500 7000 9000 11000 15000 17500 21500
Machine size(L*W*H mm) 2360x1650x1850 2650x2000x2000 2930x2350x2100 3200x2700x2500 3460x2630x2500 3650x2600x2610 3750x2700x2800 4200x3300x3300

Main parts instruction for plate & vacuum rubber machine
NO. Item Branch/Material Remarks
1 Motor Taiwan Tatung Large torque type, quiet and silent
2 Oil Pump Japan branch Collective style circuit design
3 PLC Japan Mitsubishi Independent written, easy to operate
4 LCD touch screen Taiwan PanelMaster Clear and intuitive, convenient, easy to operate
5 Heating pipes Taiwan branch Nickel-chromium alloy wire, never rust
6 Oil seal Japan NOK Wear-resistant, durable, no leakage
7 Solenoid valve Taiwan Victoria Controlled fast, long life
8 Other electrical
configuration		 Japan Fujitsu, Great
Wall, Chint and so on		 Performance and stability
9 Thermostat Omron Using PID correction, temperature uniform
distribution, the error value at ± 3 ºC
10 Pressure sensor Denmark TRAFAG Conduction pressure accurate, unbiased, and easy
to use
11 Heating control
system		 Taiwan Solid State
Relays		 temperature uniform distribution, the error value
at ± 3 ºC
12 Machine body casting FCD50 Ductile Iron Aging passivation, high tensile strength
13 Column Carbon Steel Hardness up to HRC55--58
14 Work plate Size as per quotation 45 # high carbon steel, grinding, surface nitriding hardness HRC50-55
15 Machine Middle body Umbrella tapered design Make the machine rise and fall by force, the mold cavity pressure evenly, the product is not lack of material, no bubbles
16 Vacuum Pump Germany Busch Evacuated quickly, can reach 760 mm Hg within 5 seconds

Any inquiry please feel free to contact with us, thank you for your attantion!
