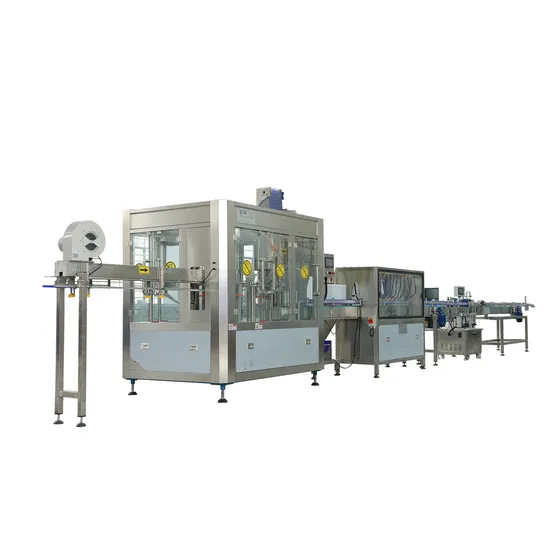

3 in 1 Automatic Pet Bottle Drinking Water Production Line Beverage Washing Filling Capping Machinery Mineral Pure Water Filling Bottling Machine

Product Description

Our water bottling machine, combined with rinsing, filling and capping. It is innovated and designed in the requirement of still pure water and mineral water, on the bases of introducing, digesting and absorbing advanced technology from Germany and Italy.
RFC series bottle water filling machine is used to fill mineral water, pure water, purified water, spring water into PET bottle from 200ml-2000ml. Glass bottle is also suitable, just need to change the conveyor parts.
Different models can satisfy various requirement of output from 2000B/H to 24000B/H.
The whole process of water filling production line is automatic, suitable for PET bottle, plastic bottle filling mineral water and pure water.
Filling way using the gravity or micro pressure filling, make the speed faster and more stable, so compared with other models, our machine output is higher and more efficient.
The water filling machine adopts advanced Mitsubishi programmable controller(PLC) to control the machine, which makes the machine runs smoothly. Technical Parameters

Model	RFC14-12-4	RFC16-16-5	RFC18-18-6	RFC24-24-8	RFC32-32-10
Capacity(500ML)	4000BPH	6000BPH	8000BPH	12000BPH	15000BPH
Washing Heads	14	16	18	24	32
Filling Heads	12	16	18	24	32
Capping Heads	4	5	6	8	10
Suitable Bottle	PET Bottle ,Plastic Bottle
Diameter of bottle Diameter	55-110 MM
Height Of Bottle	150-310MM
Suitable Cap	Plastic Screw Cap
Weight	2500kg	3000kg	4000kg	4500kg	6000kg

Features of our filling machine A) Washing parts
l All 304 stainless steel rinsing heads, water spray style inject design, save water consumption & more clean
lI 304 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing
lII 304 stainless steel washing pump
B) Filling Parts
l High precision filling nozzle, PLC variable signal control, ensure high filling precision & filling smoothly & steadily,
lIFilling volume adjustable in fine rank, same liquid level after filling
lII All 304 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
lV 304 stainless steel filling pump
V no bottle no filling
C) Capping parts
l Place & capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
lI All 304stainless steel construction
lII No bottle no capping,
lV Automatic stop when lack of bottle Flowing chart 1)water purification systemSource water tank →Source water pump→ Quartz sand filter→ Active carbon filter→ Ion soften machine→ Fine filter →Reverse Osmosis → Ozone sterilizer → pure water tank2) Bottle filling & packing systemPure water tank→Bottle blower→Air conveyor →Washing, filling & capping 3-in-1→ Light check → Full-automatic labeling machine → Ink jet machine →Full automatic PE film packing machine→ warehouse3)Bottle making systempet preform→Autoloader→reheater →molding→ bottles
