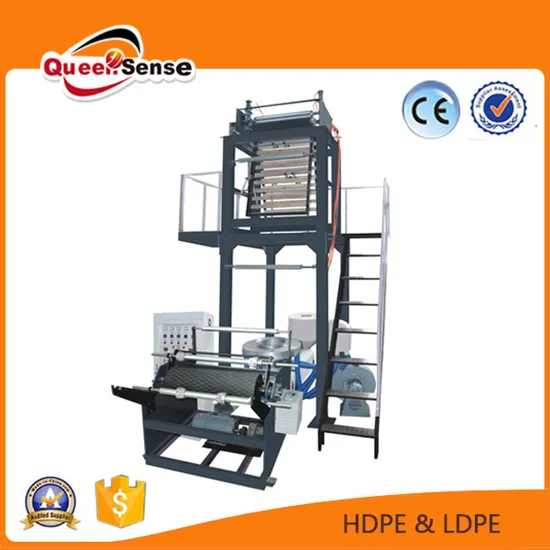

HDPE/LDPE Filming Blowing Plastic Machine
| US$8,000.00-20,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
QS-A50/55/60/65
Maximum Folding Width of Film
1200mm
Screw Diameter
50mm
Automation
Automatic
Computerized
Computerized
Machine Weight
4T
Certification
CE, ISO9001:2008, QS
Max.Extrudsion Output
35kg/H
Die Size
60-120mm
Film Width
100-600mm
Film Thickness
0.008-0.1mm
Transport Package
Seaworthy
Specification
CE SGS
Trademark
QUEENSENSE
Origin
China
HS Code
847780000
Production Capacity
2000PCS/Per Year
Product Description
Performance Introduction:
Its extruder, cylinder and screw rods are made of quality alloy steel that have been nitrided and processed in a precision way. Hence it is sound in hardness, durable in corrosion resistance. The specially-designed screw is of sound quality in plasticizing, which helps increase the production capacity. It is applied to blowing the plastic films like low density polytene (LDPE), high density polytene(HDPE) and linear low density polytene (LLDPE). It is widely applied to producing the packing bags for foodstuff, clothing, rubbish bag and vest ones.
Optional equipment:
Optional equipment: 1). Auto load 2). Air compressor 3). Special die 4). Die rotary device 5). Bouble sides winder 6). Up and down
| Model | A50 | A55 | A65 | A65-1 |
| Diameter of screw | φ50 | φ55 | φ65 | φ65 |
| Rcduced diameter of film(mm) | 100-600 | 200-800 | 300-1000 | 400-1200 |
| Single-face Thickness of film(mm) | 0.01-0.10 | 0.01-0.10 | 0.01-0.10 | 0.01-0.10 |
Max.Extrusion(Kg/h) | 35 | 50 | 65 | 80 |
| L/D | 28:1 | 28:1 | 28:1 | 28:1 |
| Power of main moto(kw) | 11 | 15 | 18.5 | 22 |
| Power of Tracion main moto(kw) | 0.75 | 1.1 | 1.5 | 1.5 |
| Heating Power(kw) | 15 | 18 | 23 | 27 |
Outline diameter(L x W x H) (mm) | 4800 x 1900 x 4100 | 5500 x 2100 x 4700 | 6500 x 2300 x 4900 | 6500 x 2500 x 5600 |
| Weight(T) | 1.5T | 2T | 2.3T | 2.6T |
