Heavy Duty Electric Wire Rope Hoist

Product Description

CE Standard CD series electric wire rope hoist
Details:
Capacity: From 0.5 to 20T Wire Rope length: 6-30m Voltage: 380/440V
Catalog:

Model	CD1,MD1
Capacity	Tons	0.5	1	2	3	5	10
Lifting height	M	6,9,12	6,9,12,18,24,30				9,12,18,24,30
Lifting speed	M/min	8(0.8/8)					7(0.7/7)
Travel speed	M/min	20/30
Wire rope	Dia.(mm)	4.8	7.4	11	13	15	15
	Spec.	6*37+FC
Hoisting Motor	Type	ZD 121-4	ZD 122-4	ZD 131-4	ZD 132-4	ZD 141-4	ZD 151-4
		ZD S1 0.2/0.8	ZD S1 0.2/1.5	Z S 1 0.4/3.0	ZD S1 0.4/4.5	ZD S1 0.8/7.5	ZD S1 1.5/13
	Power(kw)	0.8 (0.2/0.8)	1.5 (0.2/1.5)	3 (0.4/3.0)	4.5 (0.4/4.5)	7.5 (0.8/7.5)	13 (1.5/13)
	Rotation Speed(r/min)	1380				1400
	Current(A)	2.2 (0.72/2.4)	4.3 0.72/4.3)	7.6 (1.25/7.6)	11 (2.4/11)	18 (2.4/18)	30 (5.2/30)
Travel Motor	Type	ZDY 111-4		ZDY 112-4
	Power(kw)	0.2	0.2	0.4	0.4	0.8	0.8*2
	Rotation Speed(r/min)	1380
	Current(A)	0.72	0.72	1.25	1.25	2.4	2.4
Power		AC 380V, 50HZ, 3 Phase

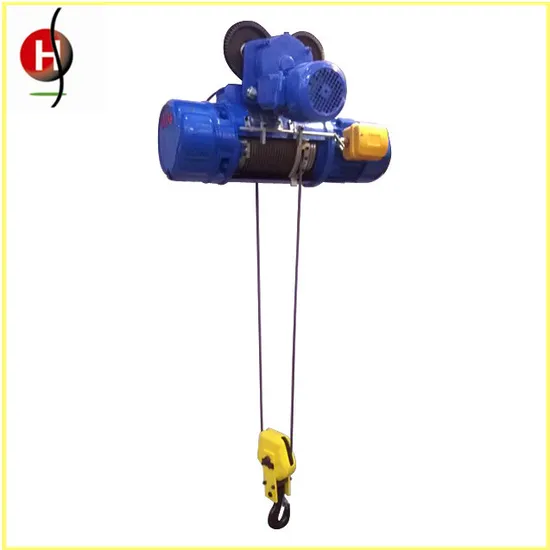

Picture:
Application: Model CD1,MD1 Electric Wire Hoist is a small-sized lifting equipment, which can be mounted on single beam, bridge, gantry and arm cranes.
With slight modification, it can also be used as a winch.
It is widely used in factories, mines, harbours, warehouses, cargo storage areas and shops, essential in raising working efficiency and improving working conditions.
Model CD1 electric hoist has only normal speed, which can satisfy normal application.
Model MD1 Electric Hoist provides two speeds: normal speed and low speed. At a low speed, it can do precise loading and unloading, mounding of sand box, maintenance of machine tools, etc. Note:
The standard lifting height is 6,9,12,18,24 and 30 meters.
The lifting speed can be single speed or double speed, even multi-speed with frequency inverters.
The suitable rail for the low-headroom hoist is H-type rail, and I-type rail is also available.
The recommended rope reeving of this kind of hoist is 2/1, 4/2 or 4/1.
The normal travelling speed is 20m/min, and 12.5,16,25,32m/min by request.
Package:
Standard strong PLY wooden case
Strong wooden pallet.
